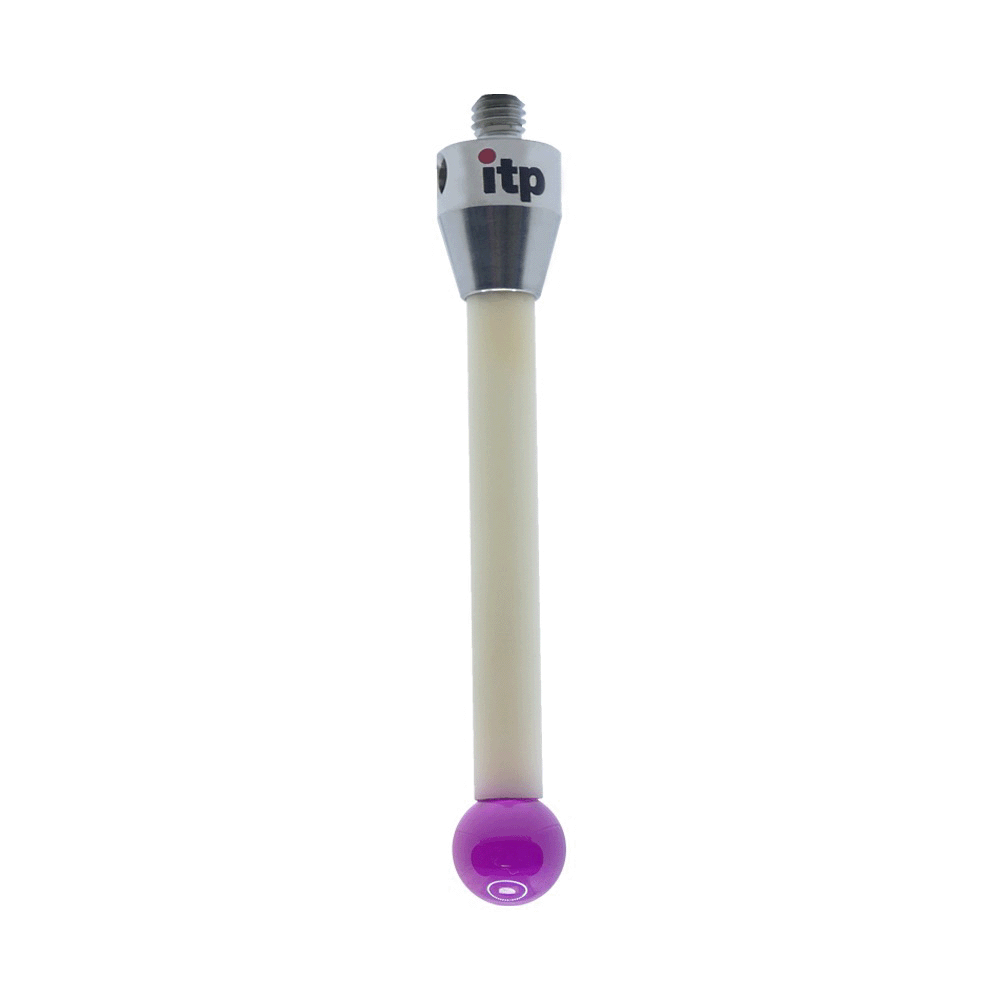

ITP Straight Styli - Type A - Ruby Ball - M5 Thread x 65.5mm Overall Length - TKM510011065
| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 10 |
| Overall Length (L) | 65.5 |
| Shank Diameter (DG) | 11 |
| Measuring Length (ML) | 52.5 |
Learn more about Klarna
ITP Straight Styli – Type A Ruby Ball with M5 thread is a precision probing tool designed for production metrology. Built for reliable contact measurements in CMM and automated inspection setups, it combines a lightweight ceramic stem with a hard ruby ball to deliver stable, repeatable results.
- Product Code: TKM510011065
- Ball Tip: Ruby ball, Ø10.0 mm for durable, accurate contact
- Stem Material: High-performance ceramic stem for low weight and high rigidity
- Thread: M5 thread to fit standard stylus holders
- Overall Length: 65.5 mm (Reach 52.5 mm; Shank 11 mm)
- Type: Type A straight stylus
- Customization: Other dimensions available on request via configurator or email
This stylus is ideal for production environments where consistent contact and reduced inertial load matter. The ceramic stem minimizes deflection under measurement forces, while the ruby ball offers exceptional hardness and wear resistance to extend tip life. With its M5 connection, it integrates smoothly into existing probing systems, enabling quick setup and reliable performance across repetitive inspection tasks on machined parts and fixtures.

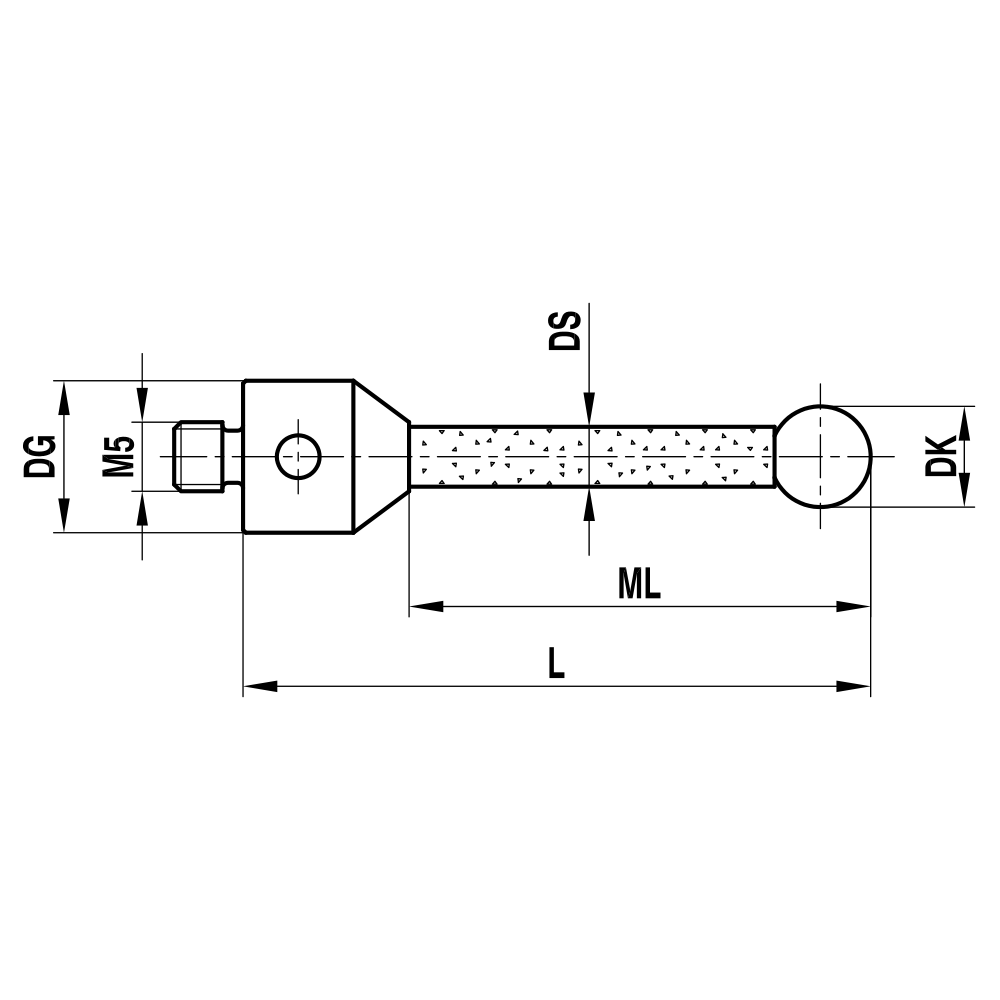

| Styli Type | Type A |
| Thread Size | M5 |
| Ball Diameter (DK) | 10 |
| Overall Length (L) | 65.5 |
| Shank Diameter (DG) | 11 |
| Measuring Length (ML) | 52.5 |
| Neck Diameter (DS) | 6 |
| Stem Material | ceramic |
| Base Material | titanium |
| Prob Ball Material | ruby |
