ITP Adaptor Plate Extension titanium Stem Material - M5 Thread x 106.5mm Overall Length - TVM501820060

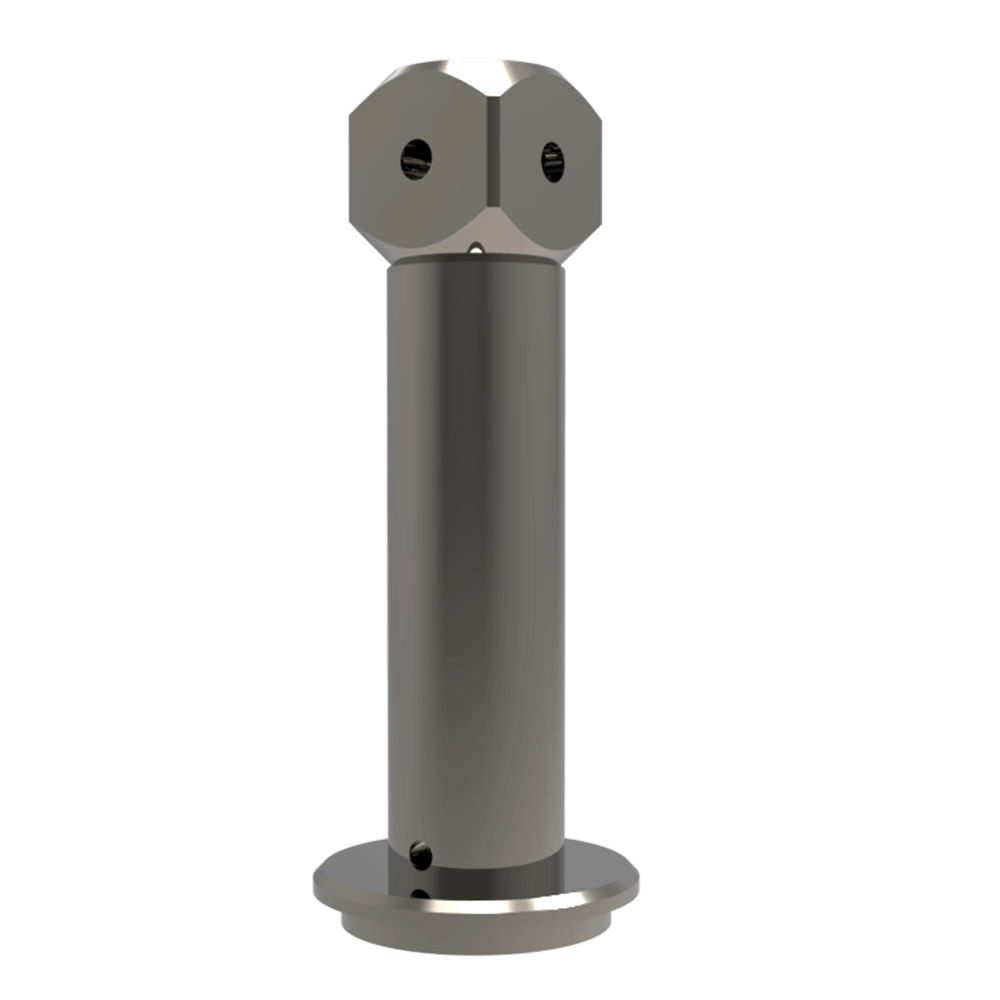

The ITP Adaptor Plate Extension titanium Stem (TVM501820060) is a precision extension for metrology setups, built as a compact titanium cube with an integrated mounting plate. Designed for CMM probes and stylus assemblies, it extends reach while minimizing connection points for improved stability.

• Material & Construction: Entirely titanium (stem and base) for high rigidity with low mass, supporting stable measurements during long sessions.
• Thread: M5 internal thread for secure integration with compatible plates and accessories.

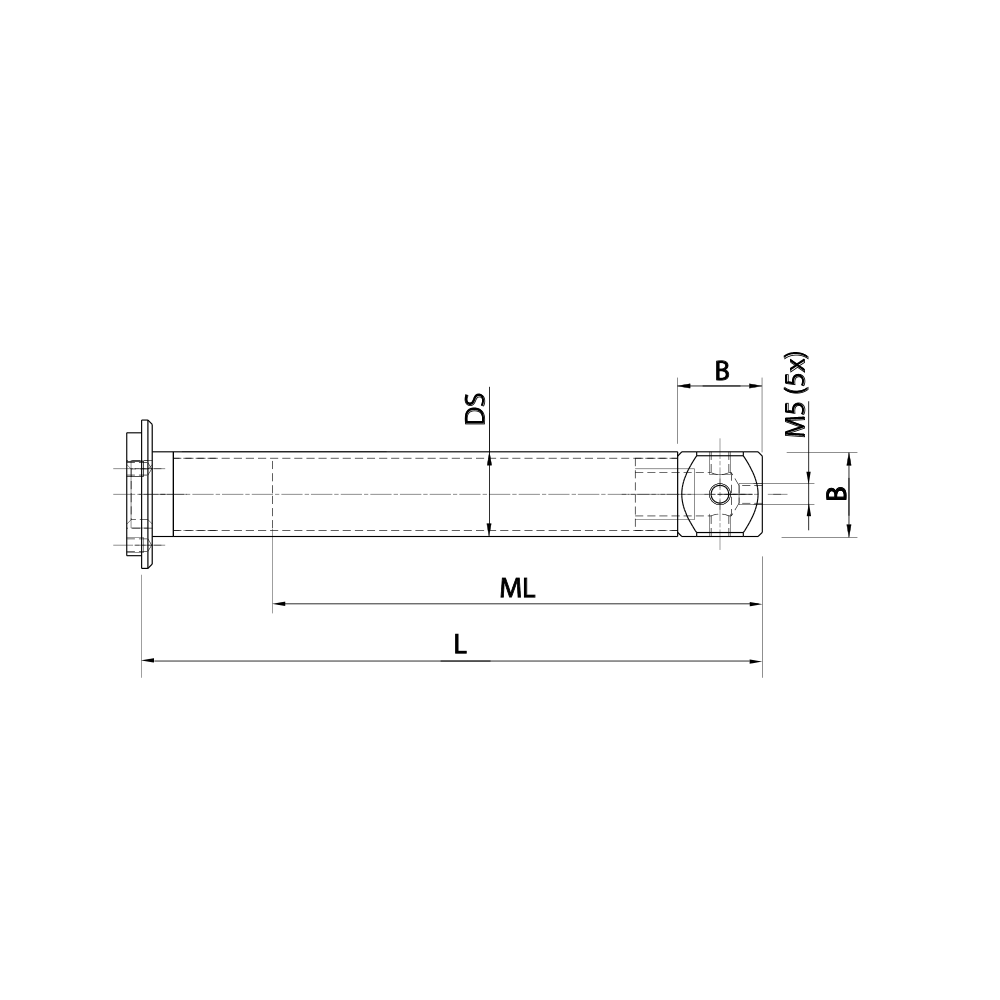

• Overall Length: 106.5 mm, providing extended reach without significantly increasing weight.
• Dimensions: Neck diameter 18 mm and base diameter 20 mm, with a weight of approximately 86.2 g.
• Mounting Configuration: Combines an extension with a titanium cube and includes a mounting plate that can be mounted directly onto a removable disc to avoid an extra connection point.
• Applications: Optimized for extending measuring plates or stylus setups in CMM and CNC probing tasks where stability and precision are critical.

This adaptor plate extension delivers enhanced measurement stability by eliminating additional connection points, thanks to its direct-mount design onto removable discs. The full titanium construction ensures rigidity without adding unnecessary weight, helping maintain accuracy across extended reach applications. It’s an ideal choice for precision QC tasks in industries such as aerospace, automotive, and electronics where reliable, repeatable probing is essential.
