Widin Carbide Square End Mill For Mold & Die - 2 Flute - 0.8mm

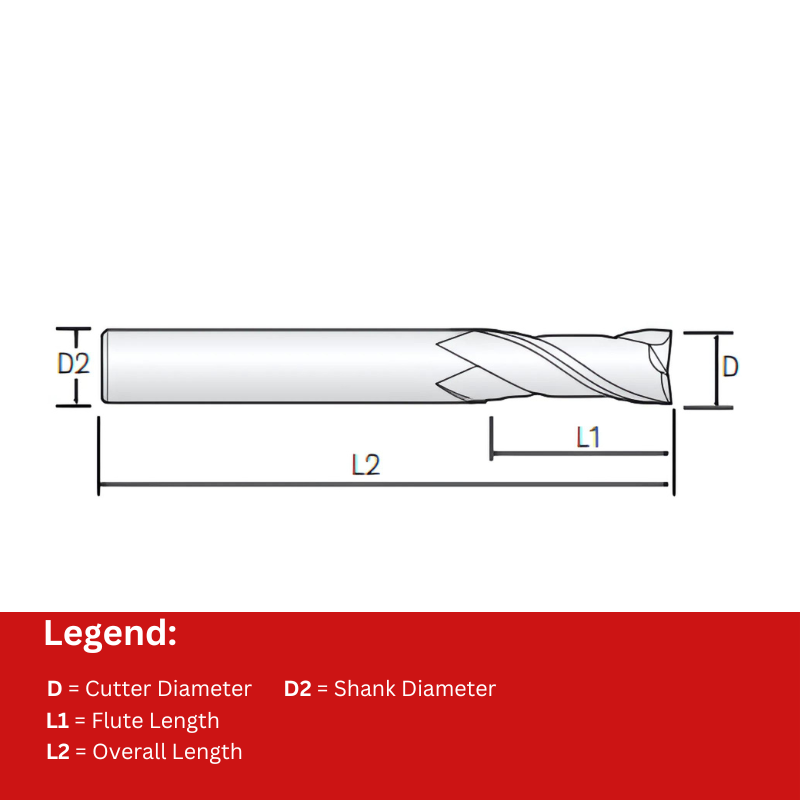

| Cutter Diameter | 0.8 |
| Number of Flutes | 2 |
| Flute Length | 1.6 |
| Overall Length | 40 |
| Shank Diameter | 3 |
Learn more about Klarna

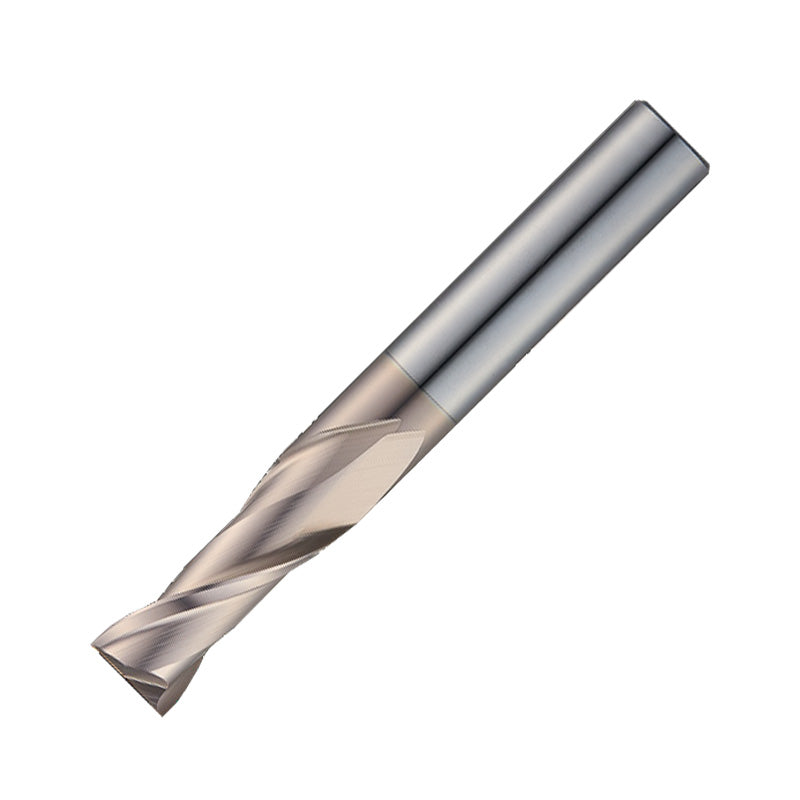

The Widin Carbide Square End Mill (0.8 mm) is a two-flute cutting tool designed for mold and die work. It features a square end and a W-coated carbide body to deliver clean pockets and precise bottoms on steel and alloy workpieces.
- W coating for longer life and stable machining: The W coating enhances wear resistance and heat tolerance, helping you achieve longer tool life and steadier performance during demanding cuts.
- Gash tooth design to prevent flute chipping: Optimized tooth geometry reduces chipping on the flutes, improving durability and delivering consistent finishes over repetitive cycles.
- Wide diameter range with tight tolerance: Cutting diameter range of 0.1m - 20.0mm with a tolerance of +0/-0.012mm provides precise, repeatable results across diverse mold and die applications.
Designed for mold and die machining below 55 HRc and suitable for pre-hardened steel, alloy steel, and carbon steel, this end mill helps you complete complex cavities and fine features with confidence. Its combination of geometry, coating, and material quality supports reliable performance, reduced downtime, and dependable results in production and prototyping environments.
| Cutter Diameter | 0.8 |
| Number of Flutes | 2 |
| Flute Length | 1.6 |
| Overall Length | 40 |
| Shank Diameter | 3 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Square End Mill For Mold & Die - 2 Flute (WE502S3)
View full collection →You are viewing UE502008S3. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| UE502001S3 | 0.1 | 2 | 0.2 | 40 | 3 | £42.98 | 5 days | |
| UE502002S3 | 0.2 | 2 | 0.4 | 40 | 3 | £29.47 | 5 days | |
| UE502003S3 | 0.3 | 2 | 0.6 | 40 | 3 | £22.23 | 5 days | |
| UE502004S3 | 0.4 | 2 | 0.8 | 40 | 3 | £22.23 | 5 days | |
| UE502006S3 | 0.6 | 2 | 1.2 | 40 | 3 | £20.75 | 5 days | |
| UE502007S3 | 0.7 | 2 | 1.4 | 40 | 3 | £20.75 | 5 days | |
| UE502008S3 Viewing | 0.8 | 2 | 1.6 | 40 | 3 | £20.75 | 5 days | |
| UE502009S3 | 0.9 | 2 | 1.8 | 40 | 3 | £20.75 | 5 days | |
| UE502010S3 | 1 | 2 | 2.5 | 50 | 3 | £17.82 | 5 days | |
| UE502012S3 | 1.2 | 2 | 3 | 50 | 3 | £17.82 | 5 days | |
| UE502020S3 | 2 | 2 | 6 | 50 | 3 | £17.82 | 5 days | |
| UE502025S3 | 2.5 | 2 | 7 | 50 | 3 | £17.82 | 5 days | |
| UE502030S3 | 3 | 2 | 8 | 50 | 3 | £17.82 | 5 days |
