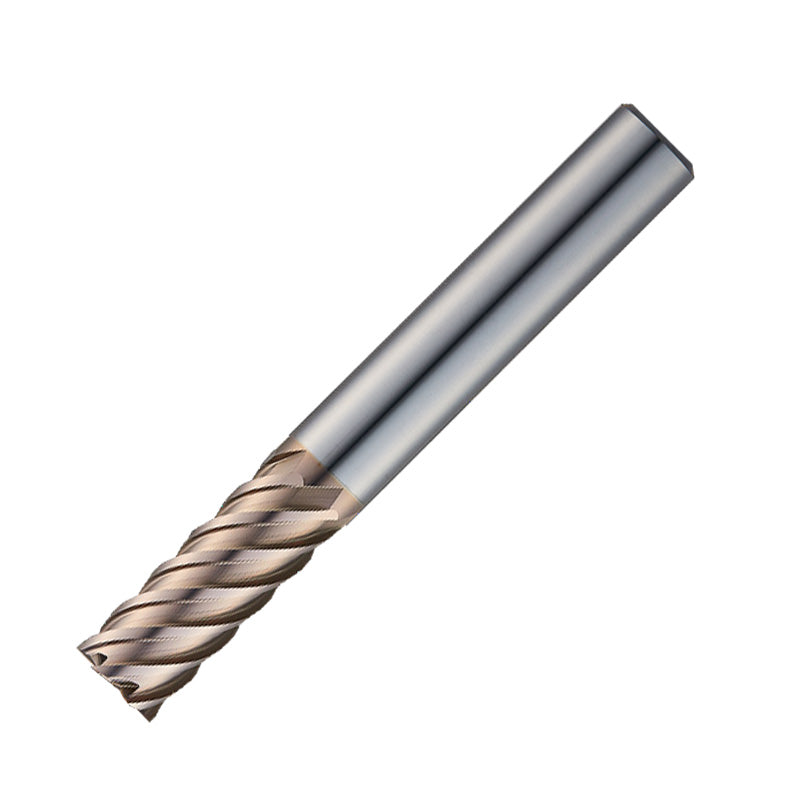

Widin Carbide Square End Mill For Mold & Die - 6 Flute High Helix (45°) - 12mm x60mm x 150mm

Widin Carbide Square End Mill for Mold & Die is a precision cutting tool built for demanding mold and die work. Its 6-flute, high-helix geometry delivers smooth cutting and reliable chip evacuation, helping you achieve clean pockets and accurate contours in challenging steels.

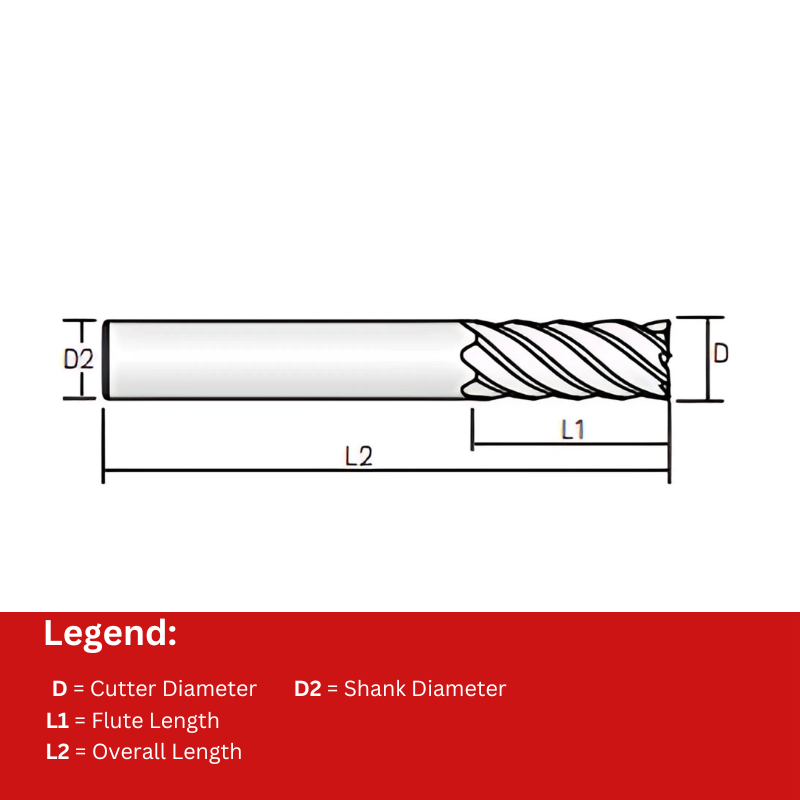

This model features a 12 mm cutting diameter with a 60 mm flute length and a 150 mm overall length, and is available in a range of cutting diameters (6–20 mm) to fit different pocket geometries and applications. It includes a tight diameter tolerance of +0/−0.03 mm to ensure consistent, repeatable results across passes.

• Tight diameter tolerance: Ensures precise, repeatable cuts with a +0/−0.03 mm tolerance, reducing rework and enabling close-pocket machining in molds and dies.
• 6-flute, high-helix geometry: Reduces cutting load for smoother cutting, faster material removal, and improved chip evacuation, supporting clean finishes in demanding materials.
• W-coated carbide for long life: The wear-resistant coating boosts tool life and machining stability, making it well-suited for mold and die work in materials under 55 HRc, including pre-hardened steel, alloy steel, and carbon steel.

With the combination of precise dimensions, robust six-flute design, and durable W-coated carbide, this end mill helps you complete mold and die projects more efficiently. It supports reliable performance across passes, reduces downtime from tool changes, and delivers consistent results on pockets, contours, and profiles in common mold steels.
