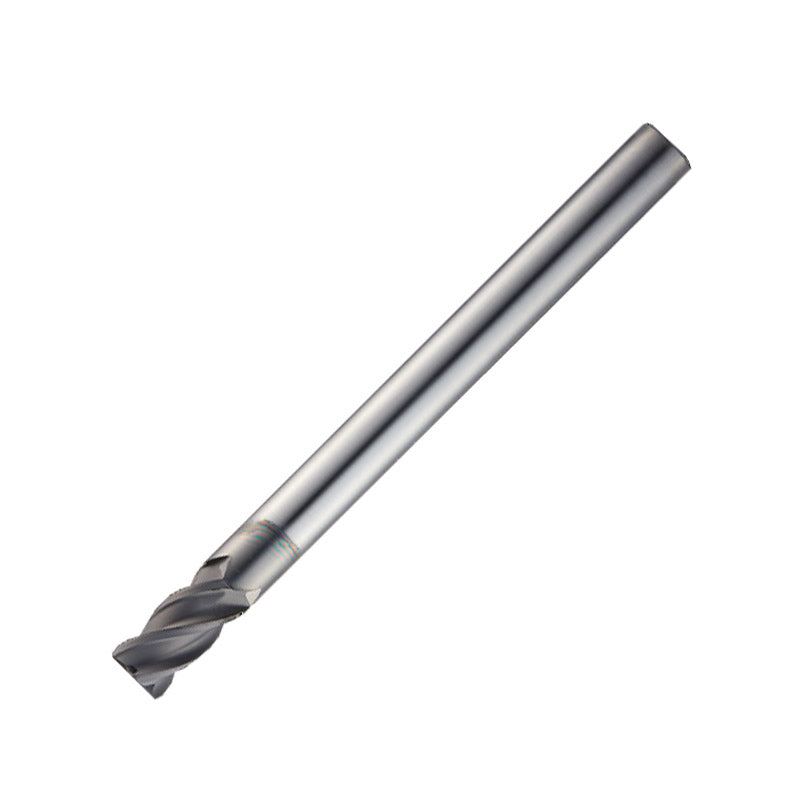

Widin Carbide Corner Radius End Mill For Graphite - 4 Flute - 8mm x 130mm x R1.0
| Cutter Diameter | 8 |
| Number of Flutes | 4 |
| Flute Length | 20 |
| Overall Length | 130 |
| Shank Diameter | 8 |
| Corner Radius | 1 |
Learn more about Klarna
The Widin Carbide Corner Radius End Mill for Graphite (WGR504) is a precision cutting tool designed for efficient graphite machining. Built for engineers, machinists, and shops that work with graphite components, it combines a robust 4-flute design with carbide hardness to deliver clean, reliable cuts.
- Diameter: 8 mm
- Overall length: 130 mm
- Corner radius: R1.0 mm
- Flute count: 4-flute configuration for strong cutting action and effective chip evacuation
- Material: Solid carbide for high hardness, wear resistance, and heat tolerance
- Intended material: Optimized for graphite, suitable for electrodes, seals, and graphite structural components
- Chip evacuation: Efficient chip removal reduces clogging and improves milling stability
This end mill is engineered to maintain precise dimensions and smooth finishes when milling graphite. The corner radius adds edge strength, helping resist wear during aggressive depths of cut, while the 4-flute geometry supports faster material removal and steady surface quality. With its carbide construction, it withstands the heat generated in graphite machining, delivering repeatable results across longer tool life and fewer tool changes in demanding production environments.
| Cutter Diameter | 8 |
| Number of Flutes | 4 |
| Flute Length | 20 |
| Overall Length | 130 |
| Shank Diameter | 8 |
| Corner Radius | 1 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill For Graphite - 4 Flute (WGR504)
View full collection →You are viewing WGR50408010130. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| WGR50404010100 | 4 | 4 | 10 | 100 | 4 | 1 | £74.97 | 5 days | |
| WGR50403003080 | 3 | 4 | 8 | 80 | 4 | 0.3 | £67.25 | 5 days | |
| WGR50403005080 | 3 | 4 | 8 | 80 | 4 | 0.5 | £67.25 | 5 days | |
| WGR50404005100 | 4 | 4 | 10 | 100 | 4 | 0.5 | £74.97 | 5 days | |
| WGR50404005080 | 4 | 4 | 16 | 60 | 4 | 0.5 | £19.50 | 5 days | |
| WGR50404003100 | 4 | 4 | 10 | 100 | 4 | 0.3 | £74.97 | 5 days | |
| WGR50403002080 | 3 | 4 | 8 | 80 | 4 | 0.2 | £67.25 | 5 days | |
| WGR50406005060 | 6 | 4 | 15 | 60 | 6 | 0.5 | £81.81 | 5 days | |
| WGR50406003110 | 6 | 4 | 15 | 110 | 6 | 0.3 | £94.70 | 5 days | |
| WGR50406005110 | 6 | 4 | 15 | 110 | 6 | 0.5 | £94.70 | 5 days | |
| WGR50406010110 | 6 | 4 | 15 | 110 | 6 | 1 | £94.70 | 5 days | |
| WGR50408005110 | 8 | 4 | 20 | 110 | 8 | 0.5 | £135.34 | 5 days | |
| WGR50408010110 | 8 | 4 | 20 | 110 | 8 | 1 | £135.34 | 5 days | |
| WGR50408005130 | 8 | 4 | 20 | 130 | 8 | 0.5 | £148.70 | 5 days | |
| WGR50408010130 Viewing | 8 | 4 | 20 | 130 | 8 | 1 | £148.70 | 5 days | |
| WGR50410005130 | 10 | 4 | 25 | 130 | 10 | 0.5 | £187.22 | 5 days | |
| WGR50410005150 | 10 | 4 | 25 | 150 | 10 | 0.5 | £211.01 | 5 days | |
| WGR50410010130 | 10 | 4 | 25 | 130 | 10 | 1 | £187.22 | 5 days | |
| WGR50412010130 | 12 | 4 | 30 | 130 | 12 | 1 | £248.93 | 5 days | |
| WGR50410010080 | 10 | 4 | 25 | 75 | 10 | 1 | £170.48 | 5 days | |
| WGR50412005130 | 12 | 4 | 30 | 130 | 12 | 0.5 | £248.93 | 5 days | |
| WGR50410010150 | 10 | 4 | 25 | 150 | 10 | 1 | £211.01 | 5 days | |
| WGR50412005080 | 12 | 4 | 30 | 80 | 12 | 0.5 | £58.75 | 5 days | |
| WGR50412005150 | 12 | 4 | 30 | 150 | 12 | 0.5 | £281.95 | 5 days | |
| WGR50412010150 | 12 | 4 | 30 | 150 | 12 | 1 | £281.95 | 5 days |
