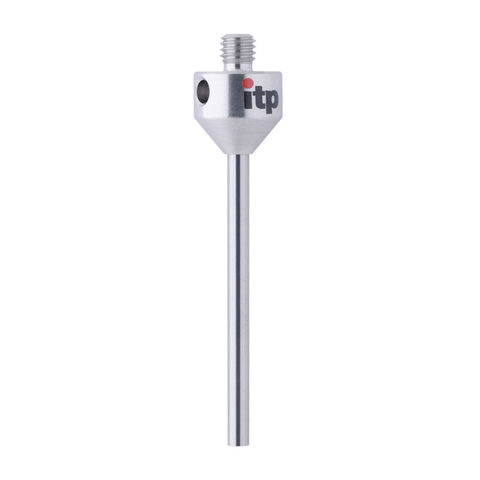

ITP Cylinder Styli carbide Stem Material - M5 Thread x 39mm Measuring Length - ZHM503012050

ITP Cylinder Styli with a carbide stem are precision probing tips designed for touch-probing situations where a ball tip cannot reliably reach the measurement point. Ideal for scanning tasks that require endpoints of punched holes or other recessed features, this cylinder-shaped probe provides stable, repeatable contact when alignment is critical.

• Material: Carbide stem for high stiffness and wear resistance during repeated probing.
• Thread: M5 thread compatibility for secure mounting in standard probe heads.
• Measuring length: 39 mm to reach deeper features while maintaining rigidity and control.
• Geometry: Cylindrical probe profile optimized for targeted contact; designed to facilitate accurate touch-probing on challenging features.
• Ideal use case: Particularly suited for obtaining endpoints of punched holes in metal sheets during scanning and data collection.
• Alignment note: For best results, align the probe axis as perpendicular as possible to the feature’s axis to ensure reliable measurements.
• Product code: ZHM503012050

This cylindrical probing solution offers a practical alternative when ball-tip probes can’t reach the desired endpoints. By delivering a consistent contact geometry with a robust carbide stem and standard M5 mounting, it supports precise measurements, dependable scan data, and smooth integration into existing probing workflows.
