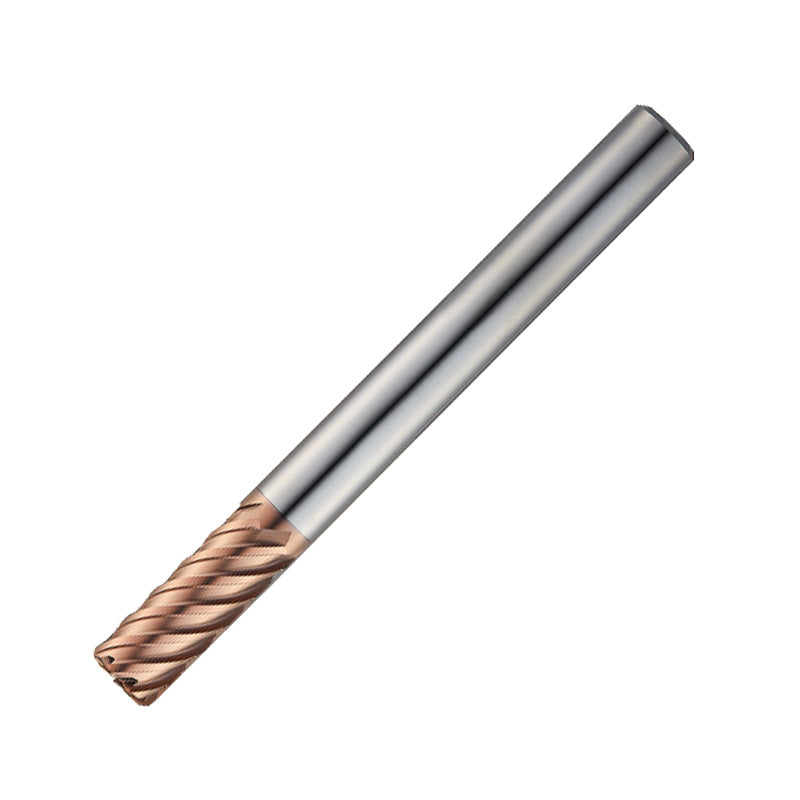

Widin Carbide Corner Radius End Mill - 6 Flute 45° Helix Long Shank - 12mm x R0.5

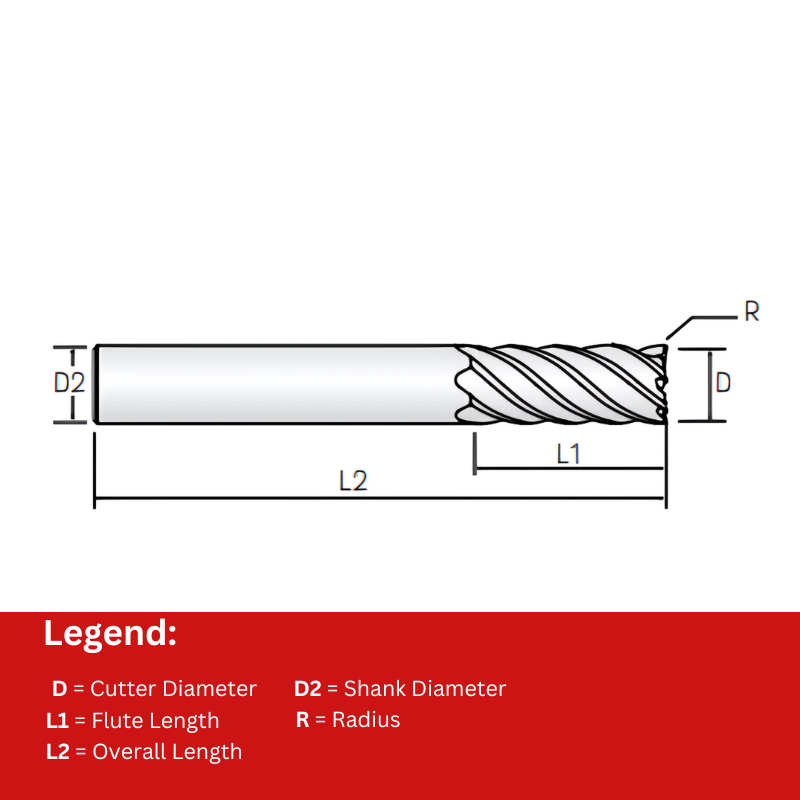

| Cutter Diameter | 12 |
| Number of Flutes | 6 |
| Flute Length | 30 |
| Overall Length | 110 |
| Shank Diameter | 12 |
| Corner Radius | 0.5 |
Learn more about Klarna
Widin Carbide Corner Radius End Mill is a precision milling tool designed for machinists who tackle hard materials and intricate geometries. With a 12 mm diameter, a precise corner radius of R0.5 mm, and a 6-flute configuration, it delivers reliable performance in demanding applications and features a long shank for extended reach.
- Diameter: 12 mm
- Corner Radius: R0.5 mm
- Flutes: 6-flute design for efficient chip evacuation and rigidity
- Helix Angle: 45° for smooth cutting and good surface finish
- Length/Shank: Long shank provides extended reach for deep grooves and hard-to-access areas
- Material: Carbide construction for wear resistance and durability
- Applications: Ideal for high-hardness workpieces, pocketing, and precise corner radii in complex geometries
Designed to handle tough materials and demanding pocketing tasks, this end mill maintains stability across multiple passes and produces clean radii in tight corners. The extended reach enables deeper grooves and access to recessed features, reducing the need for tool changes and improving overall machining efficiency.
| Cutter Diameter | 12 |
| Number of Flutes | 6 |
| Flute Length | 30 |
| Overall Length | 110 |
| Shank Diameter | 12 |
| Corner Radius | 0.5 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill - 6 Flute 45° Helix Long Shank (ZR736)
View full collection →You are viewing ESR73612005. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| ESR73606005 | 6 | 6 | 15 | 90 | 6 | 0.5 | £50.00 | 5 days | |
| ESR73606010 | 6 | 6 | 15 | 90 | 6 | 1 | £50.00 | 5 days | |
| ESR73608005 | 8 | 6 | 20 | 100 | 8 | 0.5 | £63.35 | 5 days | |
| ESR73610005 | 10 | 6 | 25 | 100 | 10 | 0.5 | £88.10 | 5 days | |
| ESR73608010 | 8 | 6 | 20 | 100 | 8 | 1 | £63.35 | 5 days | |
| ESR73612005 Viewing | 12 | 6 | 30 | 110 | 12 | 0.5 | £125.20 | 5 days | |
| ESR73610010 | 10 | 6 | 25 | 100 | 10 | 1 | £88.10 | 5 days | |
| ESR73612010 | 12 | 6 | 30 | 110 | 12 | 1 | £50.08 | In Stock |
