Asimeto Plug Gauges - UN (UNC/UNF/UNEF) - 695 Series
From
£55.65
View Products
£55.65

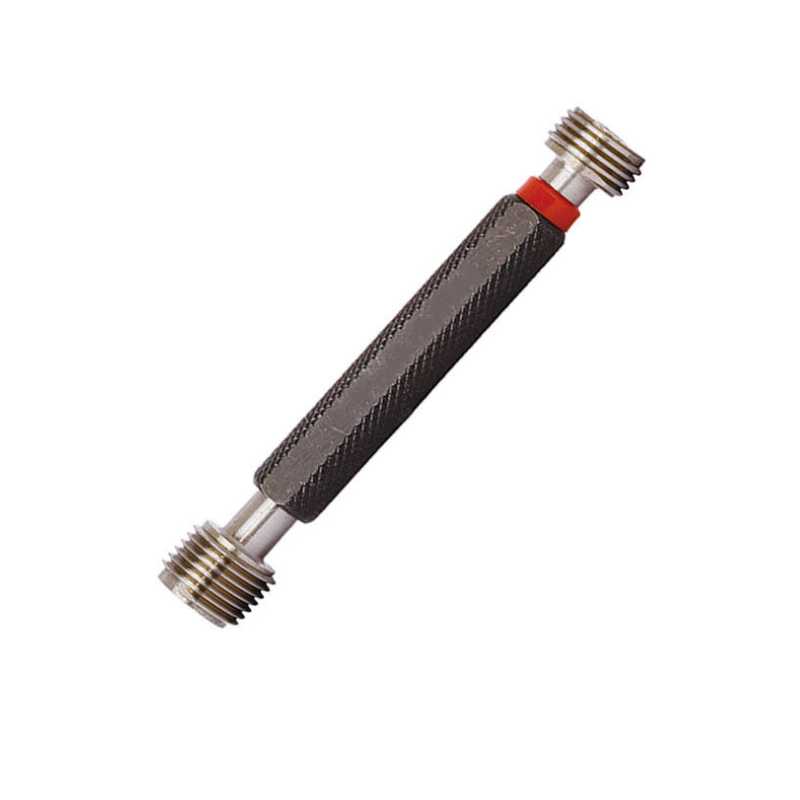

The Asimeto Plug Gauges - UN (UNC/UNF/UNEF) from the 695 Series are precision instruments designed for measuring the internal threads of threaded holes. These plug gauges are specifically engineered to conform to the Unified National Coarse (UNC), Unified National Fine (UNF), and Unified National Extra Fine (UNEF) thread standards. Each plug gauge in the series is meticulously crafted with high accuracy and tight tolerances to ensure reliable and consistent measurements. The gauges feature a tapered design with a handle for easy insertion into threaded holes, allowing users to quickly and accurately assess the fit and quality of the threads.
| Product SKU | Thread Form | Size | Pitch | Gauge Type | Thread Direction | Tolerance | Price | Stock | |
|---|---|---|---|---|---|---|---|---|---|
| 695-01-2 | UNF | No. 0 | 80 | Plug Gauge (D/E) | Right Hand | 2B | £70.61 | 4 | View product |
| 695-02-2 | UNC | No. 1 | 64 | Plug Gauge (D/E) | Right Hand | 2B | £70.61 | 7 | View product |
| 695-03-2 | UNF | No. 1 | 72 | Plug Gauge (D/E) | Right Hand | 2B | £70.61 | 2 | View product |
| 695-04-2 | UNC | No. 2 | 56 | Plug Gauge (D/E) | Right Hand | 2B | £70.61 | 2 | View product |
| 695-05-2 | UNF | No. 2 | 64 | Plug Gauge (D/E) | Right Hand | 2B | £70.61 | 4 | View product |
| 695-06-2 | UNC | No. 3 | 48 | Plug Gauge (D/E) | Right Hand | 2B | £65.39 | 0 | View product |
| 695-07-2 | UNF | No. 3 | 56 | Plug Gauge (D/E) | Right Hand | 2B | £65.39 | 2 | View product |
| 695-08-2 | UNC | No. 4 | 40 | Plug Gauge (D/E) | Right Hand | 2B | £65.39 | 3 | View product |
| 695-09-2 | UNF | No. 4 | 48 | Plug Gauge (D/E) | Right Hand | 2B | £65.39 | 6 | View product |
| 695-10-2 | UNC | No. 5 | 40 | Plug Gauge (D/E) | Right Hand | 2B | £61.57 | 0 | View product |
| 695-11-2 | UNF | No. 5 | 44 | Plug Gauge (D/E) | Right Hand | 2B | £61.57 | 2 | View product |
| 695-12-2 | UNC | No. 6 | 32 | Plug Gauge (D/E) | Right Hand | 2B | £61.57 | 0 | View product |
| 695-13-2 | UNF | No. 6 | 40 | Plug Gauge (D/E) | Right Hand | 2B | £61.57 | 7 | View product |
| 695-14-2 | UNC | No. 8 | 32 | Plug Gauge (D/E) | Right Hand | 2B | £61.57 | 0 | View product |
| 695-15-2 | UNF | No. 8 | 36 | Plug Gauge (D/E) | Right Hand | 2B | £61.57 | 0 | View product |
| 695-16-2 | UNC | No. 10 | 24 | Plug Gauge (D/E) | Right Hand | 2B | £61.57 | 0 | View product |
| 695-17-2 | UNF | No. 10 | 32 | Plug Gauge (D/E) | Right Hand | 2B | £61.57 | 2 | View product |
| 695-18-2 | UNC | No. 12 | 24 | Plug Gauge (D/E) | Right Hand | 2B | £61.57 | 5 | View product |
| 695-19-2 | UNF | No. 12 | 28 | Plug Gauge (D/E) | Right Hand | 2B | £61.57 | 0 | View product |
| 695-20-2 | UNC | 1/4 | 20 | Plug Gauge (D/E) | Right Hand | 2B | £55.65 | 1 | View product |
| 695-21-2 | UNF | 1/4 | 28 | Plug Gauge (D/E) | Right Hand | 2B | £55.65 | 4 | View product |
| 695-22-2 | UNEF | 1/4 | 32 | Plug Gauge (D/E) | Right Hand | 2B | £73.74 | 3 | View product |
| 695-23-2 | UNC | 5/16 | 18 | Plug Gauge (D/E) | Right Hand | 2B | £55.65 | 3 | View product |
| 695-24-2 | UNF | 5/16 | 24 | Plug Gauge (D/E) | Right Hand | 2B | £55.65 | 0 | View product |
| 695-25-2 | UNEF | 5/16 | 32 | Plug Gauge (D/E) | Right Hand | 2B | £73.74 | 5 | View product |
| 695-26-2 | UNC | 3/8 | 16 | Plug Gauge (D/E) | Right Hand | 2B | £58.78 | 2 | View product |
| 695-27-2 | UNF | 3/8 | 24 | Plug Gauge (D/E) | Right Hand | 2B | £58.78 | 0 | View product |
| 695-28-2 | UNEF | 3/8 | 32 | Plug Gauge (D/E) | Right Hand | 2B | £76.87 | 0 | View product |
| 695-29-2 | UNC | 7/16 | 14 | Plug Gauge (D/E) | Right Hand | 2B | £58.78 | 0 | View product |
| 695-30-2 | UNF | 7/16 | 20 | Plug Gauge (D/E) | Right Hand | 2B | £58.78 | 0 | View product |
| 695-31-2 | UNEF | 7/16 | 28 | Plug Gauge (D/E) | Right Hand | 2B | £76.87 | 2 | View product |
| 695-32-2 | UNC | 1/2 | 13 | Plug Gauge (D/E) | Right Hand | 2B | £61.57 | 2 | View product |
| 695-33-2 | UNF | 1/2 | 20 | Plug Gauge (D/E) | Right Hand | 2B | £61.57 | 6 | View product |
| 695-34-2 | UNEF | 1/2 | 28 | Plug Gauge (D/E) | Right Hand | 2B | £80.70 | 2 | View product |
| 695-35-2 | UNC | 9/16 | 12 | Plug Gauge (D/E) | Right Hand | 2B | £73.74 | 9 | View product |
| 695-36-2 | UNF | 9/16 | 18 | Plug Gauge (D/E) | Right Hand | 2B | £73.74 | 4 | View product |
| 695-37-2 | UNEF | 9/16 | 24 | Plug Gauge (D/E) | Right Hand | 2B | £85.91 | 3 | View product |
| 695-38-2 | UNC | 5/8 | 11 | Plug Gauge (D/E) | Right Hand | 2B | £73.74 | 0 | View product |
| 695-39-2 | UNF | 5/8 | 18 | Plug Gauge (D/E) | Right Hand | 2B | £73.74 | 0 | View product |
| 695-40-2 | UNEF | 5/8 | 24 | Plug Gauge (D/E) | Right Hand | 2B | £85.91 | 4 | View product |
| 695-41-2 | UNC | 3/4 | 10 | Plug Gauge (D/E) | Right Hand | 2B | £78.26 | 0 | View product |
| 695-42-2 | UNF | 3/4 | 16 | Plug Gauge (D/E) | Right Hand | 2B | £78.26 | 0 | View product |
| 695-43-2 | UNEF | 3/4 | 20 | Plug Gauge (D/E) | Right Hand | 2B | £97.39 | 0 | View product |
| 695-44-2 | UNC | 7/8 | 9 | Plug Gauge (D/E) | Right Hand | 2B | £82.09 | 0 | View product |
| 695-45-2 | UNF | 7/8 | 14 | Plug Gauge (D/E) | Right Hand | 2B | £82.09 | 2 | View product |
| 695-46-2 | UNEF | 7/8 | 20 | Plug Gauge (D/E) | Right Hand | 2B | £102.61 | 6 | View product |
| 695-47-2 | UNC | 1 | 8 | Plug Gauge (D/E) | Right Hand | 2B | £87.65 | 0 | View product |
| 695-48-2 | UNF | 1 | 12 | Plug Gauge (D/E) | Right Hand | 2B | £87.65 | 1 | View product |
