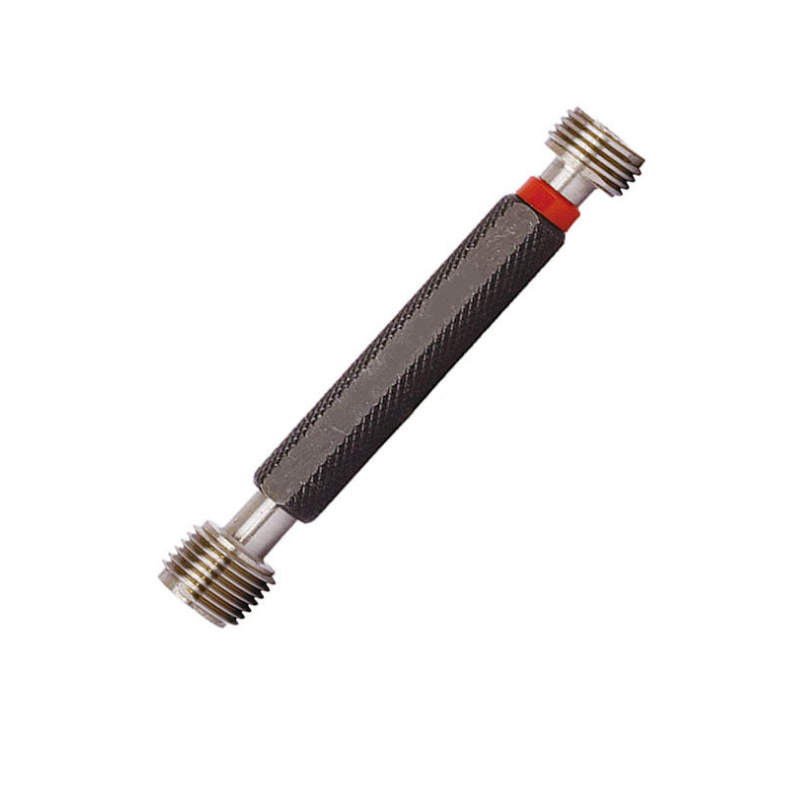

Asimeto Plug Thread Gauge (D/E) - UNC - Right Hand - 2B - No. 5 x 40
| Thread Form | UNC |
| Size | No. 5 |
| Pitch | 40 |
| Gauge Type | Plug Gauge (D/E) |
Learn more about Klarna
Compatible certification
The ones our customers buy most.
Description
The Asimeto Plug Thread Gauge (D/E) – UNC is a precision tool designed for machinists, quality control technicians, and shop floors that require quick, accurate verification of internal threads. Part of the 695 Series, this gauge ensures UNC, UNF, and UNEF hole threads meet exact specifications with reliability you can trust.
- Thread standards: Precisely configured to UNC, UNF, and UNEF thread series for versatile internal-thread inspection.
- Size and tolerance: No. 5 x 40 with 2B tolerance class, delivering consistent, repeatable measurements.
- Right-hand configuration: Specifically engineered for right-hand threaded holes to reflect standard machining practices.
- Tapered design with handle: Easy insertion into threaded holes and smooth alignment for accurate assessment.
- Construction: Robust, high-precision gauge designed to maintain tight tolerances through repeated use.
Use this plug gauge to quickly confirm thread quality, identify out-of-tolerance holes, and validate manufacturing processes. Its tapered body and handle enable fast go/no-go checks, helping you reduce rework and ensure consistent fastener performance. Ideal for production environments, inspection labs, and any operation that relies on precise internal threads, the Asimeto 695 Series gauge supports reliable QC and repeatable results across batches.
Part Numbers
- Protool Part Number
- 695-10-2
- Brand
- Asimeto
- Category
- Gauge
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Asimeto Plug Gauges - UN (UNC/UNF/UNEF) - 695 Series
View full collection →You are viewing 695-10-2. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Price | Stock | Order |
|---|---|---|---|---|---|
| 695-01-2 | No. 0 | 80 | £79.43 | In Stock | |
| 695-02-2 | No. 1 | 64 | £79.43 | In Stock | |
| 695-03-2 | No. 1 | 72 | £71.60 | In Stock | |
| 695-04-2 | No. 2 | 56 | £71.60 | 4 weeks | |
| 695-05-2 | No. 2 | 64 | £79.43 | In Stock | |
| 695-06-2 | No. 3 | 48 | £73.58 | 4 weeks | |
| 695-07-2 | No. 3 | 56 | £73.58 | In Stock | |
| 695-08-2 | No. 4 | 40 | £66.51 | 4 weeks | |
| 695-09-2 | No. 4 | 48 | £73.58 | In Stock | |
| 695-10-2 Viewing | No. 5 | 40 | £62.60 | 4 weeks | |
| 695-11-2 | No. 5 | 44 | £69.26 | In Stock | |
| 695-12-2 | No. 6 | 32 | £62.60 | In Stock | |
| 695-13-2 | No. 6 | 40 | £69.26 | In Stock | |
| 695-14-2 | No. 8 | 32 | £62.60 | 4 weeks | |
| 695-15-2 | No. 8 | 36 | £69.26 | 4 weeks | |
| 695-16-2 | No. 10 | 24 | £69.26 | 4 weeks | |
| 695-17-2 | No. 10 | 32 | £62.60 | In Stock | |
| 695-18-2 | No. 12 | 24 | £69.26 | In Stock | |
| 695-19-2 | No. 12 | 28 | £69.26 | 4 weeks | |
| 695-20-2 | 1/4 | 20 | £56.34 | 4 weeks | |
| 695-21-2 | 1/4 | 28 | £56.34 | In Stock | |
| 695-22-2 | 1/4 | 32 | £82.94 | 4 weeks | |
| 695-23-2 | 5/16 | 18 | £56.34 | 4 weeks | |
| 695-24-2 | 5/16 | 24 | £56.34 | 4 weeks | |
| 695-25-2 | 5/16 | 32 | £82.94 | In Stock | |
| 695-26-2 | 3/8 | 16 | £59.85 | In Stock | |
| 695-27-2 | 3/8 | 24 | £59.85 | 4 weeks | |
| 695-28-2 | 3/8 | 32 | £86.49 | 4 weeks | |
| 695-29-2 | 7/16 | 14 | £59.85 | 4 weeks | |
| 695-30-2 | 7/16 | 20 | £59.85 | 4 weeks | |
| 695-31-2 | 7/16 | 28 | £77.85 | In Stock | |
| 695-32-2 | 1/2 | 13 | £62.60 | In Stock | |
| 695-33-2 | 1/2 | 20 | £62.60 | In Stock | |
| 695-34-2 | 1/2 | 28 | £90.77 | 4 weeks | |
| 695-35-2 | 9/16 | 12 | £82.94 | In Stock | |
| 695-36-2 | 9/16 | 18 | £74.75 | In Stock | |
| 695-37-2 | 9/16 | 24 | £96.66 | In Stock | |
| 695-38-2 | 5/8 | 11 | £82.94 | 4 weeks | |
| 695-39-2 | 5/8 | 18 | £74.75 | 4 weeks | |
| 695-40-2 | 5/8 | 24 | £96.66 | In Stock | |
| 695-41-2 | 3/4 | 10 | £79.43 | 4 weeks | |
| 695-42-2 | 3/4 | 16 | £79.43 | 4 weeks | |
| 695-43-2 | 3/4 | 20 | £98.60 | 4 weeks | |
| 695-44-2 | 7/8 | 9 | £83.34 | 4 weeks | |
| 695-45-2 | 7/8 | 14 | £83.34 | 4 weeks | |
| 695-46-2 | 7/8 | 20 | £115.43 | In Stock | |
| 695-47-2 | 1 | 8 | £88.83 | 4 weeks | |
| 695-48-2 | 1 | 12 | £98.60 | 4 weeks |
