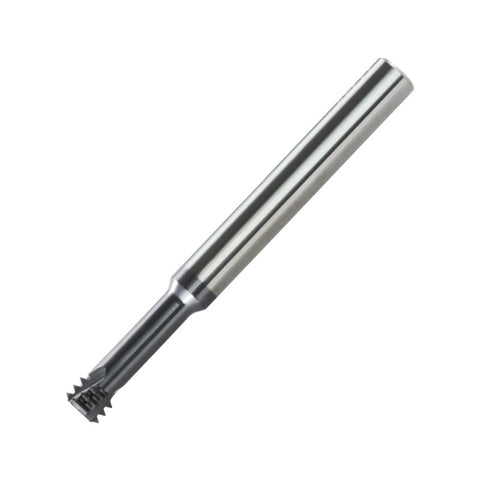

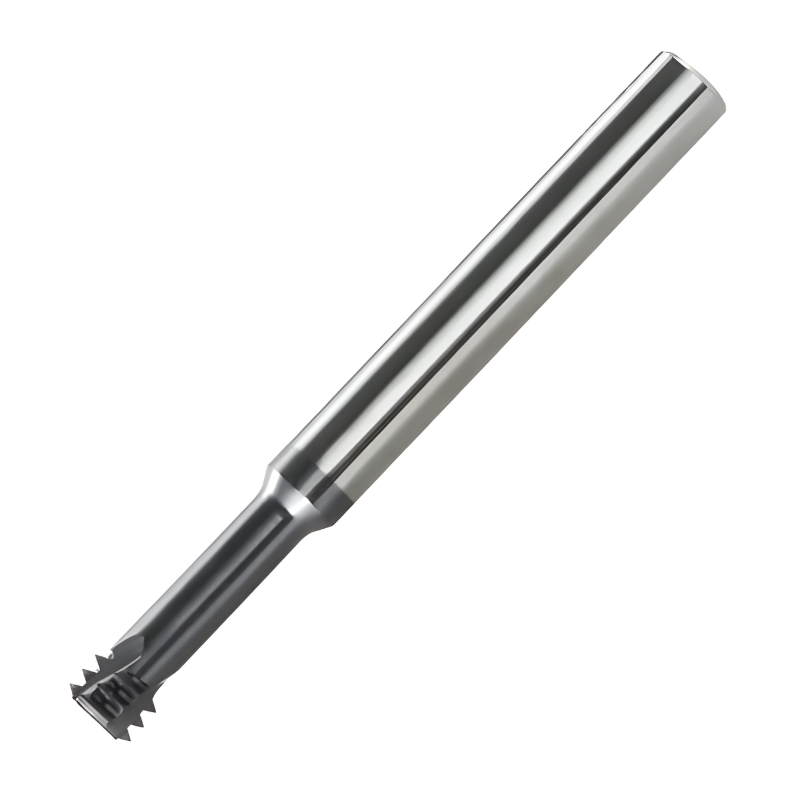

Carmex Thread Mills Carbide Mini Type - G (55 Degree) BSF BSP - G1/8 x 28 - MT7
Carmex | Authorised UK Distributor
Carmex Carbide Thread Mills

G55° BSW,BSP Mini Type (MTS)

Carbide grade:MT7 Sub-Micron grade with Titanium Aluminium Nitride multi-layer coating (ISO K10-K20). To be run at medium to high cutting speeds. General purpose for all materials. Working in high cutting speed. Short machining time. Low cutting forces thanks to the short profile. No broken taps. Machining of hardened materials up to 45 HRc. Advantages Enables machining in deep holes. Same tool can produce a wide range of threads and pitches. Same tool can produce both external and internal threads. Coolant through the flutes is very effective for deep holes. Spiral flutes allow smooth cutting action. Shorter machining time due to multi (3 to 5) flutes. Longer tool life due to special triple coating.

Starting from
£127.23
inc. VAT
In this range
4
products
In stock now
1
ready to dispatch
Browse all 4 products

Click any SKU to view full product details, specifications and datasheets.

Product SKU Size Pitch Flute Length Reach Shank Diameter Overall Length Price Stock Order
MTS08078C1928WMT7 G1/8 28 2.72 19.5 8 64 £127.23 5 days
MTS1010D3019WMT7 G1/4 G3/8 19 4.01 30 10 73 £164.67 5 days
MTS1212D3714WMT7 G1/2 G7/8 14 5.44 37 12 84 £203.94 5 days
MTS1616D4411WMT7 N/A 11 6.93 44 16 105 £254.83 In Stock
