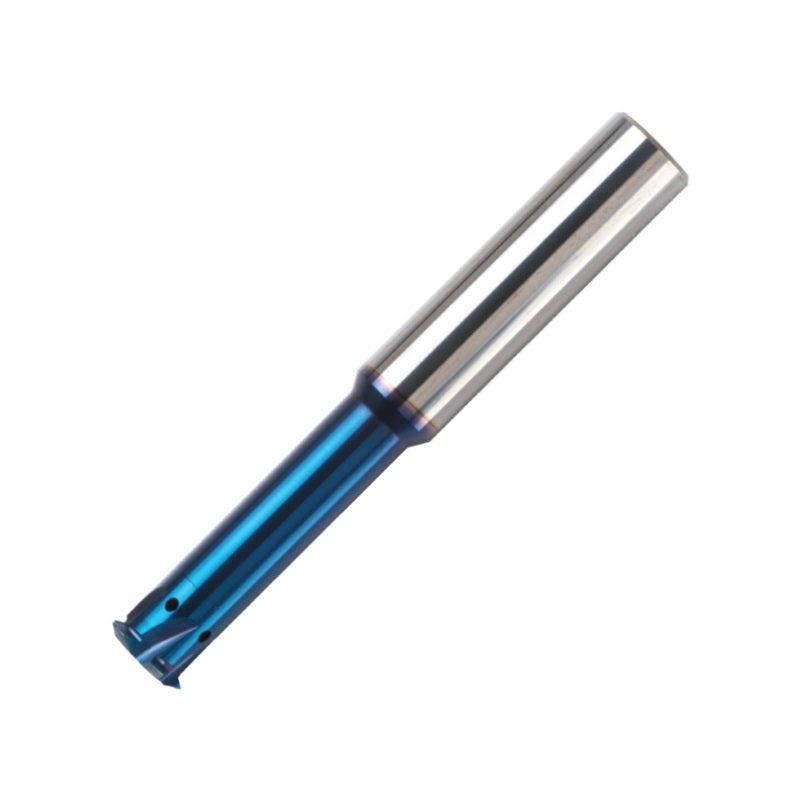

Carmex Carbide Thread Mills
Partial Profile 60° With Internal Coolant For Internal & External Threads (MTI)
This product line offers partial-profile thread mills that improve on the basic MTI partial-profile range, by adding an internal coolant (through the flutes). This prevents chip build-up, which improves the performance, and extends the lifespan of the tool. The tools of this product line support both Internal and External threads. It supports pitches as small as 0.5 mm (Internal) / 0.4 mm (External), is capable of cutting threads up to 50 mm deep. Only 60° profiles are supported. Multi (4-5) flutes with a MT8 sub-micron grade with advanced PVD triple coating (ISO K10-K20). Extremely high heat resistance for maximum performance; Smooth cutting operation. General purpose for all materials.
Browse all 9 products
Click any SKU to view full product details, specifications and datasheets.
| Product SKU | Pitch | Flute Length | Reach | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|
| MTI0605D20A60MT8 | 0.4-0.8 (64-28) ** | Flute Length | 20 | 58 | £95.44 | In Stock |
|
| MTI0808D28A60MT8 | 0.4-0.8 (64-28) ** | Flute Length | 28 | 8 | £127.22 | 5 days |
|
| MTI0808D30A60MT8 | 0.8-1.75 (32-14) ** | Flute Length | 30 | 64 | £127.22 | 5 days |
|
| MTI1010D35A60MT8 | 0.8-1.75 (32-14) ** | Flute Length | 35 | 73 | £164.62 | 5 days |
|
| MTI1212E38A60MT8 | 0.4-0.8 (64-28) ** | Flute Length | 38 | 84 | £203.92 | In Stock |
|
| MTI1212E39A60MT8 | 0.8-1.75 (32-14) ** | Flute Length | 39 | 84 | £203.92 | In Stock |
|
| MTI1212E40A60MT8 | 1.75-3.0 (15-8) ** | Flute Length | 40 | 84 | £203.92 | 5 days |
|
| MTI1614E45A60MT8 | 1.75-3.0 (15-8) ** | Flute Length | 45 | 101 | £254.82 | In Stock |
|
| MTI1616E50A60MT8 | 1.75-3.0 (15-8) ** | Flute Length | 50 | 101 | £254.82 | 5 days |
|
