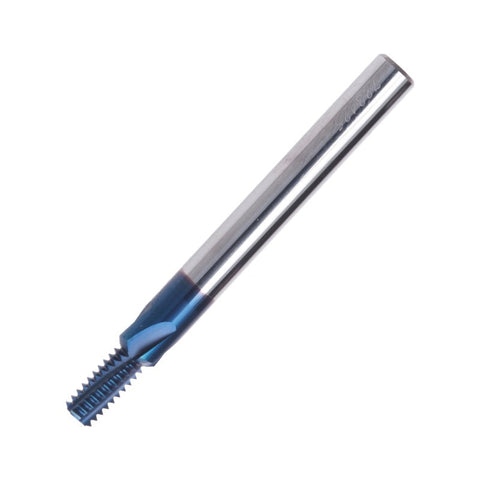

Carmex Carbide Thread Mills
UN (UNC, UNF, UNEF) - For Hard Materials Up To 62HRC (MTH)
Carmex stands at the forefront of innovation, offering a range of solid carbide mill thread tools tailored for machining a diverse array of materials. These tools exhibit remarkable versatility, excelling in tasks such as threading hardened steels and cast iron up to 62 HRc, handling high-temperature alloys, titanium alloys, and super alloys like Hastelloy, Inconel, and Nickel Base Alloys. What sets Carmex apart is its multifunctional approach, as the same tool effortlessly handles thread milling and chamfering, significantly reducing machining time. With an increased cutting diameter that enhances rigidity and stability, combined with a high-wear and heat-resistant coating, these tools are well-equipped for demanding applications. Their ultra-fine grade is dedicated to hardened materials, ensuring precision and process security by producing short chips. This not only reduces cycle times but also boosts productivity. Offering a thread length of up to 2xD, Carmex tools are the ultimate solution for the Die and Mold industry, allowing for high cutting speeds, shorter machining times, and low cutting forces thanks to their compact profiles.
Browse all 13 products
Click any SKU to view full product details, specifications and datasheets.
| Product SKU | Size | Pitch | Flute Length | Reach | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|

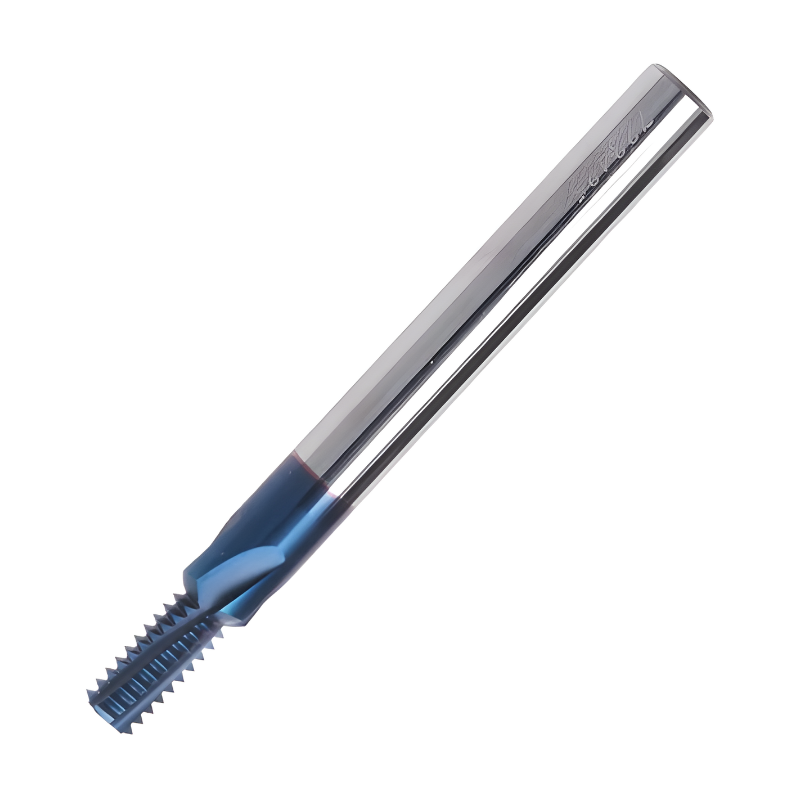

| MTH06025C640UNMT11 | No. 5 No. 6 | 40 | 6 | 6 | 58 | £129.17 | 5 days |
|
| MTH06026C532UNMT11 | No. 6 | 32 | 6.5 | 6.5 | 58 | £129.17 | 5 days |
|
| MTH06032C732UNMT11 | No. 8 | 32 | 8.1 | 8.1 | 58 | £129.17 | 5 days |
|
| MTH06038C932UNMT11 | No. 10 No. 12 | 32 | 9.7 | 9.7 | 58 | £129.17 | 5 days |
|
| MTH06048C1220UNMT11 | 1/4 | 20 | 12.1 | 12.1 | 58 | £129.17 | 5 days |
|
| MTH08052D1128UNMT11 | 1/4 | 28 | 11.3 | 11.3 | 64 | £172.00 | 5 days |
|
| MTH08057C1418UNMT11 | 5/16-11/16 | 18 | 14.8 | 14.8 | 64 | £172.00 | 5 days |
|
| MTH08066D1424UNMT11 | 5/16-11/16 | 24 | 14.3 | 14.3 | 64 | £172.00 | 5 days |
|
| MTH10074C1616UNMT11 | 3/8 3/4 | 16 | 16.7 | 16.7 | 73 | £198.53 | 5 days |
|
| MTH10085D2014UNMT11 | 7/16 7/8 | 14 | 20.9 | 20.9 | 73 | £198.53 | 5 days |
|
| MTH12092D2120UNMT11 | 7/16 1/2 3/4 1 | 20 | 21 | 21 | 84 | £248.34 | 5 days |
|
| MTH12094D2213UNMT11 | 1/2 | 12 | 22.5 | 22.5 | 84 | £248.34 | 5 days |
|
| MTH12096D2028UNMT11 | 7/16 1/2 | 28 | 20.4 | 20.4 | 84 | £248.34 | 5 days |
|
No products match your filters.
