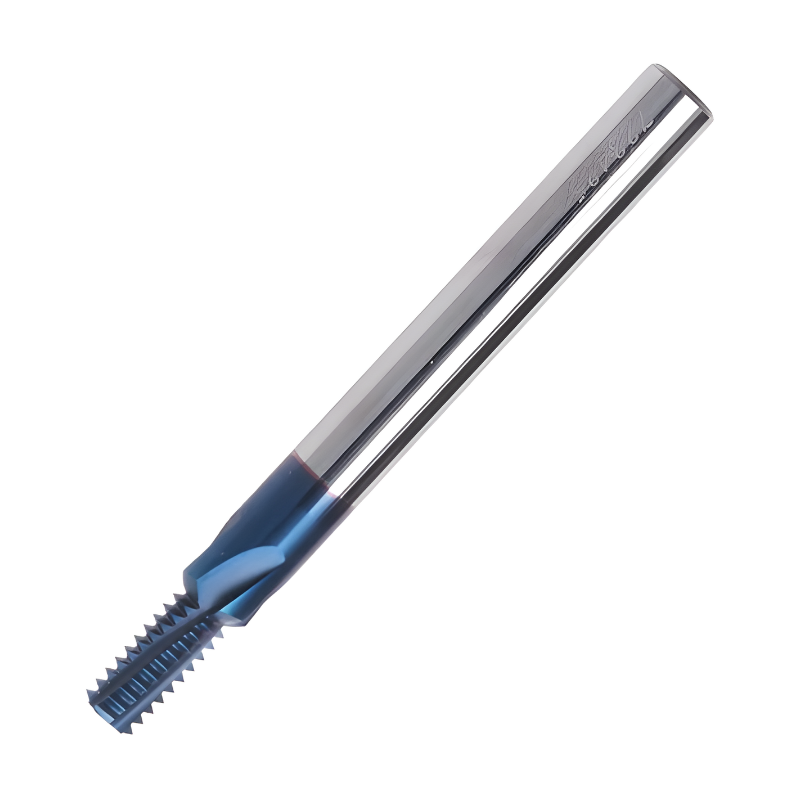

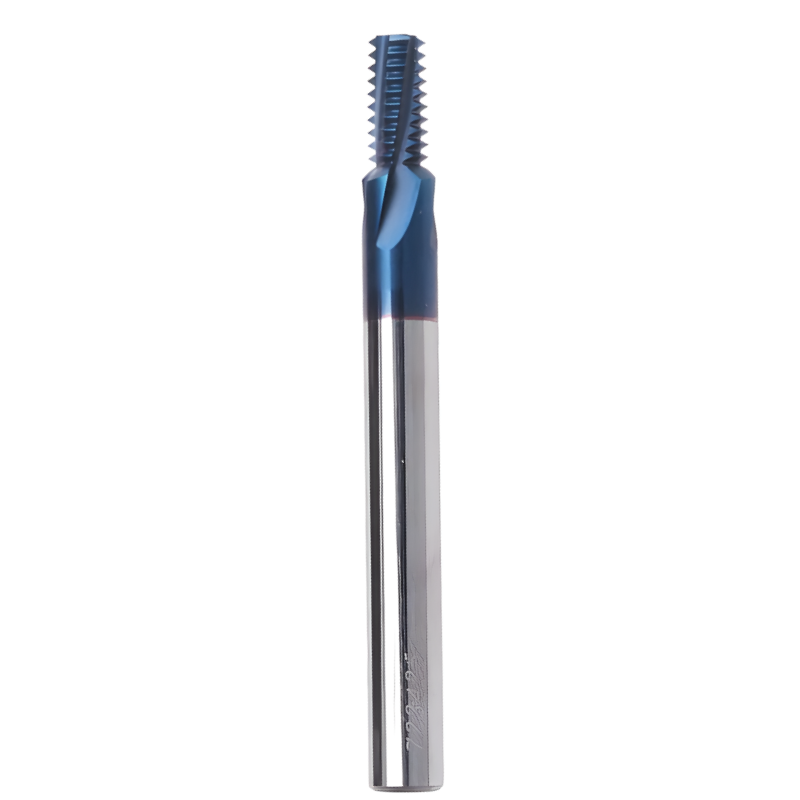

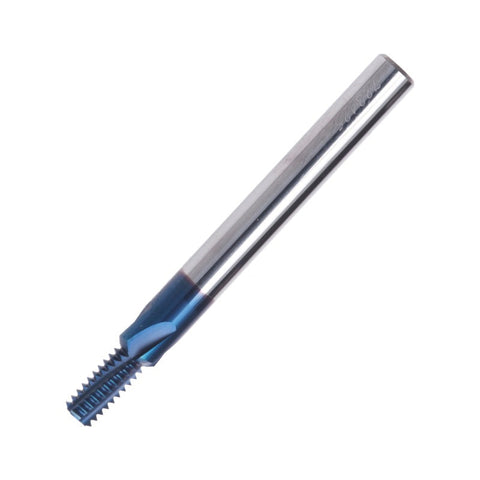

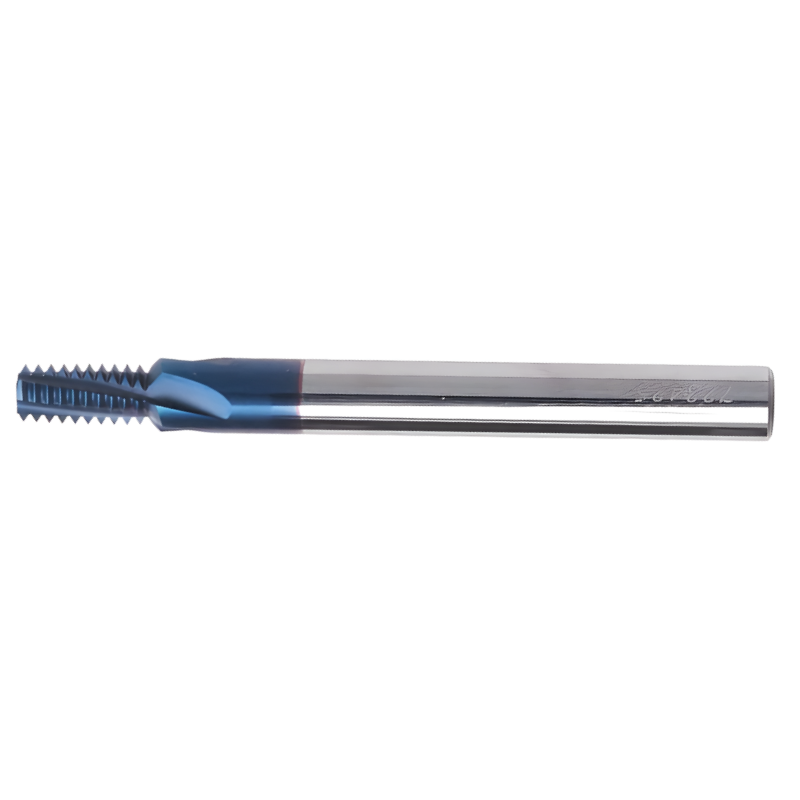

Carmex Thread Mills Carbide - Hard Type - UN (UNC UNF UNEF UNS) - No. 6 x 32 - MT11

Carmex Thread Mills Carbide – Hard Type is a high-performance solid carbide tool engineered for precise thread milling and chamfering in challenging materials. Designed for die and mold work, it delivers reliable thread forms across multiple standard profiles with efficiency and consistency.

• Shank: MT11
• Thread forms: UN, UNC, UNF, UNEF, UNS
• Size: No. 6 x 32
• Material: Solid carbide with an ultra-fine grade optimized for hardened materials
• Coating: High-wear, heat-resistant coating designed for demanding applications
• Functionality: Thread milling and chamfering in a single toolpath
• Rigidity: Increased cutting diameter to improve rigidity and stability during cutting
• Thread length: Up to 2xD
• Material range: Effective on hardened steels (up to 62 HRc), cast iron, high-temperature alloys, titanium, Hastelloy, Inconel, and nickel-base alloys
• Applications: Particularly suited for the Die and Mold industry
• Chip control: Short chips promote safer, cleaner cutting and easier evacuation

This tool is built to boost productivity by enabling high-speed threading with shorter machining times and lower cutting forces, thanks to its compact profile and robust design. The combination of threading and chamfering capability reduces setup times and tool changes, while the ultra-fine grade and coating endure the wear from hard materials, ensuring predictable performance and long tool life in demanding molds and dies.
