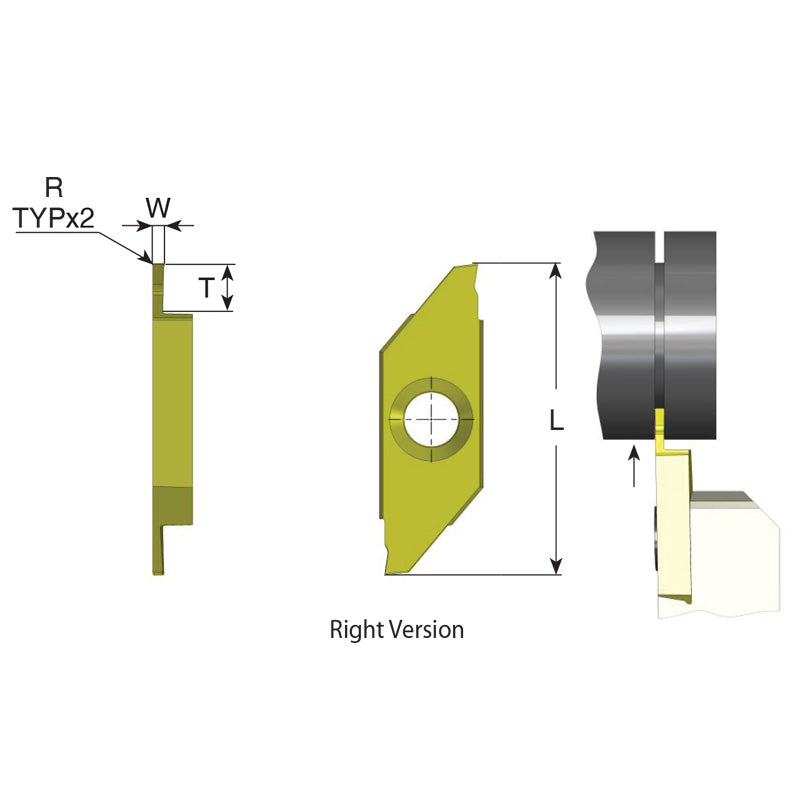

Carmex Polygon Swiss Line Inserts

Grooving & Turning

In many companies, Swiss-type machines are becoming a popular alternative to large lathes and machining centers. As a result, we developed a family of indexable tools designed for use with automatic lathes and Swiss-type machines. These tools enable high-volume, cost-efficient machining of external grooving, back/front turning, profiling, thread turning, parting, and general turning applications.
  • Features:
  • Grounded cutting edges
  • The inserts can be indexed directly on the machine
  • Coated holders provide abrasion resistance

  • Starting from
    £22.42
    inc. VAT
    In this range
    16
    products
    In stock now
    0
    ready to dispatch
    Browse all 16 products

    Click any SKU to view full product details, specifications and datasheets.

    Product SKU Application Hand Max Depth Pitch R Width Parting Angle Feed mm/rev Price Stock Order
    G25RW05T15BLU Grooving & Turning Right Hand 1.5 N/A N/A 0.5 N/A 0.01 - 0.06 £22.42 5 days
    G25RW07T25BLU Grooving & Turning Right Hand 2.5 N/A N/A 0.75 N/A 0.02 - 0.07 £22.42 5 days
    G25RW10T27BLU Grooving & Turning Right Hand 2.7 N/A 0.05 1 N/A 0.02 - 0.09 £22.42 5 days
    G25RW12T30BLU Grooving & Turning Right Hand 3 N/A 0.05 1.2 N/A 0.02 - 0.10 £22.42 5 days
    G25RW15T38BLU Grooving & Turning Right Hand 3.8 N/A 0.05 1.5 N/A 0.02 - 0.12 £22.42 5 days
    G25RW20T38BLU Grooving & Turning Right Hand 3.8 N/A 0.05 2 N/A 0.02 - 0.13 £22.42 5 days
    G25RW25T38BLU Grooving & Turning Right Hand 3.8 N/A 0.05 2.5 N/A 0.02 - 0.14 £22.42 5 days
    G40RW30T80BLU Grooving & Turning Right Hand 8 N/A 0.05 3 N/A 0.02 - 0.14 £34.74 5 days
    G40RW40T80BLU Grooving & Turning Right Hand 8 N/A 0.05 4 N/A 0.02 - 0.14 £34.74 5 days
    G25LW05T15BLU Grooving & Turning Left Hand 1.5 N/A N/A 0.5 N/A 0.01 - 0.06 £22.42 5 days
    G25LW07T25BLU Grooving & Turning Left Hand 2.5 N/A N/A 0.75 N/A 0.02 - 0.07 £22.42 5 days
    G25LW10T27BLU Grooving & Turning Left Hand 2.7 N/A 0.05 1 N/A 0.02 - 0.09 £22.42 5 days
    G25LW12T30BLU Grooving & Turning Left Hand 3 N/A 0.05 1.2 N/A 0.02 - 0.10 £22.42 5 days
    G25LW15T38BLU Grooving & Turning Left Hand 3.8 N/A 0.05 1.5 N/A 0.02 - 0.12 £22.42 5 days
    G25LW20T38BLU Grooving & Turning Left Hand 3.8 N/A 0.05 2 N/A 0.02 - 0.13 £22.42 5 days
    G25LW25T38BLU Grooving & Turning Left Hand 3.8 N/A 0.05 2.5 N/A 0.02 - 0.14 £22.42 5 days
