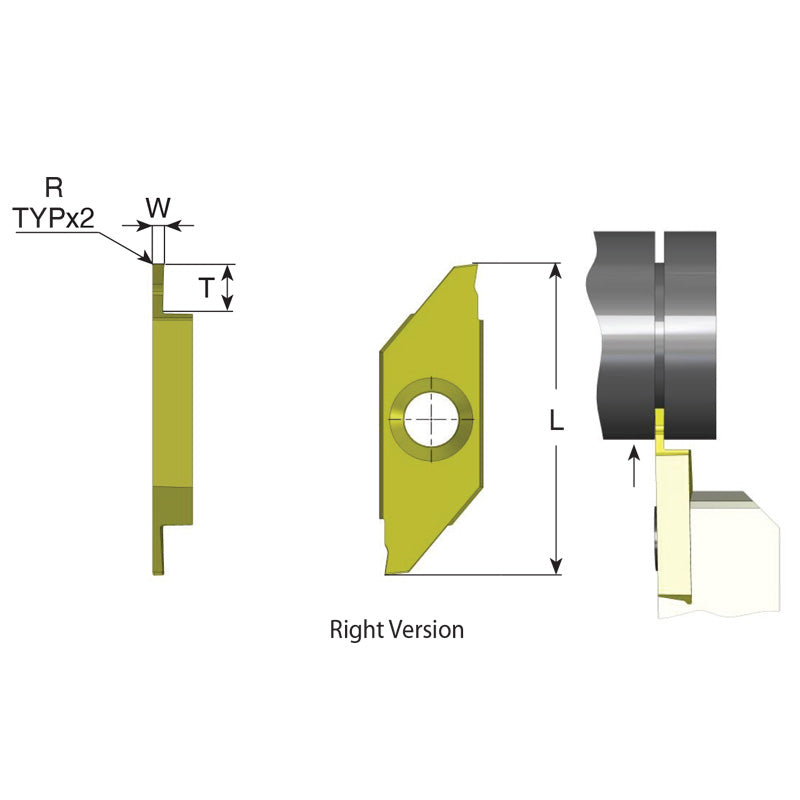

Carmex Polygon Swiss Line Insert - Grooving - Right Hand - GD25RW05T16BLU
Carmex | Authorised UK Distributor
Carmex Polygon Swiss Line Inserts

Grooving

In many companies, Swiss-type machines are becoming a popular alternative to large lathes and machining centers. As a result, we developed a family of indexable tools designed for use with automatic lathes and Swiss-type machines. These tools enable high-volume, cost-efficient machining of external grooving, back/front turning, profiling, thread turning, parting, and general turning applications.
  • Features:
  • Grounded cutting edges
  • The inserts can be indexed directly on the machine
  • Coated holders provide abrasion resistance

    • Starting from
    £23.54
    inc. VAT
    In this range
    22
    products
    In stock now
    2
    ready to dispatch
    Browse all 22 products

    Click any SKU to view full product details, specifications and datasheets.

    Product SKU Application Hand Max Depth Pitch R Width Parting Angle Feed mm/rev Price Stock Order
    GD25RW05T16BLU Grooving Right Hand 1.6 N/A 0 0.57 N/A 0.01-0.06 £23.54 In Stock
    GD25RW06T17BLU Grooving Right Hand 1.7 N/A 0 0.67 N/A 0.01-0.06 £23.54 5 days
    GD25RW07T19BLU Grooving Right Hand 1.9 N/A 0 0.77 N/A 0.02-0.07 £23.54 5 days
    GD25RW08T22BLU Grooving Right Hand 2.2 N/A 0 0.87 N/A 0.02-0.09 £23.54 5 days
    GD25RW09T24BLU Grooving Right Hand 2.4 N/A 0 0.97 N/A 0.02-0.09 £23.54 In Stock
    GD25RW12T31BLU Grooving Right Hand 3.1 N/A 0.05 1.24 N/A 0.02-0.10 £23.54 5 days
    GD25RW14T33BLU Grooving Right Hand 3.3 N/A 0.05 1.44 N/A 0.02-0.12 £23.54 5 days
    GD25RW17T33BLU Grooving Right Hand 3.3 N/A 0.05 1.74 N/A 0.02-0.13 £23.54 5 days
    GD25RW19T39BLU Grooving Right Hand 3.9 N/A 0.05 1.99 N/A 0.02-0.13 £23.54 5 days
    GD25RW22T45BLU Grooving Right Hand 4.5 N/A 0.05 2.29 N/A 0.02-0.14 £23.54 5 days
    GD25RW27T55BLU Grooving Right Hand 5.5 N/A 0.05 2.79 N/A 0.02-0.14 £23.54 5 days
    GD25LW05T16BLU Grooving Left Hand 1.6 N/A 0 0.57 N/A 0.01-0.06 £23.54 5 days
    GD25LW06T17BLU Grooving Left Hand 1.7 N/A 0 0.67 N/A 0.01-0.06 £23.54 5 days
    GD25LW07T19BLU Grooving Left Hand 1.9 N/A 0 0.77 N/A 0.02-0.07 £23.54 5 days
    GD25LW08T22BLU Grooving Left Hand 2.2 N/A 0 0.87 N/A 0.02-0.09 £23.54 5 days
    GD25LW09T24BLU Grooving Left Hand 2.4 N/A 0 0.97 N/A 0.02-0.09 £23.54 5 days
    GD25LW12T31BLU Grooving Left Hand 3.1 N/A 0.05 1.24 N/A 0.02-0.10 £23.54 5 days
    GD25LW14T33BLU Grooving Left Hand 3.3 N/A 0.05 1.44 N/A 0.02-0.12 £23.54 5 days
    GD25LW17T33BLU Grooving Left Hand 3.3 N/A 0.05 1.74 N/A 0.02-0.13 £23.54 5 days
    GD25LW19T39BLU Grooving Left Hand 3.9 N/A 0.05 1.99 N/A 0.02-0.13 £23.54 5 days
    GD25LW22T45BLU Grooving Left Hand 4.5 N/A 0.05 2.29 N/A 0.02-0.14 £23.54 5 days
    GD25LW27T55BLU Grooving Left Hand 5.5 N/A 0.05 2.79 N/A 0.02-0.14 £23.54 5 days
