Carmex Polygon Swiss Line Toolholders
External
In many companies, Swiss-type machines are becoming a popular alternative to large lathes and machining centers. As a result, we developed a family of indexable tools designed for use with automatic lathes and Swiss-type machines. These tools enable high-volume, cost-efficient machining of external grooving, back/front turning, profiling, thread turning, parting, and general turning applications.
Features:
Grounded cutting edges
The inserts can be indexed directly on the machine
Coated holders provide abrasion resistance
Browse all 21 products
Click any SKU to view full product details, specifications and datasheets.
| Product SKU | Hand | Shank Height | Shank Depth | Overall Length | Inserts | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|

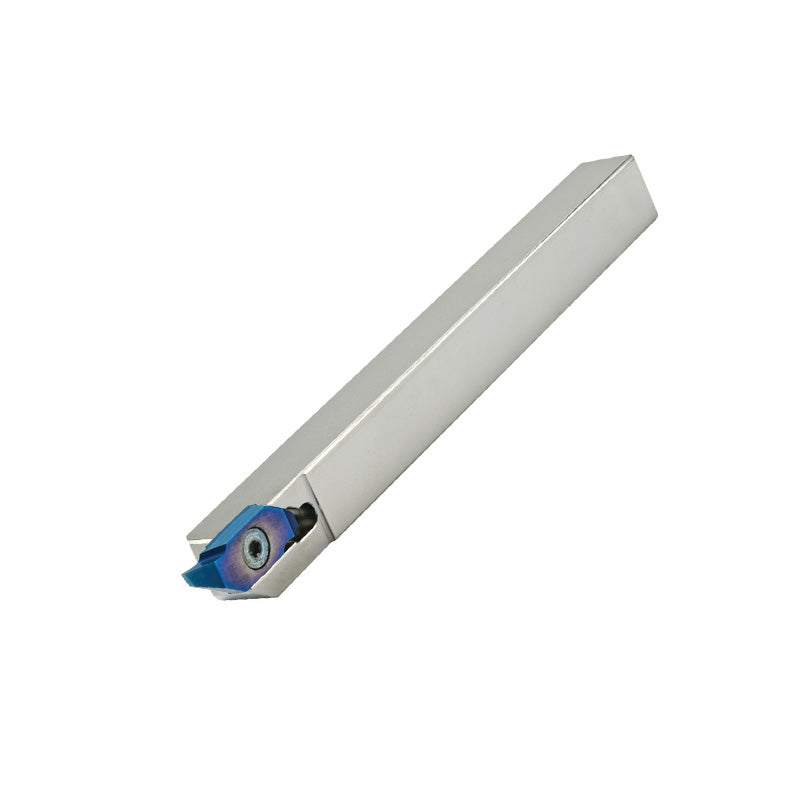

| PGER0808K | Right Hand | 8 | 8 | 125 | G25/G*25 | £74.78 | 5 days |
|
| PGER1010K | Right Hand | 10 | 10 | 125 | G25/G*25 | £74.78 | 5 days |
|
| PGER1212K | Right Hand | 12 | 12 | 125 | G25/G*25 | £74.78 | 5 days |
|
| PGER1616K | Right Hand | 16 | 16 | 125 | G25/G*25 | £76.56 | 5 days |
|
| PGER2020K | Right Hand | 20 | 20 | 125 | G25/G*25 | £76.56 | 5 days |
|
| PGER1010K40 | Right Hand | 10 | 10 | 125 | G40/G*40 | £74.78 | 5 days |
|
| PGER1212K40 | Right Hand | 12 | 12 | 125 | G40/G*40 | £74.78 | 5 days |
|
| PGER1616K40 | Right Hand | 16 | 16 | 125 | G40/G*40 | £74.78 | 5 days |
|
| PGER2020K40 | Right Hand | 20 | 20 | 125 | G40/G*40 | £76.56 | 5 days |
|
| PGER2525M40 | Right Hand | 25 | 25 | 150 | G40/G*40 | £76.56 | 5 days |
|
| PGERB1010K | Right Hand | 10 | 10 | 125 | G25/G*25 | £100.98 | 5 days |
|
| PGERB1212K | Right Hand | 12 | 12 | 125 | G25/G*25 | £100.98 | 5 days |
|
| PGERB1616K | Right Hand | 16 | 16 | 125 | G25/G*25 | £100.98 | 5 days |
|
| PGEL0808K | Left Hand | 8 | 8 | 125 | G25/G*25 | £74.78 | 5 days |
|
| PGEL1010K | Left Hand | 10 | 10 | 125 | G25/G*25 | £74.78 | 5 days |
|
| PGEL1212K | Left Hand | 12 | 12 | 125 | G25/G*25 | £74.78 | 5 days |
|
| PGEL1616K | Left Hand | 16 | 16 | 125 | G25/G*25 | £74.78 | 5 days |
|
| PGEL2020K | Left Hand | 20 | 20 | 125 | G25/G*25 | £76.56 | 5 days |
|
| PGELB1010K | Left Hand | 10 | 10 | 125 | G25/G*25 | £100.98 | 5 days |
|
| PGELB1212K | Left Hand | 12 | 12 | 125 | G25/G*25 | £100.98 | 5 days |
|
| PGELB1616K | Left Hand | 16 | 16 | 125 | G25/G*25 | £100.98 | 5 days |
|
