Carmex
|
Authorised UK Distributor

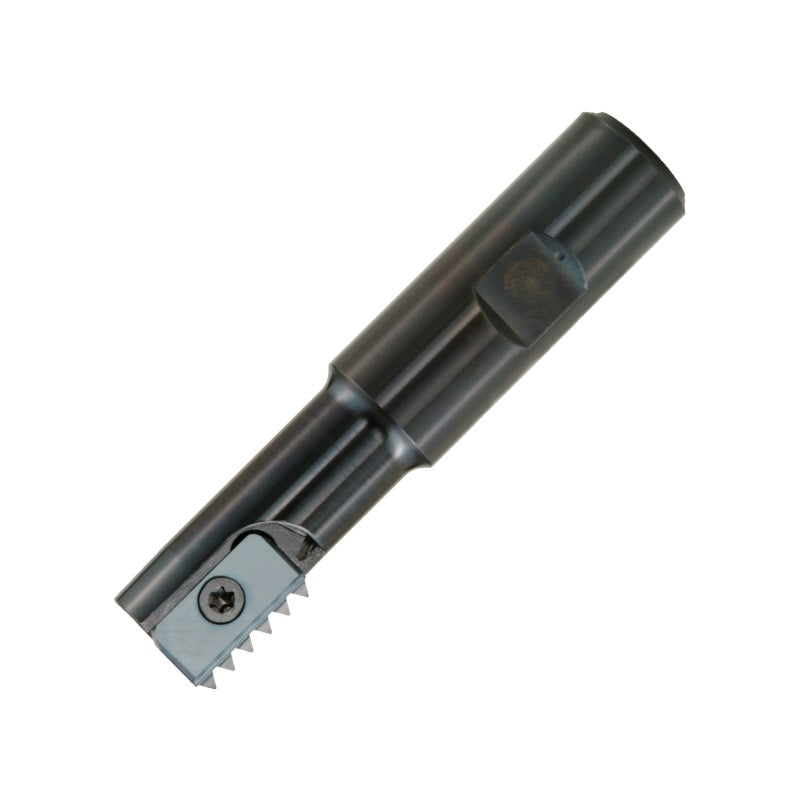

Carmex Single Threading Insert holders
For Carbide External/Internal Threading Inserts
Our industry-leading assortment of indexable thread milling tools can be used with a wide range of applications. These tools were created in order to machine threading jobs on CNC milling machines (by using helical interpolation programs). They allow for improved productivity, thanks to the increased cutting speeds, and multi-tooth carbide inserts. Additionally, they can be used to lower tooling costs – as they are considerably cheaper than comparable taps and dies.
Tool holders for inserts from the Mill-Thread family.
Features:
Internal coolant bore
Notes:
SR0009H12 can’t be used with conical inserts: 12-18 NPT / 12-18 NPTF / 12-19 BSPT
SR0018H21 is incompatible with the following inserts: 21 I 3.5 ISO / 21 I 8 UN / 21 I 7 UN / 21-11 BSPT / 21-11.5 NPT / 21-11.5 NPTF
SR0390H12 is compatible only with these conical inserts: 12-18 NPT / 12-18 NPTF / 12-19 BSPT
Browse all 9 products
Click any SKU to view full product details, specifications and datasheets.
| Product SKU | Insert Size | Shank Diameter | Reach | Overall Length | Minimum Bore Diameter | Neck Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| SR0009H12 | 12 | 20 | 14 | 85 | 9.5 | 7.5 | £91.20 | 5 days |
|
| SR0010H12 | 12 | 20 | 16 | 85 | 9.9 | 7.6 | £100.72 | In Stock |
|
| SR0012F14 | 14 | 20 | 20 | 75 | 12 | 8.9 | £79.68 | 5 days |
|
| SR0014H14 | 14 | 20 | 25 | 85 | 14.5 | 11.2 | £87.62 | 5 days |
|
| SR0017H14 | 14 | 20 | 30 | 85 | 17 | 13.4 | £98.02 | 5 days |
|
| SR0018H21 | 21 | 20 | 30 | 85 | 18 | 14.4 | £121.04 | 5 days |
|
| SR0021H21 | 21 | 20 | 40 | 94 | 21 | 16.5 | £127.84 | 5 days |
|
| SR0029J30 | 30 | 25 | 50 | 110 | 29 | 22.4 | £156.08 | 5 days |
|
| SR0048M40 | 40 | 40 | 78 | 153 | 48 | 35 | £212.46 | 5 days |
|
