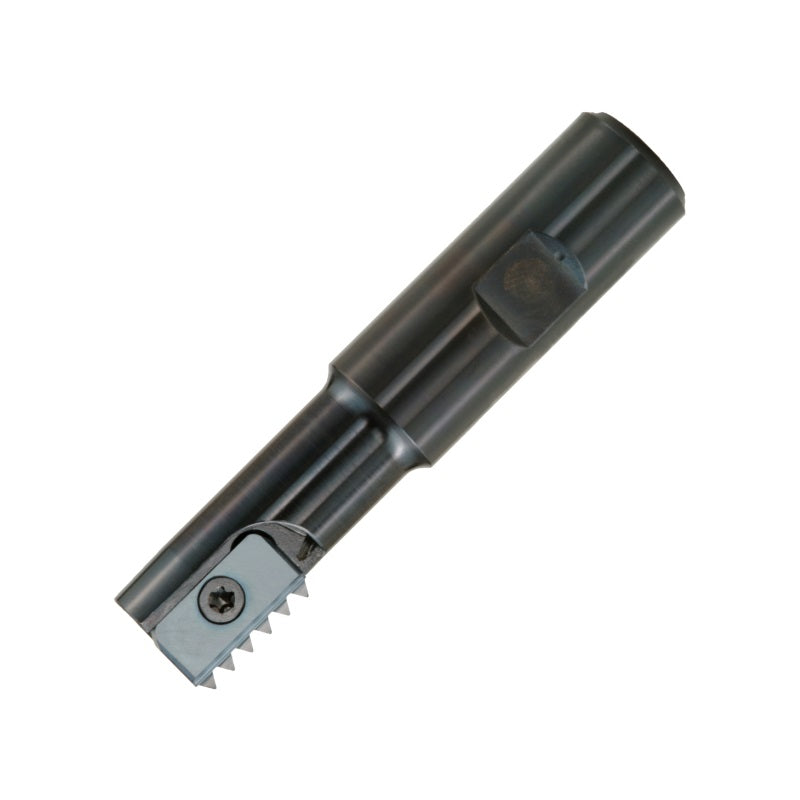

Carmex Single Threading Insert holder - For Carbide External/Internal Threading Inserts - SR0012F14

Please log in here to access all benefits, including multibuy discounts and faster checkouts.

Carmex Single Threading Insert holder - For Carbide External/Internal Threading Inserts - SR0012F14

SKU:SR0012F14

Specification

Insert Size	14
Shank Diameter	20
Shank Material	Steel
Reach	20
Overall Length	75
Minimum Bore Diameter	12

£79.68

Prices shown ex. VAT

In Stock— only 1 left

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Our industry-leading assortment of indexable thread milling tools can be used with a wide range of applications. These tools were created in order to machine threading jobs on CNC milling machines (by using helical interpolation programs). They allow for improved productivity, thanks to the increased cutting speeds, and multi-tooth carbide inserts. Additionally, they can be used to lower tooling costs – as they are considerably cheaper than comparable taps and dies.

Tool holders for inserts from the Mill-Thread family.

Features:

Internal coolant bore

Notes:

SR0009H12 can’t be used with conical inserts: 12-18 NPT / 12-18 NPTF / 12-19 BSPT

SR0018H21 is incompatible with the following inserts: 21 I 3.5 ISO / 21 I 8 UN / 21 I 7 UN / 21-11 BSPT / 21-11.5 NPT / 21-11.5 NPTF

SR0390H12 is compatible only with these conical inserts: 12-18 NPT / 12-18 NPTF / 12-19 BSPT

Insert Size	14
Shank Diameter	20
Shank Material	Steel
Reach	20
Overall Length	75
Minimum Bore Diameter	12
Flutes	1
Neck Diameter	8.9
Insert Screw	S14
Torx Key	K14
Extension	N/A

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★

Nice experience staff are very helpful and interested...

Staff are very helpful and interested in providing a good service making us the customer feel valued.

Bill

★★★★★

first place we look

honest about stock and prices are competitive.

Phil

★★★★★

Polite and helpful

Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .

Graham

★★★★★

Buying experience

Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.

Jeremy

Full Range: Carmex Single Threading Insert holders - For Carbide External/Internal Threading Inserts

View full collection →

You are viewing SR0012F14. Click any other SKU to view its full details.

Product SKU	Insert Size	Shank Diameter	Reach	Overall Length	Minimum Bore Diameter	Neck Diameter	Price	Stock

SR0009H12	12	20	14	85	9.5	7.5	£91.20	5 days
SR0010H12	12	20	16	85	9.9	7.6	£100.72	In Stock
SR0012F14 Viewing	14	20	20	75	12	8.9	£79.68	In Stock
SR0014H14	14	20	25	85	14.5	11.2	£87.62	5 days
SR0017H14	14	20	30	85	17	13.4	£98.02	5 days
SR0018H21	21	20	30	85	18	14.4	£121.04	5 days
SR0021H21	21	20	40	94	21	16.5	£127.84	In Stock
SR0029J30	30	25	50	110	29	22.4	£156.08	5 days
SR0048M40	40	40	78	153	48	35	£212.46	5 days
