Vortex
|
Authorised UK Distributor

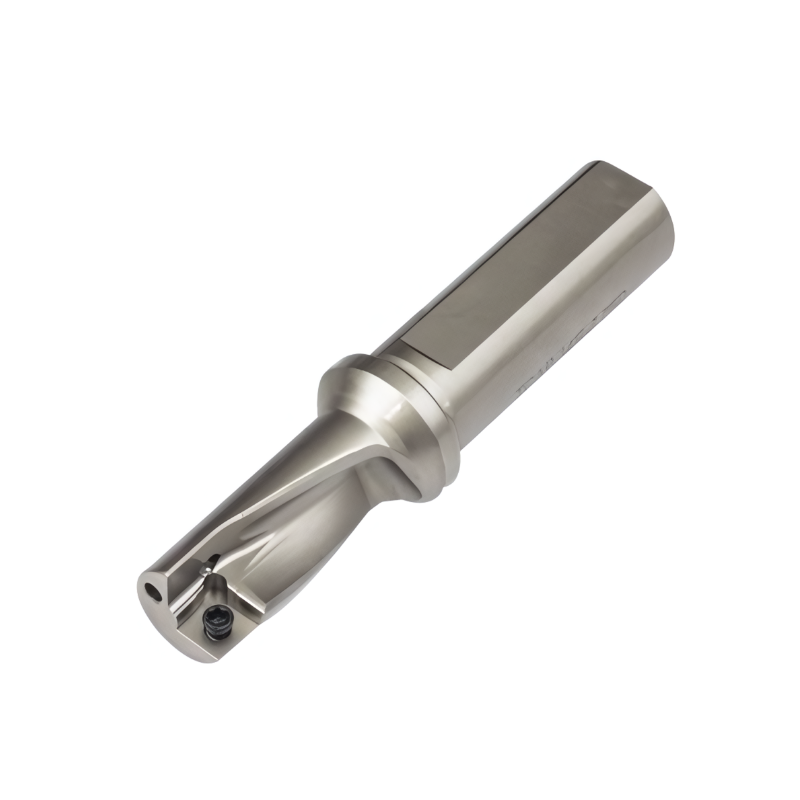

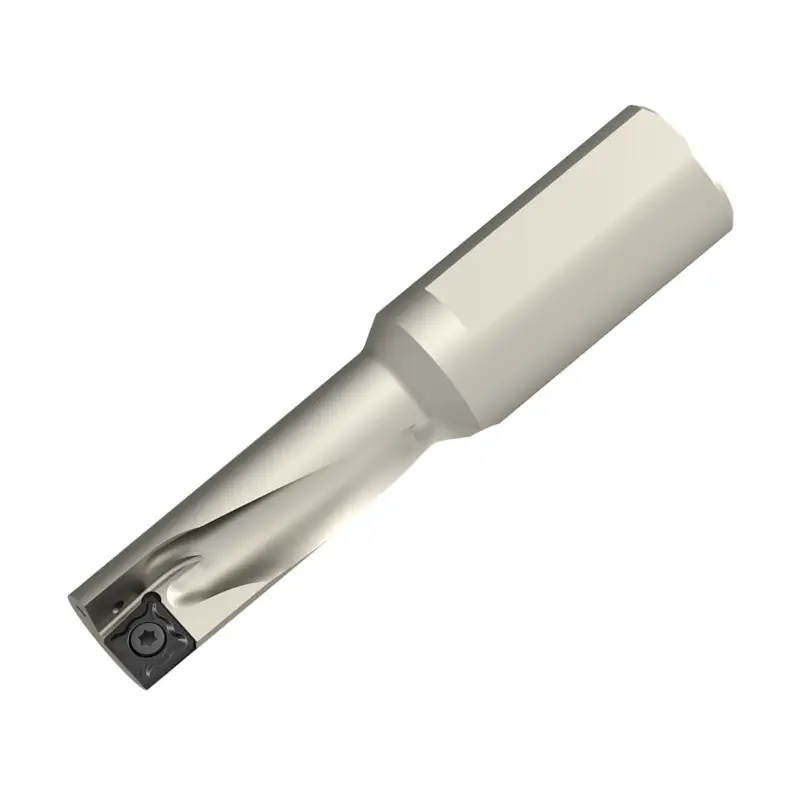

Vortex Varicut Multi Turn Drills
For QCMT Inserts
Multi-turn milling tool designed for precision machining applications. With a 2.25xD or 3.25xD (depth of cut) capability, it offers enhanced performance for deep milling operations. This tool is optimized for use with QCMT inserts, ensuring excellent cutting efficiency, surface finish, and chip control. Its robust construction and design make it suitable for a range of materials, providing reliability and accuracy in demanding milling tasks. Ideal for both high-speed and high-feed machining,
Click any SKU to view full product details, specifications and datasheets.
| Product SKU | Drill Diameter (D) | Shank Diameter (D1) | Overall Length (L) | Max Depth (L1) | Shank Length (L2) | xD | Insert | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| PRO1600438 | 10 | 12 | 70 | 23 | 42 | 2.25 | QCMT0502 | £52.47 | 4-6 weeks |
|
| PRO1600439 | 12 | 16 | 77 | 27 | 45 | 2.25 | QCMT0602 | £57.24 | 4-6 weeks |
|
| PRO1600440 | 14 | 16 | 81 | 32 | 45 | 2.25 | QCMT0703 | £60.42 | 4-6 weeks |
|
| PRO1600441 | 16 | 20 | 91 | 36 | 50 | 2.25 | QCMT0803 | £63.60 | 4-6 weeks |
|
| PRO1600442 | 20 | 25 | 106 | 45 | 56 | 2.25 | QCMT10T3 | £89.04 | 4-6 weeks |
|
| PRO1600443 | 10 | 12 | 79 | 33 | 42 | 3.25 | QCMT0502 | £57.24 | 4-6 weeks |
|
| PRO1600444 | 12 | 16 | 90 | 39 | 45 | 3.25 | QCMT0602 | £60.42 | 4-6 weeks |
|
| PRO1600445 | 14 | 16 | 97 | 46 | 45 | 3.25 | QCMT0703 | £63.60 | 4-6 weeks |
|
| PRO1600446 | 16 | 20 | 110 | 52 | 50 | 3.25 | QCMT0803 | £76.32 | 4-6 weeks |
|
| PRO1600447 | 20 | 25 | 131 | 65 | 56 | 3.25 | QCMT10T3 | £114.48 | 4-6 weeks |
|
No products match your filters.
