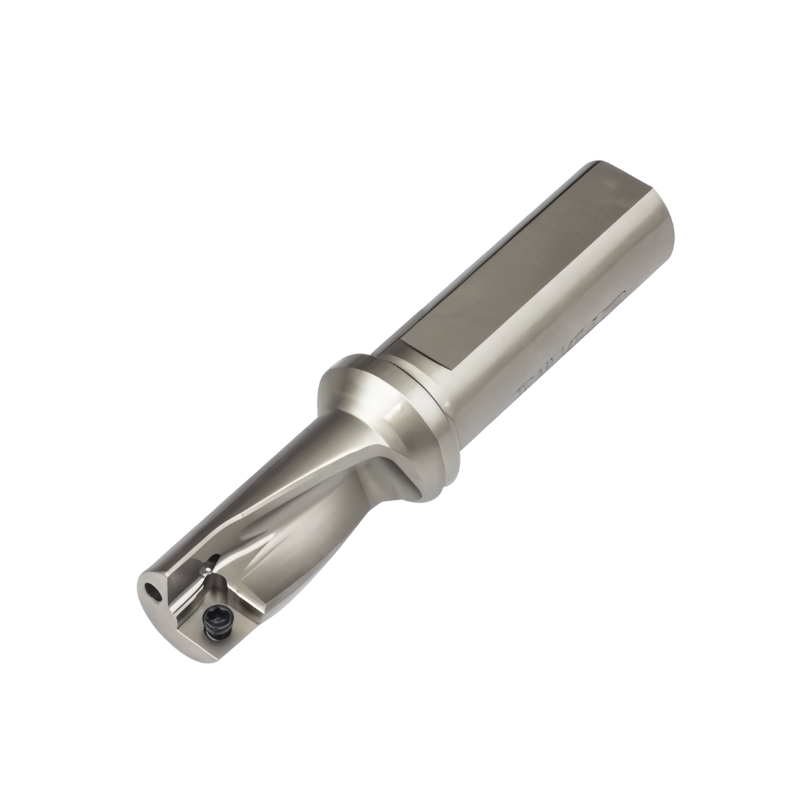

Vortex Varicut Multi Turn Drill - For QCMT Inserts - 12mm - 3.25D

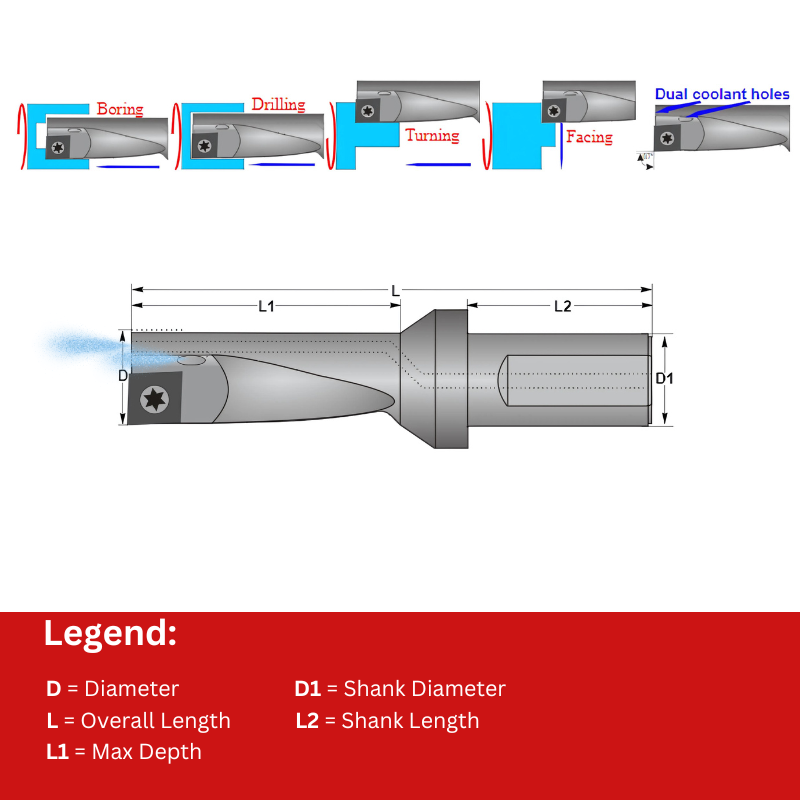

| Drill Diameter (D) | 12 |
| Shank Diameter (D1) | 16 |
| Overall Length (L) | 90 |
| Max Depth (L1) | 39 |
| Shank Length (L2) | 45 |
| xD | 3.25 |
Learn more about Klarna
The Vortex Varicut Multi Turn Drill is a precision 12 mm diameter milling/drilling tool designed for deep-cut operations with QCMT inserts. Its 3.25xD depth-of-cut capability delivers substantial material removal in a single setup while maintaining tight tolerances.
- Diameter: 12 mm
- Depth of Cut: 3.25xD (deep-cut capability for efficient milling)
- Inserts Compatibility: Optimized for QCMT06 inserts (QCMT060204CMUM25)
- Tool Type: Multi-turn milling/drilling tool crafted for precision machining
- Construction: Robust design built for reliability in demanding milling tasks
- Performance: Suited for high-speed and high-feed machining with efficient cutting, excellent surface finish, and effective chip control
- Material Range: Suitable for a range of machinable materials
The tool enables deep pockets and precise channels with fewer passes thanks to the 3.25xD depth of cut, reducing cycle times. Optimized insert geometry and chip control help maintain consistent surface finishes and accurate tolerances across jobs, even when machining varied materials. Built for reliability in high-speed, high-feed environments, it delivers repeatable performance across production runs, improving throughput and part quality.
| Drill Diameter (D) | 12 |
| Shank Diameter (D1) | 16 |
| Overall Length (L) | 90 |
| Max Depth (L1) | 39 |
| Shank Length (L2) | 45 |
| xD | 3.25 |
| Insert | PRO1800192(QCMT060204) |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Varicut Multi Turn Drills - For QCMT Inserts
View full collection →You are viewing PRO1600444. Click any other SKU to view its full details.
| Product SKU | Drill Diameter (D) | Shank Diameter (D1) | Overall Length (L) | Max Depth (L1) | Shank Length (L2) | xD | Insert | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| PRO1600438 | 10 | 12 | 70 | 23 | 42 | 2.25 | QCMT0502 | £52.47 | 4-6 weeks | |
| PRO1600439 | 12 | 16 | 77 | 27 | 45 | 2.25 | QCMT0602 | £57.24 | 4-6 weeks | |
| PRO1600440 | 14 | 16 | 81 | 32 | 45 | 2.25 | QCMT0703 | £60.42 | 4-6 weeks | |
| PRO1600441 | 16 | 20 | 91 | 36 | 50 | 2.25 | QCMT0803 | £63.60 | 4-6 weeks | |
| PRO1600442 | 20 | 25 | 106 | 45 | 56 | 2.25 | QCMT10T3 | £89.04 | 4-6 weeks | |
| PRO1600443 | 10 | 12 | 79 | 33 | 42 | 3.25 | QCMT0502 | £57.24 | 4-6 weeks | |
| PRO1600444 Viewing | 12 | 16 | 90 | 39 | 45 | 3.25 | QCMT0602 | £60.42 | 4-6 weeks | |
| PRO1600445 | 14 | 16 | 97 | 46 | 45 | 3.25 | QCMT0703 | £63.60 | 4-6 weeks | |
| PRO1600446 | 16 | 20 | 110 | 52 | 50 | 3.25 | QCMT0803 | £76.32 | 4-6 weeks | |
| PRO1600447 | 20 | 25 | 131 | 65 | 56 | 3.25 | QCMT10T3 | £114.48 | 4-6 weeks |
