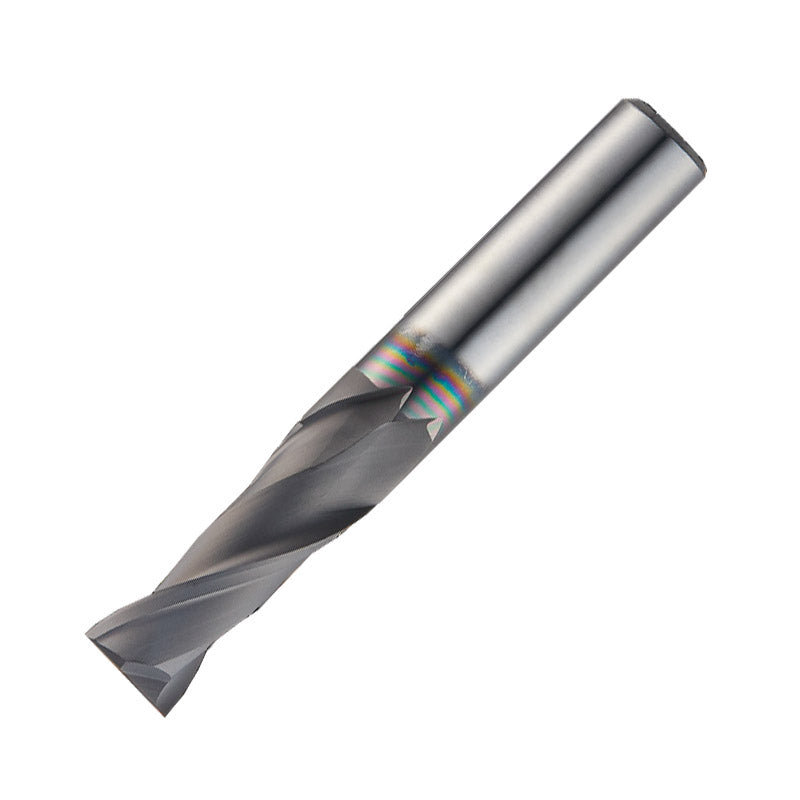

Widin Carbide End Mill For Graphite - 2 Flute Neck Type Square Edge - 0.6mm x 10mm

Widin Carbide End Mill For Graphite - 2 Flute Neck Type Square Edge (GE)


From
£38.09
View Products
Need Help?
Contact Sales

The Widin Carbide End Mill for Graphite with a 2 Flute Neck Type Square Edge (GE) is a specialized cutting tool designed specifically for machining graphite materials. Graphite is widely used in industries such as aerospace, automotive, and electronics due to its unique properties, including high thermal conductivity and low friction. This end mill is engineered to deliver precise and efficient cutting performance on graphite workpieces. The 2 flute design provides a balance between chip evacuation and tool rigidity, ensuring smooth cutting and reducing the risk of chip clogging. The neck type construction allows for increased reach and access to confined areas, making it ideal for complex machining tasks. With its sharp square edge, this end mill delivers clean and accurate cuts, resulting in high-quality surface finishes. The carbide construction of the end mill offers exceptional hardness and heat resistance, ensuring long tool life and consistent performance.


Product SKU Cutter Diameter Number of Flutes Flute Length Overall Length Shank Diameter Reach Price Stock
GE00601210 0.6 2 1.2 50 4 10 £46.01 0
GE00701506 0.7 2 1.5 50 4 6 £46.01 0
GE00501006 0.5 2 1 50 4 6 £46.01 0
GE00802006 0.8 2 2 50 4 6 £46.01 0
GE0301016 3 2 10 60 4 16 £38.09 0
GE0100308 1 2 3 60 4 8 £38.09 0
GE0150412 1.5 2 4 60 4 12 £39.35 0
GE0301012 3 2 10 60 4 12 £38.09 0
GE0100310 1 2 3 60 4 10 £39.35 0
GE0250812 2.5 2 8 60 4 12 £38.09 0
GE00601206 0.6 2 1.2 50 4 6 £46.01 0
GE0100312 1 2 3 60 4 12 £39.35 0
GE0200612S6 2 2 6 60 6 12 £53.84 0
GE0301012S6 3 2 10 60 6 12 £47.59 0
GE0401216 4 2 12 60 6 16 £38.09 0
GE0602030 6 2 20 80 6 30 £60.32 0
GE0603050 6 2 30 150 6 50 £65.43 0
GE0802540 8 2 25 100 8 40 £77.33 0
GE10030S 10 2 30 80 10 N/A £92.03 0
GE0501520 5 2 15 60 6 20 £60.32 0
GE0301016S6 3 2 10 60 6 16 £47.59 0
GE0200612 2 2 6 60 4 12 £39.35 0
GE0804070 8 2 40 150 8 70 £80.03 0
GE06020S 6 2 20 60 6 N/A £47.59 0
GE12030S 12 2 30 80 12 N/A £116.55 0
GE1004580 10 2 45 160 10 80 £130.86 0
GE0401220 4 2 12 60 6 20 £60.32 0
GE04012S 4 2 12 60 6 N/A £38.09 0
GE08025S 8 2 25 70 8 N/A £62.39 0
GE1205080 12 2 50 160 12 80 £153.38 0
GE1003050 10 2 30 100 10 50 £99.34 0
GE1203050 12 2 30 110 12 50 £126.16 0
