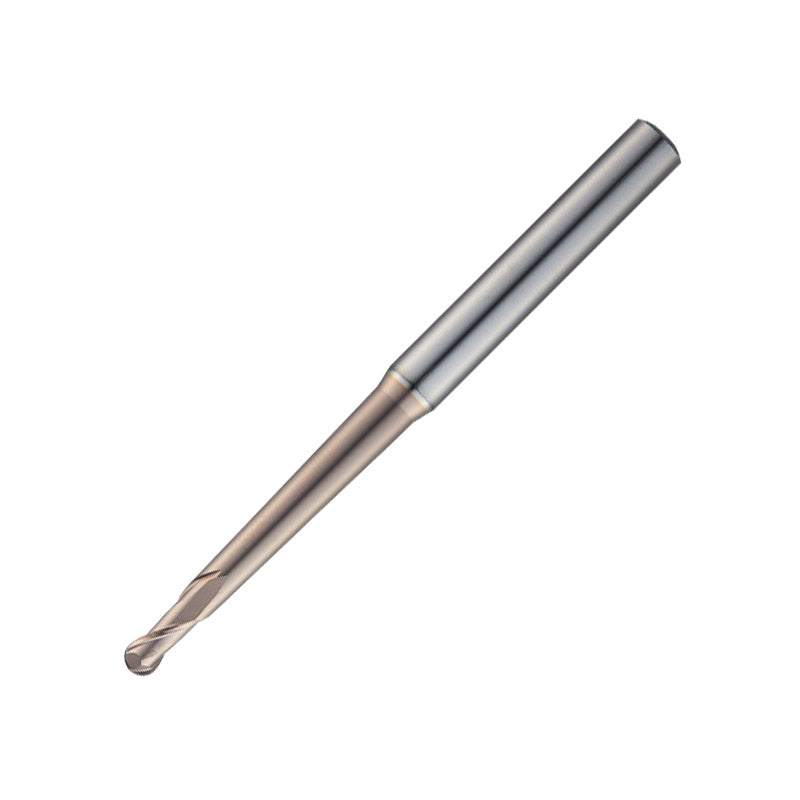

Widin Carbide End Mill For Mold & Die - 2 Flute Tapered Neck Type - Ball Nose -0.1mm x 0.5mm x 1

Widin Carbide End Mill For Mold & Die - 2 Flute Tapered Neck Type - Ball Nose (WB542)


From
£32.11
View Products
Need Help?
Contact Sales

With a cutting diameter range of 1.0mm to 2.0mm, these endmills cater to different machining needs. Each cutting diameter is available in various neck lengths, providing flexibility for specific machining requirements. The tools in this series are designed with a 6mm shank, ensuring compatibility with a wide range of milling machines. The use of high-quality raw materials results in better wear resistance and improved machining performance. The shape of the neck without a notch contributes to excellent effect in preventing breakage, enhancing the overall durability of the tool. With a W coating, the end mill exhibits longer tool life and improved machining stability. It excels in mold and die machining applications, especially for materials below 55 HRc, as well as pre-hardened steel, alloy steel, and carbon steel.


Product SKU Cutter Diameter Number of Flutes Flute Length Overall Length Shank Diameter Reach Radius Taper Angle Price Stock
UB54200110005 0.1 2 0.1 40 4 0.5 0.05 £61.46 0
UB5420010501 0.1 2 0.1 40 4 1 0.05 0.5° £61.46 0
UB54200105005 0.1 2 0.1 40 4 0.5 0.05 0.5° £61.46 0
UB5420011001 0.1 2 0.1 40 4 1 0.05 £61.46 0
UB54200115005 0.1 2 0.1 40 4 0.5 0.05 1.5° £61.46 0
UB54200120005 0.1 2 0.1 40 4 0.5 0.05 £61.46 0
UB5420012001 0.1 2 0.1 40 4 1 0.05 £61.46 0
UB54200130005 0.1 2 0.1 40 4 0.5 0.05 £61.46 0
UB5420020502 0.2 2 0.2 40 4 2 0.1 0.5° £43.24 0
UB5420013001 0.1 2 0.1 40 4 1 0.05 £61.46 0
UB5420020503 0.2 2 0.2 40 4 3 0.1 0.5° £43.24 0
UB5420011501 0.1 2 0.1 40 4 1 0.05 1.5° £61.46 0
UB5420021001 0.2 2 0.2 40 4 1 0.1 £43.24 0
UB5420021002 0.2 2 0.2 40 4 2 0.1 £43.24 0
UB5420020501 0.2 2 0.2 40 4 1 0.1 0.5° £43.24 0
UB5420021503 0.2 2 0.2 40 4 3 0.1 1.5° £43.24 0
UB5420021003 0.2 2 0.2 40 4 3 0.1 £43.24 0
UB5420021501 0.2 2 0.2 40 4 1 0.1 1.5° £43.24 0
UB5420021502 0.2 2 0.2 40 4 2 0.1 1.5° £43.24 0
UB5420022002 0.2 2 0.2 40 4 2 0.1 £43.24 0
UB5420022003 0.2 2 0.2 40 4 3 0.1 £43.24 0
UB5420022001 0.2 2 0.2 40 4 1 0.1 £43.24 0
UB5420023003 0.2 2 0.2 40 4 3 0.1 £43.24 0
UB5420025002 0.2 2 0.2 40 4 2 0.1 £43.24 0
UB5420023001 0.2 2 0.2 40 4 1 0.1 £43.24 0
UB5420023002 0.2 2 0.2 40 4 2 0.1 £43.24 0
UB5420032003 0.3 2 0.3 40 4 3 0.15 £37.80 0
UB5420025003 0.2 2 0.2 40 4 3 0.1 £43.24 0
UB5420032002 0.3 2 0.3 40 4 2 0.15 £37.80 0
UB5420031003 0.3 2 0.3 40 4 3 0.15 £37.80 0
UB5420033003 0.3 2 0.3 40 4 3 0.15 £39.30 0
UB5420051006 0.5 2 0.5 50 4 6 0.25 £32.11 0
UB5420040506 0.4 2 0.4 50 4 6 0.2 0.5° £39.30 0
UB5420043004 0.4 2 0.4 50 4 4 0.2 £39.30 0
UB5420051004 0.5 2 0.5 50 4 4 0.25 £32.11 0
UB5420051010 0.5 2 0.5 50 4 10 0.25 £32.11 0
UB5420051504 0.5 2 0.5 50 4 4 0.25 1.5° £32.11 0
UB5420051506 0.5 2 0.5 50 4 6 0.25 1.5° £32.11 0
UB5420051508 0.5 2 0.5 50 4 8 0.25 1.5° £32.11 0
UB5420041004 0.4 2 0.4 50 4 4 0.2 £39.30 0
UB5420051008 0.5 2 0.5 50 4 8 0.25 £32.11 0
UB5420052006 0.5 2 0.5 50 4 6 0.25 £32.11 0
UB5420052004 0.5 2 0.5 50 4 4 0.25 £32.11 0
UB5420051510 0.5 2 0.5 50 4 10 0.25 1.5° £32.11 0
UB5420053006 0.5 2 0.5 50 4 6 0.25 £32.11 0
UB5420052010 0.5 2 0.5 50 4 10 0.25 £32.11 0
UB5420053004 0.5 2 0.5 50 4 4 0.25 £32.11 0
UB5420053008 0.5 2 0.5 50 4 8 0.25 £32.11 0
UB5420052008 0.5 2 0.5 50 4 8 0.25 £32.11 0
UB5420060508 0.6 2 0.6 50 4 8 0.3 0.5° £32.11 0
UB5420060504 0.6 2 0.6 50 4 4 0.3 0.5° £32.11 0
UB5420060506 0.6 2 0.6 50 4 6 0.3 0.5° £32.11 0
UB5420053010 0.5 2 0.5 50 4 10 0.25 £32.11 0
UB5420060510 0.6 2 0.6 50 4 10 0.3 0.5° £32.11 0
UB5420061006 0.6 2 0.6 50 4 6 0.3 £32.11 0
UB5420061004 0.6 2 0.6 50 4 4 0.3 £32.11 0
UB5420061008 0.6 2 0.6 50 4 8 0.3 £32.11 0
UB5420060512 0.6 2 0.6 50 4 12 0.3 0.5° £32.11 0
UB5420061010 0.6 2 0.6 50 4 10 0.3 £32.11 0
UB5420062004 0.6 2 0.6 50 4 4 0.3 £32.11 0
UB5420061012 0.6 2 0.6 50 4 12 0.3 £32.11 0
UB5420061504 0.6 2 0.6 50 4 4 0.3 1.5° £32.11 0
UB5420061506 0.6 2 0.6 50 4 6 0.3 1.5° £32.11 0
UB5420061508 0.6 2 0.6 50 4 8 0.3 1.5° £32.11 0
UB5420061510 0.6 2 0.6 50 4 10 0.3 1.5° £32.11 0
UB5420061512 0.6 2 0.6 50 4 12 0.3 1.5° £32.11 0
UB5420063004 0.6 2 0.6 50 4 4 0.3 £32.11 0
UB5420062008 0.6 2 0.6 50 4 8 0.3 £32.11 0
UB5420062010 0.6 2 0.6 50 4 10 0.3 £32.11 0
UB5420062012 0.6 2 0.6 50 4 12 0.3 £32.11 0
UB5420063008 0.6 2 0.6 50 4 8 0.3 £32.11 0
UB5420062006 0.6 2 0.6 50 4 6 0.3 £32.11 0
UB5420063010 0.6 2 0.6 50 4 10 0.3 £32.11 0
UB5420063006 0.6 2 0.6 50 4 6 0.3 £32.11 0
UB5420063012 0.6 2 0.6 50 4 12 0.3 £32.11 0
UB5420080504 0.8 2 0.8 50 4 4 0.4 0.5° £32.11 0
UB5420080506 0.8 2 0.8 50 4 6 0.4 0.5° £32.11 0
UB5420081004 0.8 2 0.8 50 4 4 0.4 £32.11 0
UB5420080510 0.8 2 0.8 50 4 10 0.4 0.5° £32.11 0
UB5420080512 0.8 2 0.8 50 4 12 0.4 0.5° £32.11 0
UB5420080508 0.8 2 0.8 50 4 8 0.4 0.5° £32.11 0
UB5420081008 0.8 2 0.8 50 4 8 0.4 £32.11 0
UB5420080516 0.8 2 0.8 50 4 16 0.4 0.5° £36.98 0
UB5420081010 0.8 2 0.8 50 4 10 0.4 £32.11 0
UB5420081006 0.8 2 0.8 50 4 6 0.4 £32.11 0
UB5420081016 0.8 2 0.8 50 4 16 0.4 £36.98 0
UB5420081504 0.8 2 0.8 50 4 4 0.4 1.5° £32.11 0
UB5420081012 0.8 2 0.8 50 4 12 0.4 £32.11 0
UB5420081508 0.8 2 0.8 50 4 8 0.4 1.5° £32.11 0
UB5420082010 0.8 2 0.8 50 4 10 0.4 £32.11 0
UB5420081506 0.8 2 0.8 50 4 6 0.4 1.5° £32.11 0
UB5420082012 0.8 2 0.8 50 4 12 0.4 £32.11 0
UB5420081512 0.8 2 0.8 50 4 12 0.4 1.5° £32.11 0
UB5420082004 0.8 2 0.8 50 4 4 0.4 £32.11 0
UB5420081516 0.8 2 0.8 50 4 16 0.4 1.5° £36.98 0
UB5420081510 0.8 2 0.8 50 4 10 0.4 1.5° £32.11 0
UB5420083006 0.8 2 0.8 50 4 6 0.4 £32.11 0
UB5420082008 0.8 2 0.8 50 4 8 0.4 £32.11 0
UB5420083004 0.8 2 0.8 50 4 4 0.4 £32.11 0
UB5420082016 0.8 2 0.8 50 4 16 0.4 £36.98 0
UB5420082006 0.8 2 0.8 50 4 6 0.4 £32.11 0
UB5420083008 0.8 2 0.8 50 4 8 0.4 £32.11 0
UB5420083010 0.8 2 0.8 50 4 10 0.4 £32.11 0
UB5420083012 0.8 2 0.8 50 4 12 0.4 £32.11 0
UB5420083016 0.8 2 0.8 50 4 16 0.4 £36.98 0
UB5420100506 1 2 1 50 4 6 0.5 0.5° £27.59 0
UB5420100508 1 2 1 50 4 8 0.5 0.5° £27.59 0
UB5420100520 1 2 1 50 4 20 0.5 0.5° £27.59 0
UB5420100516 1 2 1 50 4 16 0.5 0.5° £27.59 0
UB5420100512 1 2 1 50 4 12 0.5 0.5° £27.59 0
UB5420100510 1 2 1 50 4 10 0.5 0.5° £27.59 0
UB5420100530 1 2 1 70 4 30 0.5 0.5° £35.72 0
UB5420100525 1 2 1 60 4 25 0.5 0.5° £33.50 0
UB5420101010 1 2 1 50 4 10 0.5 £27.59 0
UB5420100540 1 2 1 80 4 40 0.5 0.5° £39.07 0
UB5420100550 1 2 1 90 4 50 0.5 0.5° £41.98 0
UB5420101008 1 2 1 50 4 8 0.5 £27.59 0
UB5420101006 1 2 1 50 4 6 0.5 £27.59 0
UB5420101012 1 2 1 50 4 12 0.5 £27.59 0
UB5420101016 1 2 1 50 4 16 0.5 £27.59 0
UB5420101020 1 2 1 50 4 20 0.5 £27.59 0
UB5420101025 1 2 1 60 4 25 0.5 £33.50 0
UB5420101030 1 2 1 70 4 60 0.5 £35.72 0
UB5420101040 1 2 1 80 4 40 0.5 £39.07 0
UB5420101050 1 2 1 90 4 50 0.5 £41.98 0
UB5420101516 1 2 1 50 4 16 0.5 1.5° £27.59 0
UB5420101512 1 2 1 50 4 12 0.5 1.5° £27.59 0
UB5420101506 1 2 1 50 4 6 0.5 1.5° £27.59 0
UB5420101508 1 2 1 50 4 8 0.5 1.5° £27.59 0
UB5420101530 1 2 1 70 4 30 0.5 1.5° £35.72 0
UB5420101525 1 2 1 60 4 25 0.5 1.5° £33.50 0
UB5420101510 1 2 1 50 4 10 0.5 1.5° £27.59 0
UB5420101520 1 2 1 50 4 20 0.5 1.5° £27.59 0
UB5420101540 1 2 1 80 4 40 0.5 1.5° £39.07 0
UB5420102012 1 2 1 50 4 12 0.5 £27.59 0
UB5420102006 1 2 1 50 4 6 0.5 £27.59 0
UB5420102010 1 2 1 50 4 10 0.5 £27.59 0
UB5420101550 1 2 1 90 4 50 0.5 1.5° £41.98 0
UB5420102016 1 2 1 50 4 16 0.5 £27.59 0
UB5420102008 1 2 1 50 4 8 0.5 £27.59 0
UB5420102020 1 2 1 50 4 20 0.5 £27.59 0
UB5420103010 1 2 1 50 4 10 0.5 £27.59 0
UB5420102040 1 2 1 80 4 40 0.5 £39.07 0
UB5420105030 1 2 1 70 6 30 0.5 £38.26 0
UB5420103006 1 2 1 50 4 6 0.5 £27.59 0
UB5420102025 1 2 1 60 4 25 0.5 £33.50 0
UB5420103008 1 2 1 50 4 8 0.5 £27.59 0
UB5420102030 1 2 1 70 4 30 0.5 £35.72 0
UB5420103016 1 2 1 50 4 16 0.5 £27.59 0
UB5420103012 1 2 1 50 4 12 0.5 £27.59 0
UB5420103025 1 2 1 60 4 25 0.5 £33.50 0
UB5420103030 1 2 1 70 6 30 0.5 £38.26 0
UB5420103050 1 2 1 90 6 50 0.5 £46.37 0
UB5420103040 1 2 1 80 6 40 0.5 £42.78 0
UB5420120508 1.2 2 1.2 50 4 8 0.6 0.5° £27.59 0
UB5420103020 1 2 1 50 4 20 0.5 £27.59 0
UB5420102050 1 2 1 90 6 50 0.5 £46.37 0
UB5420120512 1.2 2 1.2 50 4 12 0.6 0.5° £27.59 0
UB5420121008 1.2 2 1.2 50 4 8 0.6 £27.59 0
UB5420120530 1.2 2 1.2 70 4 30 0.6 0.5° £35.72 0
UB5420120525 1.2 2 1.2 60 4 25 0.6 0.5° £33.50 0
UB5420120516 1.2 2 1.2 50 4 16 0.6 0.5° £27.59 0
UB5420120520 1.2 2 1.2 50 4 20 0.6 0.5° £27.59 0
UB5420121020 1.2 2 1.2 50 4 20 0.6 £27.59 0
UB5420121012 1.2 2 1.2 50 4 12 0.6 £27.59 0
UB5420121016 1.2 2 1.2 50 4 16 0.6 £27.59 0
UB5420121030 1.2 2 1.2 70 4 30 0.6 £35.72 0
UB5420121530 1.2 2 1.2 70 4 30 0.6 1.5° £35.72 0
UB5420122008 1.2 2 1.2 50 4 8 0.6 £27.59 0
UB5420121525 1.2 2 1.2 60 4 25 0.6 1.5° £33.50 0
UB5420122020 1.2 2 1.2 50 4 20 0.6 £27.59 0
UB5420122025 1.2 2 1.2 60 4 25 0.6 £33.50 0
UB5420122016 1.2 2 1.2 50 4 16 0.6 £27.59 0
UB5420121025 1.2 2 1.2 60 4 25 0.6 £33.50 0
UB5420121508 1.2 2 1.2 50 4 8 0.6 1.5° £27.59 0
UB5420121512 1.2 2 1.2 50 4 12 0.6 1.5° £27.59 0
UB5420122012 1.2 2 1.2 50 4 12 0.6 £27.59 0
UB5420121520 1.2 2 1.2 50 4 20 0.6 1.5° £27.59 0
UB5420121516 1.2 2 1.2 50 4 16 0.6 1.5° £27.59 0
UB5420122030 1.2 2 1.2 70 4 30 0.6 £35.72 0
UB5420123020 1.2 2 1.2 50 4 20 0.6 £27.59 0
UB5420123012 1.2 2 1.2 50 4 12 0.6 £27.59 0
UB5420123016 1.2 2 1.2 50 4 16 0.6 £27.59 0
UB5420123008 1.2 2 1.2 50 4 8 0.6 £27.59 0
UB5420123025 1.2 2 1.2 60 4 25 0.6 £33.50 0
UB5420123030 1.2 2 1.2 70 6 30 0.6 £38.26 0
UB5420150540 1.5 2 1.5 80 4 40 0.75 0.5° £36.63 0
UB5420150508 1.5 2 1.5 50 4 8 0.75 0.5° £27.59 0
UB5420150525 1.5 2 1.5 60 4 25 0.75 0.5° £28.63 0
UB5420150530 1.5 2 1.5 70 4 30 0.75 0.5° £32.11 0
UB5420151016 1.5 2 1.5 50 4 16 0.75 £27.59 0
UB5420150512 1.5 2 1.5 50 4 12 0.75 0.5° £27.59 0
UB5420150510 1.5 2 1.5 50 4 10 0.75 0.5° £27.59 0
UB5420150516 1.5 2 1.5 50 4 16 0.75 0.5° £27.59 0
UB5420151012 1.5 2 1.5 50 4 12 0.75 £27.59 0
UB5420151010 1.5 2 1.5 50 4 10 0.75 £27.59 0
UB5420150520 1.5 2 1.5 50 4 20 0.75 0.5° £27.59 0
UB5420151008 1.5 2 1.5 50 4 8 0.75 £27.59 0
UB5420150550 1.5 2 1.5 90 4 50 0.75 0.5° £39.65 0
UB5420151510 1.5 2 1.5 50 4 10 0.75 1.5° £27.59 0
UB5420151025 1.5 2 1.5 60 4 25 0.75 £28.63 0
UB5420151050 1.5 2 1.5 90 4 50 0.75 £39.65 0
UB5420152010 1.5 2 1.5 50 4 10 0.75 £27.59 0
UB5420151020 1.5 2 1.5 50 4 20 0.75 £27.59 0
UB5420151512 1.5 2 1.5 50 4 12 0.75 1.5° £27.59 0
UB5420151508 1.5 2 1.5 50 4 8 0.75 1.5° £27.59 0
UB5420151040 1.5 2 1.5 80 4 40 0.75 £36.63 0
UB5420151525 1.5 2 1.5 60 4 25 0.75 1.5° £28.63 0
UB5420152008 1.5 2 1.5
