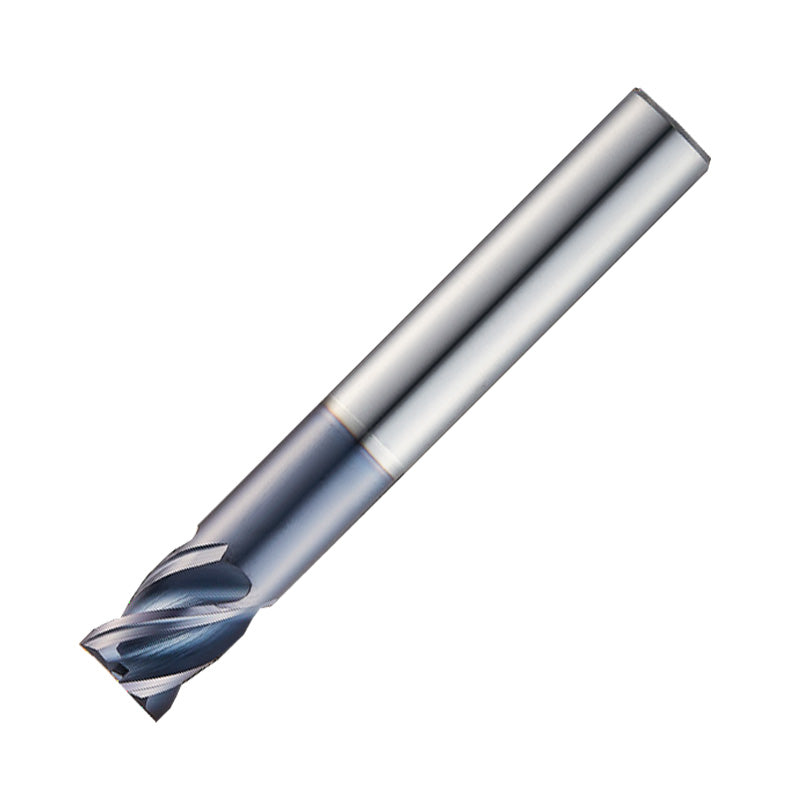

Widin Carbide End Mill For Stainless & Exotics
4 Flute Variable Helix Neck Type Square Edge (XE514)
A high-performance cutting tool designed specifically for machining stainless steel and exotic materials. With its four-flute design and variable helix, this end mill offers excellent chip evacuation and improved stability during cutting operations. The neck type construction provides added rigidity, allowing for precise and accurate machining even in demanding applications. The square edge configuration ensures clean and sharp cuts, making it suitable for applications that require square-edged profiles or slots.
Click any SKU to view full product details, specifications and datasheets.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Reach | Neck Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| XE514010 | 1 | 4 | 2 | 45 | 4 | 10 | 0.8 | £17.86 | 5 days |
|
| XE514020 | 2 | 4 | 3 | 45 | 4 | 12 | 1.8 | £17.86 | 5 days |
|
| XE514030 | 3 | 4 | 4 | 50 | 6 | 14 | 2.8 | £21.46 | In Stock |
|
| XE514040 | 4 | 4 | 5 | 50 | 6 | 16 | 3.8 | £21.46 | In Stock |
|
| XE514050 | 5 | 4 | 6 | 50 | 6 | 18 | 4.8 | £21.46 | In Stock |
|
| XE514060 | 6 | 4 | 7 | 50 | 6 | 20 | 5.8 | £21.46 | 5 days |
|
| XE514080 | 8 | 4 | 9 | 60 | 8 | 26 | 7.8 | £32.22 | In Stock |
|
| XE514100 | 10 | 4 | 11 | 70 | 10 | 31 | 9.8 | £47.36 | In Stock |
|
| XE514120 | 12 | 4 | 13 | 75 | 12 | 37 | 11.8 | £71.68 | In Stock |
|
| XE514160 | 16 | 4 | 17 | 90 | 16 | 43 | 15.8 | £211.84 | In Stock |
|
| XE514200 | 20 | 4 | 21 | 100 | 20 | 53 | 19.8 | £365.90 | In Stock |
|
