Widin Carbide End Mill For Stainless & Exotics - 4 Flute Variable Helix Neck Type Square Edge - 5mm
| Cutter Diameter | 5 |
| Number of Flutes | 4 |
| Flute Length | 6 |
| Overall Length | 50 |
| Shank Diameter | 6 |
| Reach | 18 |
Learn more about Klarna

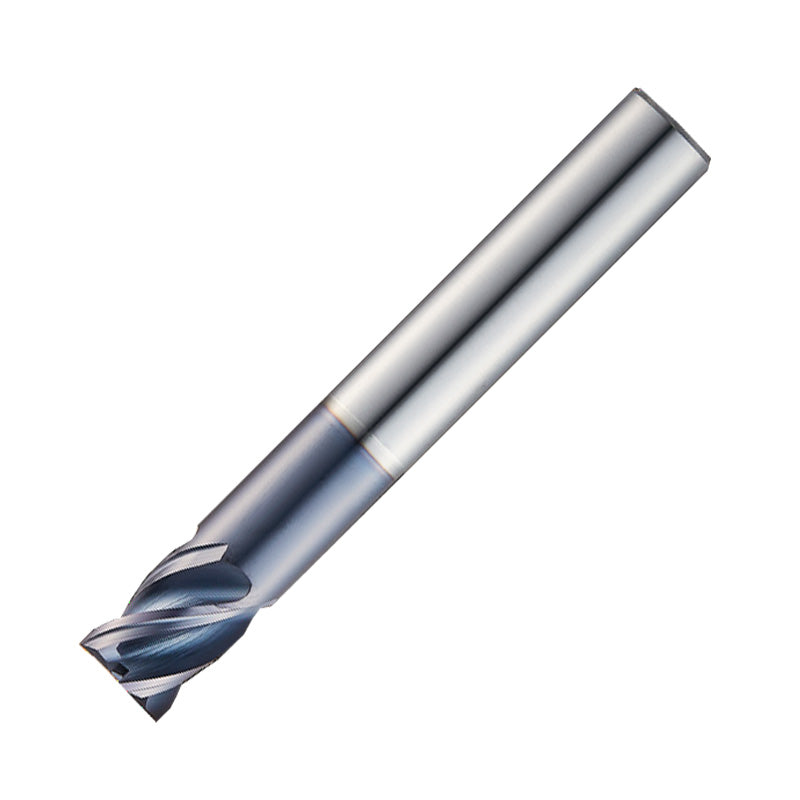

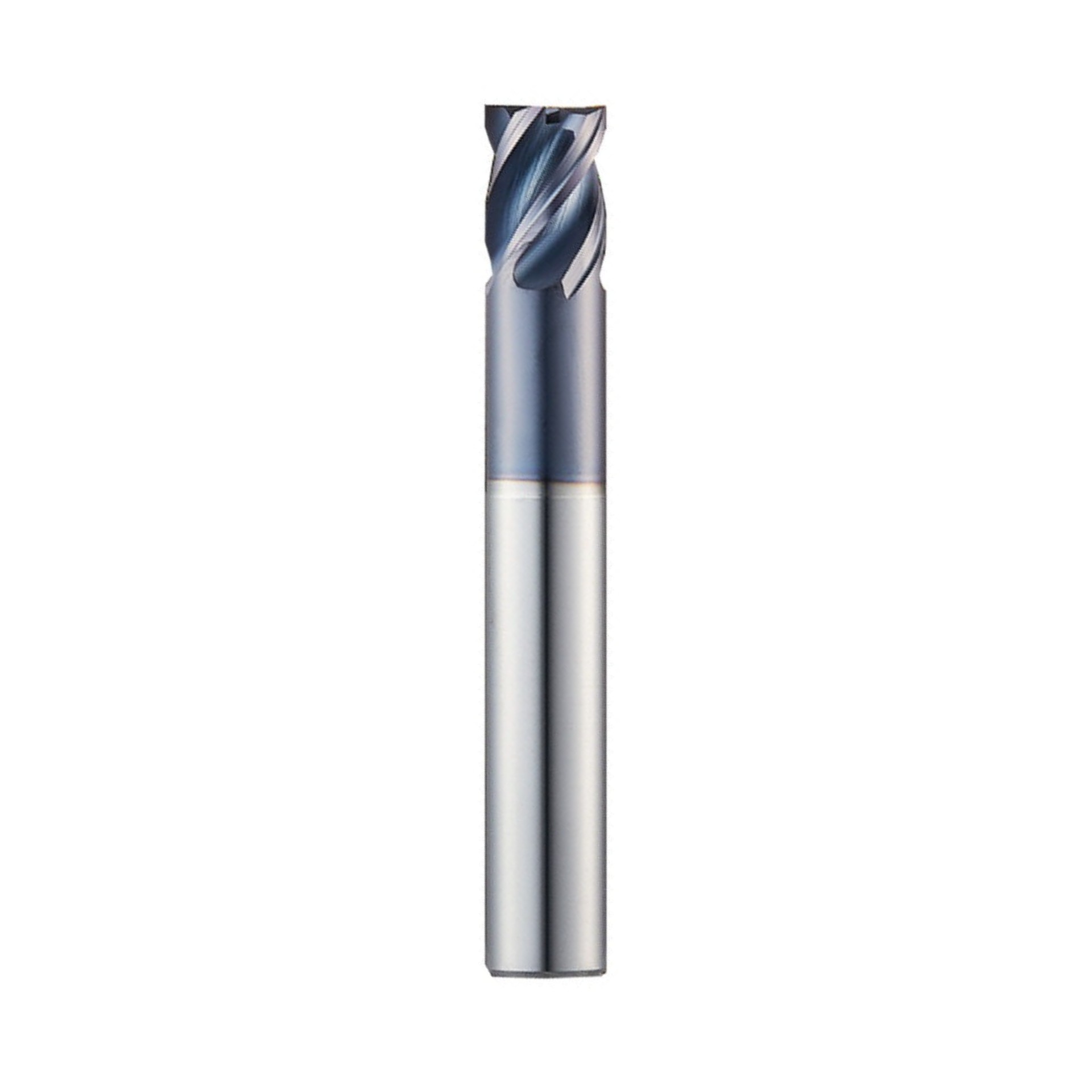

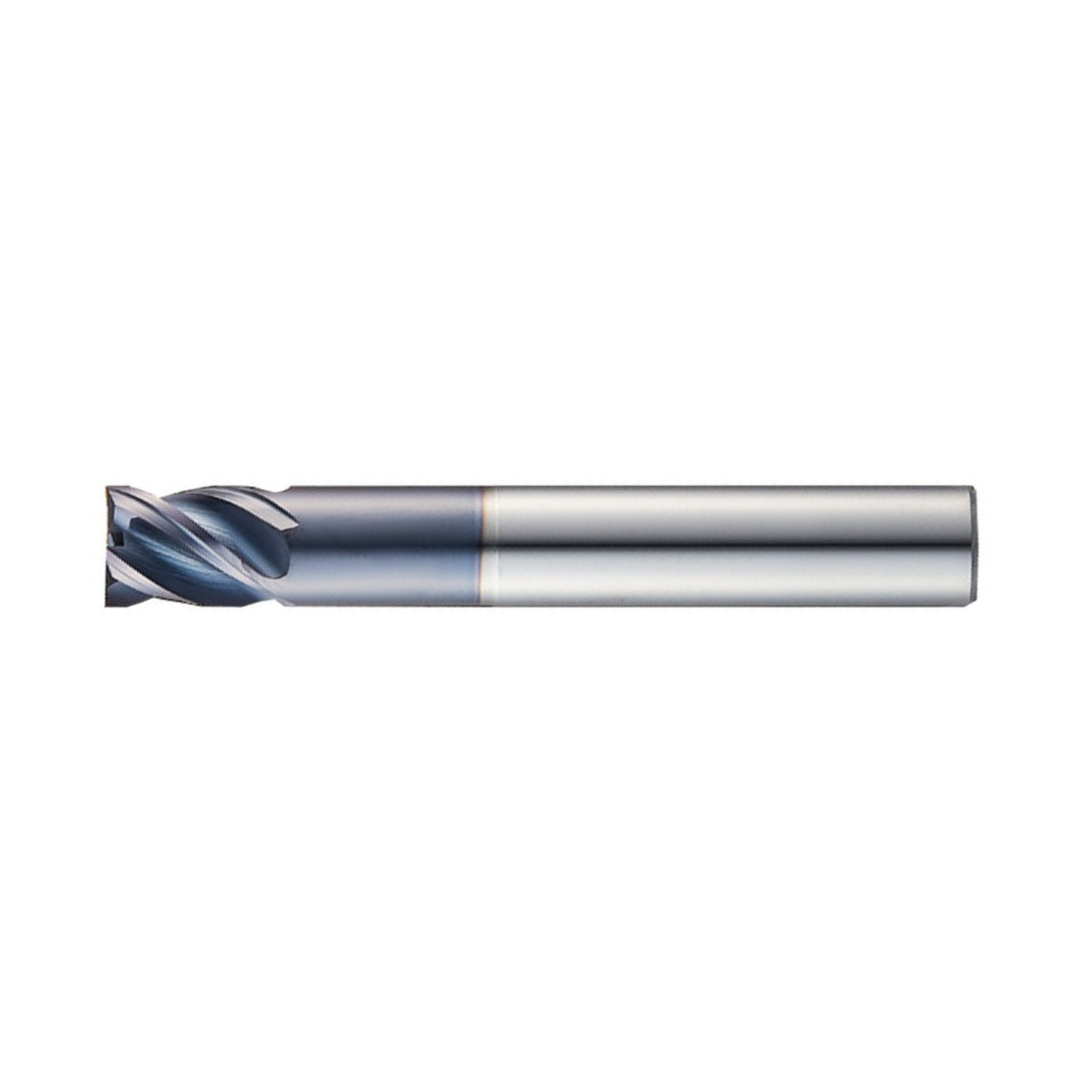

Widin Carbide End Mill for Stainless & Exotics is a 5 mm diameter, 4‑flute tool designed for stainless steels and exotic alloys. Its neck‑type design with a variable helix provides extended reach for deep slots and pockets while maintaining stable cutting action. Unequal index flutes promote efficient chip evacuation and deliver a smoother workpiece surface, even on challenging materials. A corner chamfer on the end face helps reduce cutting edge chipping and extend tool life.
- Unequal index flutes for smooth chip evacuation: Enhances chip control and contributes to a cleaner finish on hard-to-machine stainless and exotic materials.
- High-hardness carbide edge for wear resistance: Delivers long tool life and consistent performance under demanding cutting conditions.
- Corner chamfered end face for reduced edge chipping: Minimizes edge damage during initial cuts, improving starting reliability and overall durability.
In practice, this end mill combines reach, stability, and resilient cutting performance to help you achieve smoother finishes and dependable results when machining stainless steels and exotic alloys. Its thoughtful geometry and robust construction support efficient workflows, reduce rework, and empower you to complete precision work with confidence.
| Cutter Diameter | 5 |
| Number of Flutes | 4 |
| Flute Length | 6 |
| Overall Length | 50 |
| Shank Diameter | 6 |
| Reach | 18 |
| Neck Diameter | 4.8 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide End Mill For Stainless & Exotics - 4 Flute Variable Helix Neck Type Square Edge (XE514)
View full collection →You are viewing XE514050. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Reach | Neck Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| XE514010 | 1 | 4 | 2 | 45 | 4 | 10 | 0.8 | £17.86 | 5 days | |
| XE514020 | 2 | 4 | 3 | 45 | 4 | 12 | 1.8 | £17.86 | 5 days | |
| XE514030 | 3 | 4 | 4 | 50 | 6 | 14 | 2.8 | £21.46 | In Stock | |
| XE514040 | 4 | 4 | 5 | 50 | 6 | 16 | 3.8 | £21.46 | In Stock | |
| XE514050 Viewing | 5 | 4 | 6 | 50 | 6 | 18 | 4.8 | £21.46 | In Stock | |
| XE514060 | 6 | 4 | 7 | 50 | 6 | 20 | 5.8 | £21.46 | 5 days | |
| XE514080 | 8 | 4 | 9 | 60 | 8 | 26 | 7.8 | £32.22 | In Stock | |
| XE514100 | 10 | 4 | 11 | 70 | 10 | 31 | 9.8 | £47.36 | In Stock | |
| XE514120 | 12 | 4 | 13 | 75 | 12 | 37 | 11.8 | £71.68 | In Stock | |
| XE514160 | 16 | 4 | 17 | 90 | 16 | 43 | 15.8 | £211.84 | In Stock | |
| XE514200 | 20 | 4 | 21 | 100 | 20 | 53 | 19.8 | £365.90 | In Stock |
