Widin
|
Authorised UK Distributor

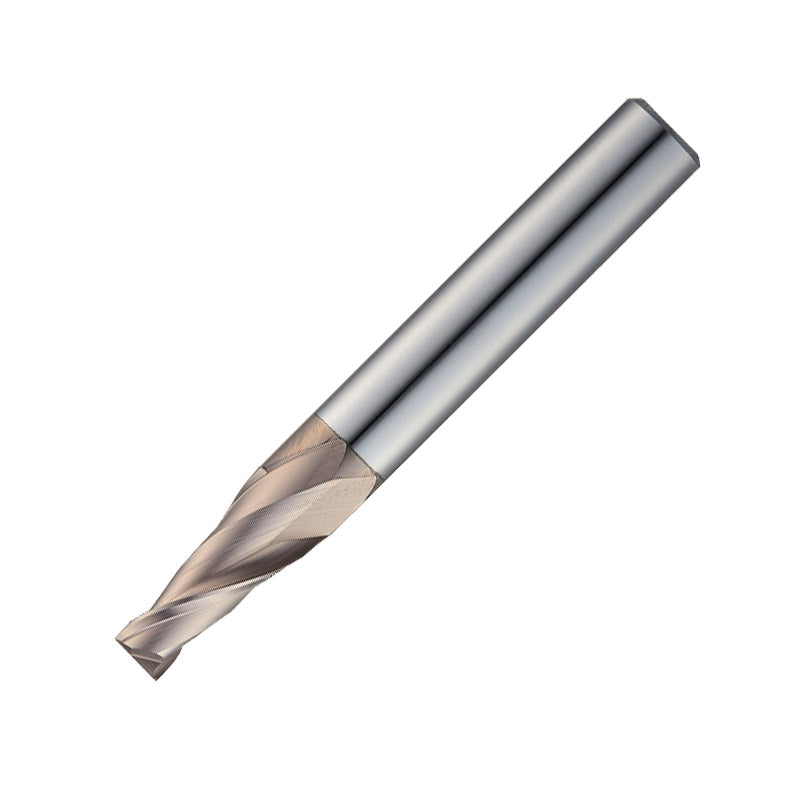

Widin Carbide Square End Mill For Mold & Die
2 Flute Tapered Neck (WTE502)
A versatile end mill designed for precision machining in mold and die applications. With a cutting diameter range of 0.3mm to 10.0mm and a cutting diameter tolerance of +0/-0.03mm, it offers precise and consistent cutting performance. One of its notable features is the choice of cutting length and taper angle available for all diameters, allowing for customization based on specific machining requirements. Crafted from the finest raw materials, this end mill exhibits exceptional wear resistance and machining capabilities, ensuring efficient material removal and extended tool life. The inclusion of a durable W coating further enhances its wear resistance, resulting in longer tool life and improved machining stability. This end mill is excellent for mold and die machining below 55 HRc, as well as pre-hardened steel, alloy steel, and carbon steel.
Click any SKU to view full product details, specifications and datasheets.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Taper Angle | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| UTE502003005 | 0.3 | 2 | 1.2 | 40 | 4 | 0.5° | £32.81 | 5 days |
|
| UTE50200301 | 0.3 | 2 | 1.2 | 40 | 4 | 1° | £32.81 | 5 days |
|
| UTE502003015 | 0.3 | 2 | 1.2 | 40 | 4 | 1.5° | £32.81 | 5 days |
|
| UTE50200302 | 0.3 | 2 | 1.2 | 40 | 4 | 2° | £32.81 | 5 days |
|
| UTE50200303 | 0.3 | 2 | 1.5 | 40 | 4 | 3° | £32.81 | 5 days |
|
| UTE50200305 | 0.3 | 2 | 1.5 | 40 | 4 | 5° | £32.81 | 5 days |
|
| UTE50200307 | 0.3 | 2 | 1.5 | 40 | 4 | 7° | £32.81 | 5 days |
|
| UTE50200310 | 0.3 | 2 | 1.5 | 40 | 4 | 10° | £32.81 | 5 days |
|
| UTE502004005 | 0.4 | 2 | 1.6 | 40 | 4 | 0.5° | £32.81 | 5 days |
|
| UTE50200401 | 0.4 | 2 | 1.6 | 40 | 4 | 1° | £32.81 | 5 days |
|
| UTE502004015 | 0.4 | 2 | 1.6 | 40 | 4 | 1.5° | £32.81 | 5 days |
|
| UTE50200402 | 0.4 | 2 | 1.6 | 40 | 4 | 2° | £32.81 | 5 days |
|
| UTE50200403 | 0.4 | 2 | 1.6 | 40 | 4 | 3° | £32.81 | 5 days |
|
| UTE50200405 | 0.4 | 2 | 2 | 40 | 4 | 5° | £32.81 | 5 days |
|
| UTE50200407 | 0.4 | 2 | 2 | 40 | 4 | 7° | £32.81 | 5 days |
|
| UTE50200410 | 0.4 | 2 | 2 | 40 | 4 | 10° | £32.81 | 5 days |
|
| UTE502005005 | 0.5 | 2 | 2 | 45 | 4 | 0.5° | £30.53 | 5 days |
|
| UTE50200501 | 0.5 | 2 | 2 | 45 | 4 | 1° | £30.53 | 5 days |
|
| UTE502005015 | 0.5 | 2 | 2 | 45 | 4 | 1.5° | £30.53 | 5 days |
|
| UTE50200502 | 0.5 | 2 | 2 | 45 | 4 | 2° | £30.53 | 5 days |
|
| UTE50200503 | 0.5 | 2 | 2 | 45 | 4 | 3° | £30.53 | 5 days |
|
| UTE50200505 | 0.5 | 2 | 2.5 | 45 | 4 | 5° | £30.53 | 5 days |
|
| UTE50200507 | 0.5 | 2 | 2.5 | 45 | 4 | 7° | £30.53 | 5 days |
|
| UTE50200510 | 0.5 | 2 | 2.5 | 45 | 4 | 10° | £30.53 | 5 days |
|
| UTE502006005 | 0.6 | 2 | 2.4 | 45 | 4 | 0.5° | £30.53 | 5 days |
|
| UTE50200601 | 0.6 | 2 | 2.4 | 45 | 4 | 1° | £30.53 | 5 days |
|
| UTE502006015 | 0.6 | 2 | 2.4 | 45 | 4 | 1.5° | £30.53 | 5 days |
|
| UTE50200602 | 0.6 | 2 | 2.4 | 45 | 4 | 2° | £30.53 | 5 days |
|
| UTE50200603 | 0.6 | 2 | 2.4 | 45 | 4 | 3° | £30.53 | 5 days |
|
| UTE50200605 | 0.6 | 2 | 3 | 45 | 4 | 5° | £30.53 | 5 days |
|
| UTE50200607 | 0.6 | 2 | 3 | 45 | 4 | 7° | £30.53 | 5 days |
|
| UTE50200610 | 0.6 | 2 | 3 | 45 | 4 | 10° | £30.53 | 5 days |
|
| UTE502007005 | 0.7 | 2 | 2.8 | 45 | 4 | 0.5° | £30.53 | 5 days |
|
| UTE50200701 | 0.7 | 2 | 2.8 | 45 | 4 | 1° | £30.53 | 5 days |
|
| UTE502007015 | 0.7 | 2 | 2.8 | 45 | 4 | 1.5° | £30.53 | 5 days |
|
| UTE50200702 | 0.7 | 2 | 2.8 | 45 | 4 | 2° | £30.53 | 5 days |
|
| UTE50200703 | 0.7 | 2 | 2.8 | 45 | 4 | 3° | £30.53 | 5 days |
|
| UTE50200705 | 0.7 | 2 | 3.5 | 45 | 4 | 5° | £30.53 | 5 days |
|
| UTE50200707 | 0.7 | 2 | 3.5 | 45 | 4 | 7° | £30.53 | 5 days |
|
| UTE50200710 | 0.7 | 2 | 3.5 | 45 | 4 | 10° | £30.53 | 5 days |
|
| UTE502008005 | 0.8 | 2 | 3.2 | 45 | 4 | 0.5° | £30.53 | 5 days |
|
| UTE50200801 | 0.8 | 2 | 3.2 | 45 | 4 | 1° | £30.53 | 5 days |
|
| UTE502008015 | 0.8 | 2 | 3.2 | 45 | 4 | 1.5° | £30.53 | 5 days |
|
| UTE50200802 | 0.8 | 2 | 3.2 | 45 | 4 | 2° | £30.53 | 5 days |
|
| UTE50200803 | 0.8 | 2 | 3.2 | 45 | 4 | 3° | £30.53 | 5 days |
|
| UTE50200805 | 0.8 | 2 | 4 | 45 | 4 | 5° | £30.53 | 5 days |
|
| UTE50200807 | 0.8 | 2 | 4 | 45 | 4 | 7° | £30.53 | 5 days |
|
| UTE50200810 | 0.8 | 2 | 4 | 45 | 4 | 10° | £30.53 | 5 days |
|
| UTE502010005 | 1 | 2 | 4 | 50 | 4 | 0.5° | £25.71 | 5 days |
|
| UTE50201001 | 1 | 2 | 4 | 50 | 4 | 1° | £25.71 | 5 days |
|
| UTE502010015 | 1 | 2 | 4 | 50 | 4 | 1.5° | £25.71 | 5 days |
|
| UTE50201002 | 1 | 2 | 6 | 50 | 4 | 2° | £25.71 | 5 days |
|
| UTE50201003 | 1 | 2 | 6 | 50 | 4 | 3° | £25.71 | 5 days |
|
| UTE50201005 | 1 | 2 | 8 | 50 | 4 | 5° | £25.71 | 5 days |
|
| UTE50201007 | 1 | 2 | 8 | 50 | 4 | 7° | £25.71 | 5 days |
|
| UTE50201010 | 1 | 2 | 8 | 50 | 4 | 10° | £25.71 | 5 days |
|
| UTE502015005 | 1.5 | 2 | 6 | 50 | 4 | 0.5° | £25.71 | 5 days |
|
| UTE50201501 | 1.5 | 2 | 6 | 50 | 4 | 1° | £25.71 | 5 days |
|
| UTE502015015 | 1.5 | 2 | 6 | 50 | 4 | 1.5° | £25.71 | 5 days |
|
| UTE50201502 | 1.5 | 2 | 8 | 50 | 4 | 2° | £25.71 | 5 days |
|
| UTE50201503 | 1.5 | 2 | 8 | 50 | 4 | 3° | £25.71 | 5 days |
|
| UTE50201505 | 1.5 | 2 | 10 | 50 | 4 | 5° | £25.71 | 5 days |
|
| UTE50201507 | 1.5 | 2 | 10 | 50 | 4 | 7° | £25.71 | 5 days |
|
| UTE50201510 | 1.5 | 2 | 10 | 50 | 6 | 10° | £29.07 | 5 days |
|
| UTE502020005 | 2 | 2 | 8 | 50 | 4 | 0.5° | £25.71 | 5 days |
|
| UTE50202001 | 2 | 2 | 8 | 50 | 4 | 1° | £25.71 | 5 days |
|
| UTE502020015 | 2 | 2 | 8 | 50 | 4 | 1.5° | £25.71 | 5 days |
|
| UTE50202002 | 2 | 2 | 10 | 50 | 4 | 2° | £25.71 | 5 days |
|
| UTE50202003 | 2 | 2 | 10 | 50 | 4 | 3° | £25.71 | 5 days |
|
| UTE50202005 | 2 | 2 | 12 | 50 | 6 | 5° | £29.07 | 5 days |
|
| UTE50202007 | 2 | 2 | 12 | 50 | 6 | 7° | £29.07 | 5 days |
|
| UTE50202010 | 2 | 2 | 12 | 50 | 8 | 10° | £46.97 | 5 days |
|
| UTE502025005 | 2.5 | 2 | 10 | 50 | 6 | 0.5° | £29.07 | 5 days |
|
| UTE50202501 | 2.5 | 2 | 10 | 50 | 6 | 1° | £29.07 | 5 days |
|
| UTE502025015 | 2.5 | 2 | 10 | 50 | 6 | 1.5° | £29.07 | 5 days |
|
| UTE50202502 | 2.5 | 2 | 12 | 50 | 6 | 2° | £29.07 | 5 days |
|
| UTE50202503 | 2.5 | 2 | 12 | 50 | 6 | 3° | £29.07 | 5 days |
|
| UTE50202505 | 2.5 | 2 | 14 | 50 | 6 | 5° | £29.07 | 5 days |
|
| UTE50202507 | 2.5 | 2 | 14 | 50 | 6 | 7° | £29.07 | 5 days |
|
| UTE50202510 | 2.5 | 2 | 14 | 50 | 8 | 10° | £46.97 | 5 days |
|
| UTE502030005 | 3 | 2 | 12 | 50 | 6 | 0.5° | £29.07 | 5 days |
|
| UTE50203001 | 3 | 2 | 12 | 50 | 6 | 1° | £29.07 | 5 days |
|
| UTE502030015 | 3 | 2 | 12 | 50 | 6 | 1.5° | £29.07 | 5 days |
|
| UTE50203002 | 3 | 2 | 14 | 50 | 6 | 2° | £29.07 | 5 days |
|
| UTE50203003 | 3 | 2 | 14 | 50 | 6 | 3° | £29.07 | 5 days |
|
| UTE50203005 | 3 | 2 | 16 | 50 | 6 | 5° | £29.07 | 5 days |
|
| UTE50203007 | 3 | 2 | 16 | 50 | 8 | 7° | £46.97 | 5 days |
|
| UTE50203010 | 3 | 2 | 16 | 50 | 10 | 10° | £62.12 | 5 days |
|
| UTE502040005 | 4 | 2 | 16 | 60 | 6 | 0.5° | £30.16 | 5 days |
|
| UTE50204001 | 4 | 2 | 16 | 60 | 6 | 1° | £30.16 | 5 days |
|
| UTE502040015 | 4 | 2 | 16 | 60 | 6 | 1.5° | £30.16 | 5 days |
|
| UTE50204002 | 4 | 2 | 16 | 60 | 6 | 2° | £30.16 | 5 days |
|
| UTE50204003 | 4 | 2 | 19 | 60 | 6 | 3° | £30.16 | 5 days |
|
| UTE50204005 | 4 | 2 | 22 | 65 | 8 | 5° | £49.59 | 5 days |
|
| UTE50204007 | 4 | 2 | 16 | 65 | 8 | 7° | £49.59 | 5 days |
|
| UTE50204010 | 4 | 2 | 17 | 65 | 10 | 10° | £65.86 | 5 days |
|
| UTE502060005 | 6 | 2 | 20 | 65 | 8 | 0.5° | £49.59 | 5 days |
|
| UTE50206001 | 6 | 2 | 20 | 65 | 8 | 1° | £49.59 | 5 days |
|
| UTE502060015 | 6 | 2 | 20 | 65 | 8 | 1.5° | £49.59 | 5 days |
|
| UTE50206002 | 6 | 2 | 20 | 65 | 8 | 2° | £49.59 | 5 days |
|
| UTE50206003 | 6 | 2 | 19 | 65 | 8 | 3° |
£21.82 |
In Stock |
|
| UTE50206005 | 6 | 2 | 22 | 75 | 10 | 5° | £68.39 | 5 days |
|
| UTE50206007 | 6 | 2 | 24 | 75 | 12 | 7° | £95.12 | 5 days |
|
| UTE50206010 | 6 | 2 | 17 | 75 | 12 | 10° | £95.12 | 5 days |
|
| UTE502070005 | 7 | 2 | 28 | 70 | 8 | 0.5° | £50.62 | 5 days |
|
| UTE50207001 | 7 | 2 | 28 | 70 | 8 | 1° | £50.62 | 5 days |
|
| UTE502070015 | 7 | 2 | 28 | 70 | 10 | 1.5° | £67.05 | 5 days |
|
| UTE50207002 | 7 | 2 | 28 | 80 | 10 | 2° | £69.89 | 5 days |
|
| UTE50207003 | 7 | 2 | 28 | 80 | 10 | 3° | £69.89 | 5 days |
|
| UTE50207005 | 7 | 2 | 28 | 80 | 12 | 5° | £95.44 | 5 days |
|
| UTE502080005 | 8 | 2 | 35 | 90 | 10 | 0.5° | £72.58 | 5 days |
|
| UTE50208001 | 8 | 2 | 35 | 90 | 10 | 1° | £72.58 | 5 days |
|
| UTE502080015 | 8 | 2 | 35 | 90 | 10 | 1.5° | £72.58 | 5 days |
|
| UTE50208002 | 8 | 2 | 28 | 90 | 10 | 2° | £72.58 | 5 days |
|
| UTE50208003 | 8 | 2 | 38 | 90 | 12 | 3° | £99.34 | 5 days |
|
| UTE50208005 | 8 | 2 | 45 | 100 | 16 | 5° | £297.81 | 5 days |
|
| UTE50208007 | 8 | 2 | 32 | 90 | 16 | 7° | £286.40 | 5 days |
|
| UTE50208010 | 8 | 2 | 34 | 100 | 20 | 10° | £457.61 | 5 days |
|
| UTE50208010S25 | 8 | 2 | 48 | 150 | 25 | 10° | £807.39 | 5 days |
|
| UTE502100005 | 10 | 2 | 40 | 90 | 12 | 0.5° | £99.34 | 5 days |
|
| UTE50210001 | 10 | 2 | 40 | 90 | 12 | 1° | £99.34 | 5 days |
|
| UTE502100015 | 10 | 2 | 38 | 90 | 12 | 1.5° | £99.34 | 5 days |
|
| UTE50210002 | 10 | 2 | 40 | 75 | 16 | 2° | £275.41 | 5 days |
|
| UTE50210003 | 10 | 2 | 40 | 100 | 16 | 3° | £286.40 | 5 days |
|
| UTE50210005 | 10 | 2 | 34 | 100 | 16 | 5° | £297.81 | 5 days |
|
| UTE50210007 | 10 | 2 | 40 | 90 | 20 | 7° | £439.78 | 5 days |
|
| UTE50210010 | 10 | 2 | 42 | 100 | 25 | 10° | £673.04 | 5 days |
|
