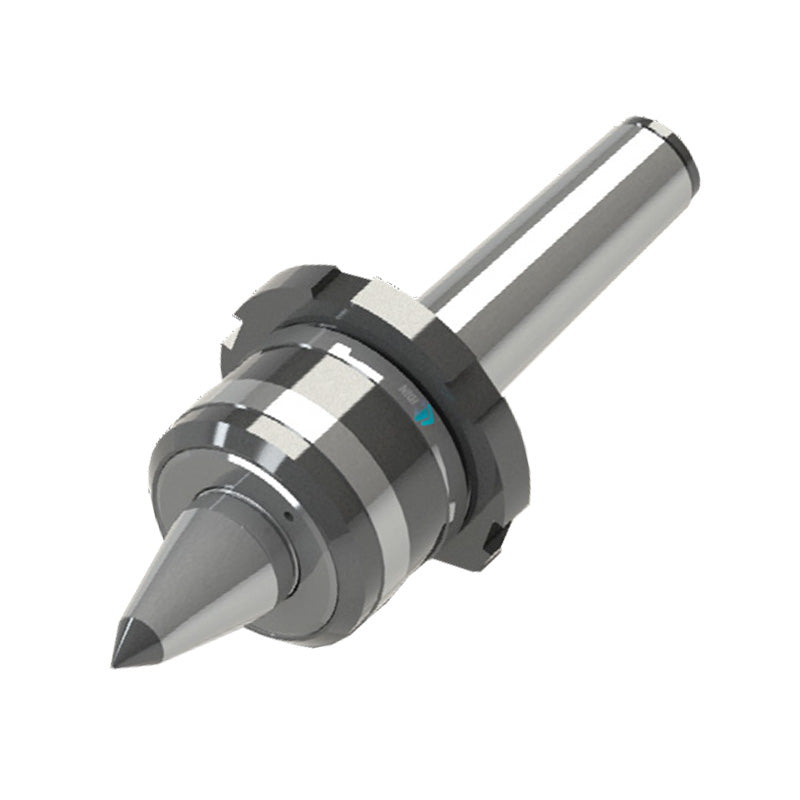

Widin Live Centre - Heavy Duty & Weight Requirements Lathe - Carbide Tipped - Nut Type - NKBCN Type


From
£382.53
View Products
Need Help?
Contact Sales

  • NC HEAVY LATHE - MINIMIZES BITE INTERFERANCE, CARBIDE TIPPED & NUT TYPE - LIVE CENTER
  • Morse Tapers Available - No. 3 - No. 6
  • Sealed to prevent the inflow of cutting oils and foreign substances
  • Upgraded bearings resulting in better durability and longer life compared to NC TYPE
  • High precision of rotational accuracy and durability through triplexed bearing structure
  • Shaft heated to 58 - 62 HRc
  • Run Out 0.00012" or 0.003mm


  • Product SKU Size Head Diameter Point Length Point Diameter Max RPM Max Load Concentricity GL L2 L3 L4 L5 C L N Price Stock
    LC-3NKBCN MT3 52 48 22 5000 980 0.003 23.825 42 5 95 80 10 175 70 £382.53

    5 days

    LC-4NKBCN MT4 66 53 32 3800 1400 0.003 31.267 57 6.5 116.5 101.5 14 218 85 £456.88

    5 days

    LC-5NKBCN MT5 80 65.5 40 3400 1900 0.005 44.399 57 6.5 129 129.5 18 258.5 98 £612.05

    5 days

    LC-6NKBCN MT6 132 78 65 1800 5100 0.005 63.384 100 8 186 182 25 368 165 £2,153.21

    5 days
