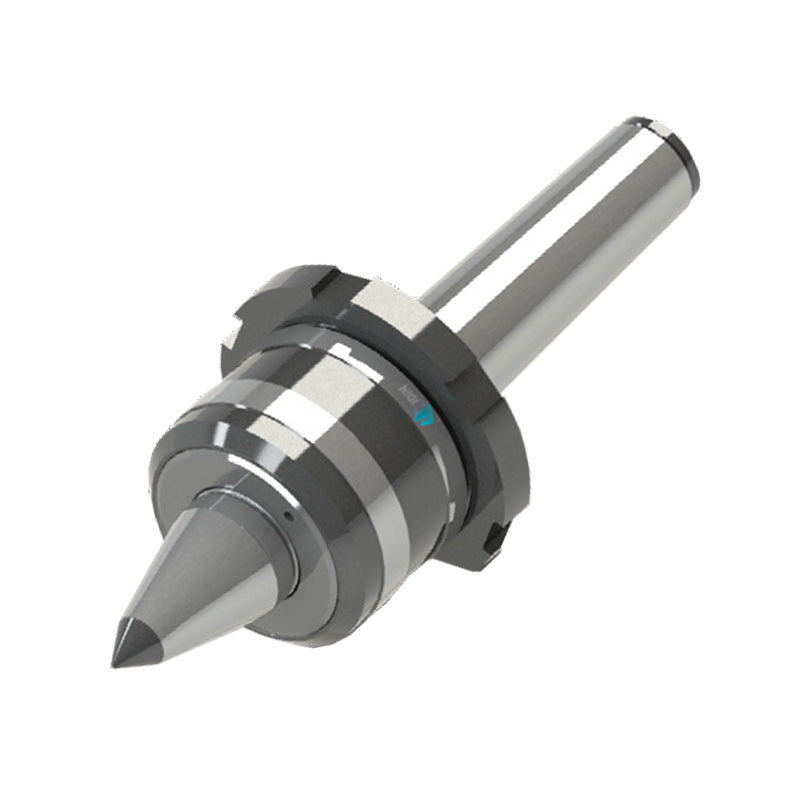

Widin Live Centre - Heavy Duty & Weight Requirements Lathe - Carbide Tipped - Nut Type - NKBCN Type - NO.5
| Size | MT5 |
| Head Diameter | 80 |
| Point Length | 65.5 |
| Point Diameter | 40 |
Learn more about Klarna
Description
Widin Live Centre is a heavy-duty live center for lathes designed to deliver stable support, precise rotation, and long service life in demanding turning tasks. Built for engineers, machinists, and hobbyists alike, it uses a carbide-tipped point and NKBCN nut-type body to minimize bite interference while maintaining accurate work over extended use.
- Carbide-Tipped NKBCN No.5 Nut-Type Live Centre: The carbide tip delivers durable, consistent point contact and helps maintain accuracy under heavy cutting loads, reducing wear and rework.
- Sealed Morse Taper Options No. 3 & No. 6: The sealed construction prevents inflow of cutting oils and contaminants, lowering maintenance needs and extending the center's life.
- Triplex Bearings with Hardened Shaft: Upgraded three-bearing arrangement delivers high rotational accuracy and durability, with the shaft hardened to 58–62 HRC and runout as low as 0.00012" (0.003 mm).
With the Widin Live Centre, you gain reliable support, reduced maintenance, and precise, consistent results in every turning job. The combination of carbide tipping, sealed design, and precision bearings provides dependable performance from first cut to final finish, helping you achieve better tolerances and smoother surfaces with fewer adjustments.
Part Numbers
- Protool Part Number
- LC-5NKBCN
- Brand
- Widin
- Category
- Live Centre
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Live Centre - Heavy Duty & Weight Requirements Lathe - Carbide Tipped - Nut Type - NKBCN Type
View full collection →You are viewing LC-5NKBCN. Click any other SKU to view its full details.

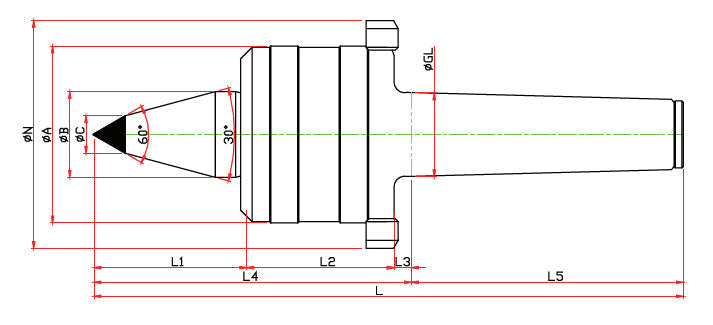

| Product SKU | Size | Head Diameter | Point Length | Point Diameter | Max RPM | Max Load | Concentricity | GL | L2 | L3 | L4 | L5 | C | L | N | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LC-3NKBCN | MT3 | 52 | 48 | 22 | 5000 | 980 | 0.003 | 23.825 | 42 | 5 | 95 | 80 | 10 | 175 | 70 | £360.88 | 5 days | |
| LC-4NKBCN | MT4 | 66 | 53 | 32 | 3800 | 1400 | 0.003 | 31.267 | 57 | 6.5 | 116.5 | 101.5 | 14 | 218 | 85 | £431.01 | 5 days | |
| LC-5NKBCN Viewing | MT5 | 80 | 65.5 | 40 | 3400 | 1900 | 0.005 | 44.399 | 57 | 6.5 | 129 | 129.5 | 18 | 258.5 | 98 | £577.42 | 5 days | |
| LC-6NKBCN | MT6 | 132 | 78 | 65 | 1800 | 5100 | 0.005 | 63.384 | 100 | 8 | 186 | 182 | 25 | 368 | 165 | £2,031.32 | 5 days |
