OSG Carbide Drill 5XD - WD1 Coated - With Oil Hole Drilling - Through Coolant - 4.7mm

Name: OSG Carbide Drill 5XD - WD1 Coated - With Oil Hole Drilling - Through Coolant - 4.7mm
Brand: OSG
SKU: OSG-30220470
Price: 72.56 GBP
Availability: InStock

SKU:OSG-30220470

Material Compatibility

Specifications at a glance

Drill Diameter	4.70
Flute Length	36
Overall Length	74
Shank Diameter	6

View all specifications ↓

Download Cutting Data

£72.56

Prices shown ex. VAT

1–2 days estimated lead time — subject to availability

View Other Sizes →

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Description

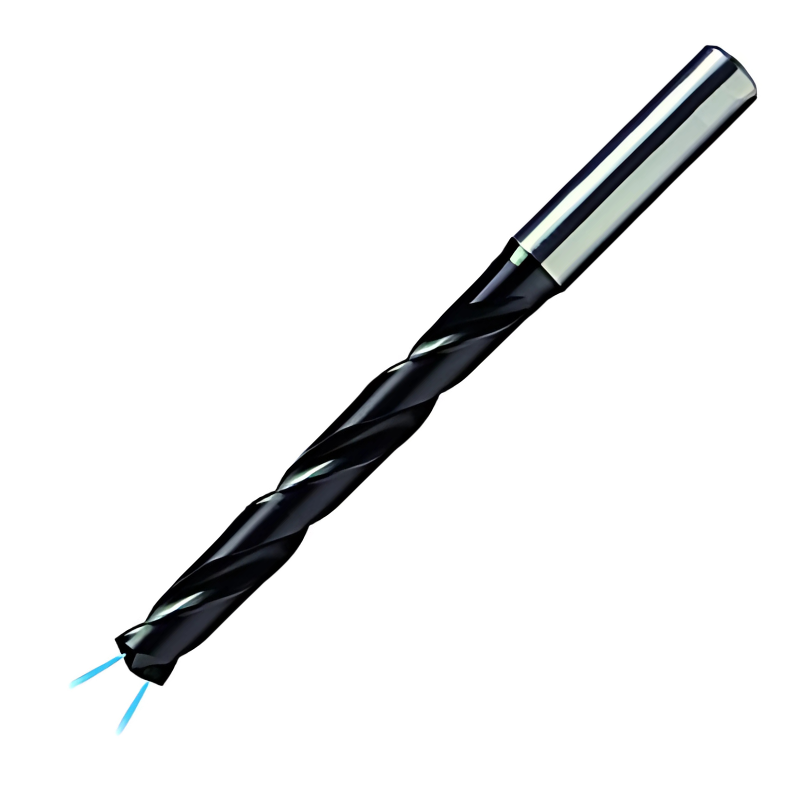

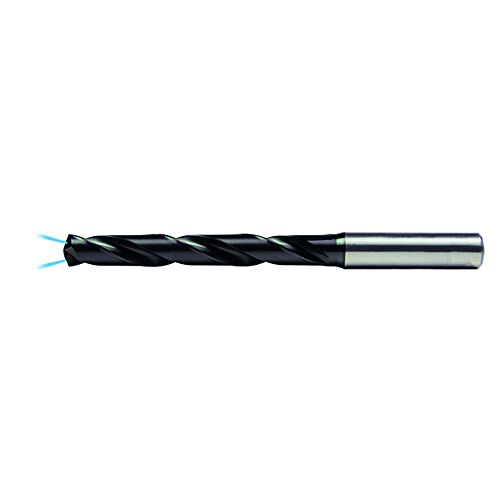

The OSG Carbide Drill 5XD, WD1 coated, is a 4.7 mm diameter through-coolant drill with oil-hole lubrication, engineered for deep-hole work across a range of materials. Its 5XD length-to-diameter geometry provides extended reach while maintaining rigidity, making it ideal for pockets and blind holes in production environments.

Extended 5XD reach for deep holes: The five-times-diameter length-to-diameter ratio allows drilling deeper without sacrificing stability, reducing tool changes and delivering consistent hole quality in challenging locations.
WD1 coating for longer tool life: The wear-resistant WD1 coating minimizes edge wear and heat buildup, helping the drill maintain sharpness through tough materials and longer production runs.
Oil hole drilling and through coolant for cooling and chip evacuation: Integrated oil holes and through-coolant capability flush chips away from the cutting edge, control temperatures, and improve hole finish for reliable performance over time.

This combination delivers faster cycle times, fewer tool changes, and dependable hole quality across demanding applications. The OSG carbide drill offers a durable, high-precision solution you can trust for everyday manufacturing and critical production tasks.

Part Numbers

Protool Part Number: OSG-30220470
Brand: OSG
Category: Drill

Cutting Data & Technical Datasheet

Delivery

Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.

Returns

14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.

Technical Support

Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.

Trade Accounts

Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

Ask our technical team about this tool

Full Range: OSG Carbide Drill 5XD - WD1 Coated - With Oil Hole Drilling - Through Coolant

View full collection →

You are viewing OSG-30220470. Click any other SKU to view its full details.

Product SKU	Drill Diameter	Flute Length	Overall Length	Shank Diameter	Coated	Coolant	Price	Stock

OSG-30220300	3.00	28	66	6	Coated	YES	£65.16	1-2 days
OSG-30220310	3.10	28	66	6	Coated	YES	£65.16	1-2 days
OSG-30220317	3.17 (1/8)	28	66	6	Coated	YES	£65.16	1-2 days
OSG-30220320	3.20	28	66	6	Coated	YES	£65.16	1-2 days
OSG-30220330	3.30	28	66	6	Coated	YES	£65.16	1-2 days
OSG-30220340	3.40	28	66	6	Coated	YES	£65.16	1-2 days
OSG-30220350	3.50	28	66	6	Coated	YES	£65.16	1-2 days
OSG-30220357	3.57 (5/32)	28	66	6	Coated	YES	£65.16	1-2 days
OSG-30220360	3.60	28	66	6	Coated	YES	£65.16	1-2 days
OSG-30220370	3.70	28	66	6	Coated	YES	£65.16	1-2 days
OSG-30220380	3.80	36	74	6	Coated	YES	£65.16	1-2 days
OSG-30220390	3.9	36	74	6	Coated	YES	£65.16	1-2 days
OSG-30220397	3.97 (5/32)	36	74	6	Coated	YES	£65.16	1-2 days
OSG-30220400	4.00	36	74	6	Coated	YES	£72.56	1-2 days
OSG-30220410	4.10	36	74	6	Coated	YES	£72.56	1-2 days
OSG-30220420	4.20	36	74	6	Coated	YES	£72.56	1-2 days
OSG-30220430	4.30	36	74	6	Coated	YES	£72.56	1-2 days
OSG-30220437	4.37 (11/64)	36	74	6	Coated	YES	£72.56	1-2 days
OSG-30220440	4.40	36	74	6	Coated	YES	£72.56	1-2 days
OSG-30220450	4.50	36	74	6	Coated	YES	£72.56	1-2 days
OSG-30220460	4.60	36	74	6	Coated	YES	£72.56	1-2 days
OSG-30220465	4.65	36	74	6	Coated	YES	£72.56	1-2 days
OSG-30220470 Viewing	4.70	36	74	6	Coated	YES	£72.56	1-2 days
OSG-30220476	4.76 (3/16)	44	82	6	Coated	YES	£72.56	1-2 days
OSG-30220480	4.80	44	82	6	Coated	YES	£72.56	1-2 days
OSG-30220490	4.90	44	82	6	Coated	YES	£72.56	1-2 days
OSG-30220500	5.00	44	82	6	Coated	YES	£72.56	1-2 days
OSG-30220510	5.10	44	82	6	Coated	YES	£72.56	1-2 days
OSG-30220516	5.16 (13/64)	44	82	6	Coated	YES	£72.56	1-2 days
OSG-30220520	5.20	44	82	6	Coated	YES	£72.56	1-2 days
OSG-30220530	5.30	44	82	6	Coated	YES	£72.56	1-2 days
OSG-30220540	5.40	44	82	6	Coated	YES	£72.56	1-2 days
OSG-30220550	5.50	44	82	6	Coated	YES	£72.56	1-2 days
OSG-30220555	5.55	44	82	6	Coated	YES	£72.56	1-2 days
OSG-30220556	5.56 (7/32)	44	82	6	Coated	YES	£72.56	1-2 days
OSG-30220560	5.60	44	82	6	Coated	YES	£72.56	1-2 days
OSG-30220570	5.70	44	82	6	Coated	YES	£72.56	1-2 days
OSG-30220580	5.80	44	82	6	Coated	YES	£72.56	1-2 days
OSG-30220590	5.90	44	82	6	Coated	YES	£72.56	1-2 days
OSG-30220595	5.95 (15/64)	53	91	8	Coated	YES	£72.56	1-2 days
OSG-30220600	6.00	53	91	8	Coated	YES	£72.56	1-2 days
OSG-30220610	6.10	53	91	8	Coated	YES	£82.78	1-2 days
OSG-30220620	6.20	53	91	8	Coated	YES	£82.78	1-2 days
OSG-30220630	6.30	53	91	8	Coated	YES	£82.78	1-2 days
OSG-30220635	6.35 (1/4)	53	91	8	Coated	YES	£82.78	1-2 days
OSG-30220640	6.40	53	91	8	Coated	YES	£82.78	1-2 days
OSG-30220650	6.50	53	91	8	Coated	YES	£82.78	1-2 days
OSG-30220660	6.60	53	91	8	Coated	YES	£82.78	1-2 days
OSG-30220670	6.70	53	91	8	Coated	YES	£82.78	1-2 days
OSG-30220675	6.75 (17/64)	53	91	8	Coated	YES	£82.78	1-2 days
OSG-30220680	6.80	53	91	8	Coated	YES	£82.78	1-2 days
OSG-30220690	6.90	53	91	8	Coated	YES	£82.78	1-2 days
OSG-30220700	7.00	53	91	8	Coated	YES	£82.78	1-2 days
OSG-30220710	7.10	53	91	8	Coated	YES	£82.78	1-2 days
OSG-30220714	7.14 (9/32)	53	91	8	Coated	YES	£82.78	1-2 days
OSG-30220720	7.20	53	91	8	Coated	YES	£82.78	1-2 days
OSG-30220730	7.30	53	91	8	Coated	YES	£82.78	1-2 days
OSG-30220740	7.40	53	91	8	Coated	YES	£82.78	1-2 days
OSG-30220750	7.50	53	91	8	Coated	YES	£82.78	1-2 days
OSG-30220754	7.54 (19/64)	53	91	8	Coated	YES	£82.78	1-2 days
OSG-30220760	7.60	53	91	8	Coated	YES	£82.78	1-2 days
OSG-30220770	7.70	53	91	8	Coated	YES	£82.78	1-2 days
OSG-30220780	7.80	53	91	8	Coated	YES	£82.78	1-2 days
OSG-30220790	7.90	53	91	8	Coated	YES	£82.78	1-2 days
OSG-30220794	7.94 (5/16)	61	103	8	Coated	YES	£82.78	1-2 days
OSG-30220800	8.00	61	103	10	Coated	YES	£82.78	1-2 days
OSG-30220810	8.10	61	103	10	Coated	YES	£91.66	1-2 days
OSG-30220820	8.20	61	103	10	Coated	YES	£91.66	1-2 days
OSG-30220830	8.30	61	103	10	Coated	YES	£91.66	1-2 days
OSG-30220833	8.33 (21/64)	61	103	10	Coated	YES	£91.66	1-2 days
OSG-30220840	8.40	61	103	10	Coated	YES	£91.66	1-2 days
OSG-30220850	8.50	61	103	10	Coated	YES	£91.66	1-2 days
OSG-30220860	8.60	61	103	10	Coated	YES	£91.66	1-2 days
OSG-30220870	8.70	61	103	10	Coated	YES	£91.66	1-2 days
OSG-30220873	8.73 (11/32)	61	103	10	Coated	YES	£91.66	1-2 days
OSG-30220880	8.80	61	103	10	Coated	YES	£91.66	1-2 days
OSG-30220890	8.90	61	103	10	Coated	YES	£91.66	1-2 days
OSG-30220900	9.00	61	103	10	Coated	YES	£91.66	1-2 days
OSG-30220910	9.10	61	103	10	Coated	YES	£91.66	1-2 days
OSG-30220913	9.13 (23/64)	61	103	10	Coated	YES	£91.66	1-2 days
OSG-30220920	9.20	61	103	10	Coated	YES	£91.66	1-2 days
OSG-30220930	9.30	61	103	10	Coated	YES	£91.66	1-2 days
OSG-30220940	9.40	61	103	10	Coated	YES	£91.66	1-2 days
OSG-30220950	9.50	61	103	10	Coated	YES	£91.66	1-2 days
OSG-30220952	9.52 (3/8)	61	103	10	Coated	YES	£91.66	1-2 days
OSG-30220960	9.60	61	103	10	Coated	YES	£91.66	1-2 days
OSG-30220970	9.70	61	103	10	Coated	YES	£91.66	1-2 days
OSG-30220980	9.80	61	103	10	Coated	YES	£91.66	1-2 days
OSG-30220990	9.90	61	103	10	Coated	YES	£91.66	1-2 days
OSG-30220992	9.92 (25/64)	71	118	12	Coated	YES	£91.66	1-2 days
OSG-30221000	10.00	71	118	12	Coated	YES	£91.66	1-2 days
OSG-30221010	10.10	71	118	12	Coated	YES	£132.24	1-2 days
OSG-30221020	10.20	71	118	12	Coated	YES	£132.24	1-2 days
OSG-30221030	10.30	71	118	12	Coated	YES	£132.24	1-2 days
OSG-30221032	10.32 (13/32)	71	118	12	Coated	YES	£132.24	1-2 days
OSG-30221040	10.40	71	118	12	Coated	YES	£132.24	1-2 days
OSG-30221050	10.50	71	118	12	Coated	YES	£132.24	1-2 days
OSG-30221060	10.60	71	118	12	Coated	YES	£132.24	1-2 days
OSG-30221070	10.70	71	118	12	Coated	YES	£132.24	1-2 days
OSG-30221072	10.72 (27/64)	71	118	12	Coated	YES	£132.24	1-2 days
OSG-30221080	10.80	71	118	12	Coated	YES	£132.24	1-2 days
OSG-30221090	10.90	71	118	12	Coated	YES	£132.24	1-2 days
OSG-30221100	11.00	71	118	12	Coated	YES	£132.24	1-2 days
OSG-30221110	11.10	71	118	12	Coated	YES	£132.24	1-2 days
OSG-30221111	11.11 (7/16)	71	118	12	Coated	YES	£132.24	1-2 days
OSG-30221120	11.20	71	118	12	Coated	YES	£132.24	1-2 days
OSG-30221130	11.30	71	118	12	Coated	YES	£132.24	1-2 days
OSG-30221140	11.40	71	118	12	Coated	YES	£132.24	1-2 days
OSG-30221150	11.50	71	118	12	Coated	YES	£132.24	1-2 days
OSG-30221151	11.51 (29/64)	71	118	12	Coated	YES	£132.24	1-2 days
OSG-30221160	11.60	71	118	12	Coated	YES	£132.24	1-2 days
OSG-30221170	11.70	71	118	12	Coated	YES	£132.24	1-2 days
OSG-30221180	11.80	71	118	12	Coated	YES	£132.24	1-2 days
OSG-30221190	11.90	71	118	12	Coated	YES	£132.24	1-2 days
OSG-30221191	11.91 (15/32)	77	124	14	Coated	YES	£132.24	1-2 days
OSG-30221200	12.00	77	124	14	Coated	YES	£132.24	1-2 days
OSG-30221230	12.3 (31/64)	77	124	14	Coated	YES	£179.05	1-2 days
OSG-30221250	12.50	77	124	14	Coated	YES	£179.05	1-2 days
OSG-30221270	12.7 (1/2)	77	124	14	Coated	YES	£179.05	1-2 days
OSG-30221300	13.00	77	124	14	Coated	YES	£179.05	1-2 days
OSG-30221350	13.50	77	124	14	Coated	YES	£179.05	1-2 days
OSG-30221400	14.00	83	133	16	Coated	YES	£179.05	1-2 days
OSG-30221429	14.29 (9/16)	83	133	16	Coated	YES	£272.61	1-2 days
OSG-30221450	14.50	83	133	16	Coated	YES	£272.61	1-2 days
OSG-30221500	15.00	83	133	16	Coated	YES	£272.61	1-2 days
OSG-30221550	15.50	93	133	18	Coated	YES	£272.61	1-2 days
OSG-30221587	15.87 (/8)	93	133	18	Coated	YES	£272.61	1-2 days
OSG-30221600	16.00	93	133	18	Coated	YES	£272.61	1-2 days
OSG-30221650	16.50	93	143	18	Coated	YES	£399.39	1-2 days
OSG-30221700	17.00	93	143	18	Coated	YES	£399.39	1-2 days
OSG-30221750	17.50	93	143	18	Coated	YES	£399.39	1-2 days
OSG-30221800	18.00	101	143	18	Coated	YES	£399.39	1-2 days
OSG-30221850	18.50	101	153	20	Coated	YES	£492.28	1-2 days
OSG-30221900	19.00	101	153	20	Coated	YES	£492.28	1-2 days
OSG-30221950	19.50	101	153	20	Coated	YES	£492.28	1-2 days
OSG-30222000	20.00	101	153	20	Coated	YES	£492.28	1-2 days
