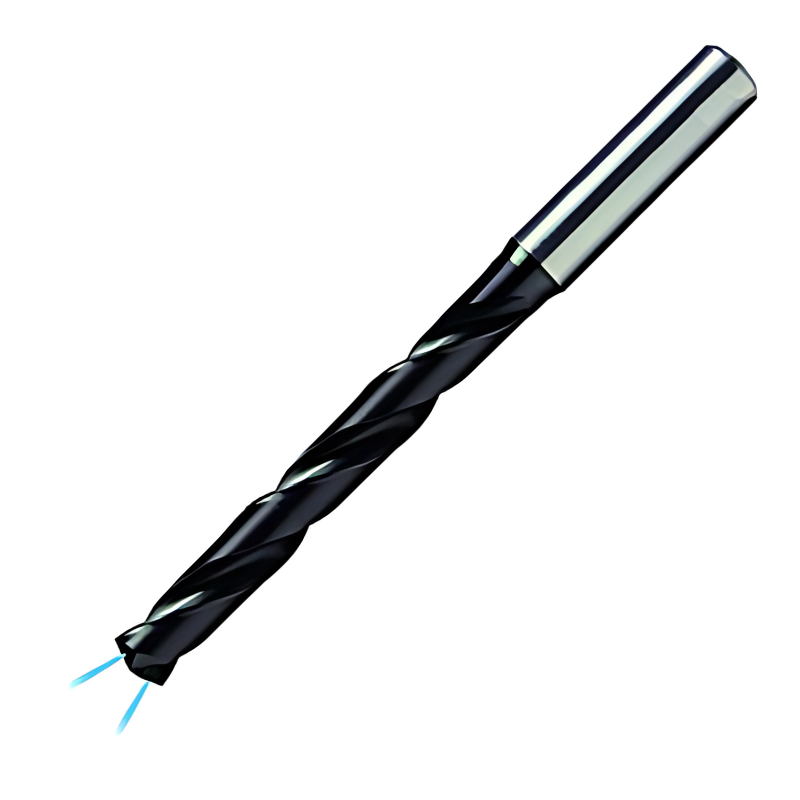

OSG Carbide Drill 5XD - WD1 Coated - With Oil Hole Drilling - Through Coolant - 20mm
SKU:OSG-30222000
The OSG Carbide Drill 5XD, 20mm diameter, is WD1-coated and engineered for oil-hole drilling with through-coolant delivery. Its 5XD length-to-diameter ratio enables deep-hole capability and stable...
Read more ↓
Material Compatibility
P
K
H
Specifications at a glance
View all specifications ↓
Download Cutting Data
| Drill Diameter | 20.00 |
| Flute Length | 101 |
| Overall Length | 153 |
| Shank Diameter | 20 |
£410.23
Prices shown ex. VAT
1–2 days estimated lead time
— subject to availability
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Description

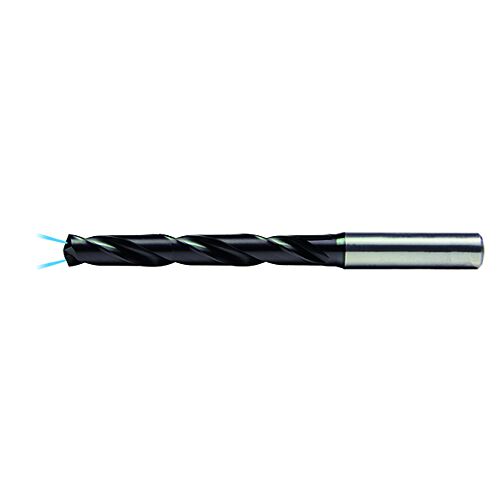

The OSG Carbide Drill 5XD, 20mm diameter, is WD1-coated and engineered for oil-hole drilling with through-coolant delivery. Its 5XD length-to-diameter ratio enables deep-hole capability and stable performance across a broad range of materials, all in a single setup.
- WD1 coating for extended wear life: The WD1 coating provides superior wear resistance, helping the drill maintain sharpness and deliver consistent hole quality in tough materials, reducing tool replacement and downtime.
- 5XD geometry for deep-hole versatility: Five times the diameter length offers reach into deeper workpieces while preserving rigidity and precision, minimizing rework and enabling efficient drilling in a single setup.
- Oil hole drilling with through-coolant: Integrated oil hole and through-coolant channels maximize coolant delivery to the cutting edge, improving chip evacuation, reducing heat, and extending tool life.
In practice, this drill supports faster, more predictable machining outcomes. The combination of WD1 wear resistance, 5XD depth capability, and through-coolant with oil-hole delivery reduces downtime, minimizes rework, and helps you achieve repeatable hole diameters across a wide range of materials, making it a reliable choice for production floors, job shops, and engineering teams seeking efficient workflows and high-quality results.
Part Numbers
- Protool Part Number
- OSG-30222000
- Brand
- OSG
- Category
- Drill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Ask our technical team about this tool
Full Range: OSG Carbide Drill 5XD - WD1 Coated - With Oil Hole Drilling - Through Coolant
View full collection →You are viewing OSG-30222000. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Flute Length | Overall Length | Shank Diameter | Coated | Coolant | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| OSG-30220300 | 3.00 | 28 | 66 | 6 | Coated | YES | £57.92 | 1-2 days | |
| OSG-30220310 | 3.10 | 28 | 66 | 6 | Coated | YES | £57.92 | 1-2 days | |
| OSG-30220317 | 3.17 (1/8) | 28 | 66 | 6 | Coated | YES | £57.92 | 1-2 days | |
| OSG-30220320 | 3.20 | 28 | 66 | 6 | Coated | YES | £57.92 | 1-2 days | |
| OSG-30220330 | 3.30 | 28 | 66 | 6 | Coated | YES | £57.92 | 1-2 days | |
| OSG-30220340 | 3.40 | 28 | 66 | 6 | Coated | YES | £57.92 | 1-2 days | |
| OSG-30220350 | 3.50 | 28 | 66 | 6 | Coated | YES | £57.92 | 1-2 days | |
| OSG-30220357 | 3.57 (5/32) | 28 | 66 | 6 | Coated | YES | £57.92 | 1-2 days | |
| OSG-30220360 | 3.60 | 28 | 66 | 6 | Coated | YES | £57.92 | 1-2 days | |
| OSG-30220370 | 3.70 | 28 | 66 | 6 | Coated | YES | £57.92 | 1-2 days | |
| OSG-30220380 | 3.80 | 36 | 74 | 6 | Coated | YES | £57.92 | 1-2 days | |
| OSG-30220390 | 3.9 | 36 | 74 | 6 | Coated | YES | £57.92 | 1-2 days | |
| OSG-30220397 | 3.97 (5/32) | 36 | 74 | 6 | Coated | YES | £57.92 | 1-2 days | |
| OSG-30220400 | 4.00 | 36 | 74 | 6 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220410 | 4.10 | 36 | 74 | 6 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220420 | 4.20 | 36 | 74 | 6 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220430 | 4.30 | 36 | 74 | 6 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220437 | 4.37 (11/64) | 36 | 74 | 6 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220440 | 4.40 | 36 | 74 | 6 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220450 | 4.50 | 36 | 74 | 6 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220460 | 4.60 | 36 | 74 | 6 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220465 | 4.65 | 36 | 74 | 6 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220470 | 4.70 | 36 | 74 | 6 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220476 | 4.76 (3/16) | 44 | 82 | 6 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220480 | 4.80 | 44 | 82 | 6 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220490 | 4.90 | 44 | 82 | 6 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220500 | 5.00 | 44 | 82 | 6 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220510 | 5.10 | 44 | 82 | 6 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220516 | 5.16 (13/64) | 44 | 82 | 6 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220520 | 5.20 | 44 | 82 | 6 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220530 | 5.30 | 44 | 82 | 6 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220540 | 5.40 | 44 | 82 | 6 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220550 | 5.50 | 44 | 82 | 6 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220555 | 5.55 | 44 | 82 | 6 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220556 | 5.56 (7/32) | 44 | 82 | 6 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220560 | 5.60 | 44 | 82 | 6 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220570 | 5.70 | 44 | 82 | 6 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220580 | 5.80 | 44 | 82 | 6 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220590 | 5.90 | 44 | 82 | 6 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220595 | 5.95 (15/64) | 53 | 91 | 8 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220600 | 6.00 | 53 | 91 | 8 | Coated | YES | £64.49 | 1-2 days | |
| OSG-30220610 | 6.10 | 53 | 91 | 8 | Coated | YES | £73.58 | 1-2 days | |
| OSG-30220620 | 6.20 | 53 | 91 | 8 | Coated | YES | £73.58 | 1-2 days | |
| OSG-30220630 | 6.30 | 53 | 91 | 8 | Coated | YES | £73.58 | 1-2 days | |
| OSG-30220635 | 6.35 (1/4) | 53 | 91 | 8 | Coated | YES | £73.58 | 1-2 days | |
| OSG-30220640 | 6.40 | 53 | 91 | 8 | Coated | YES | £73.58 | 1-2 days | |
| OSG-30220650 | 6.50 | 53 | 91 | 8 | Coated | YES | £73.58 | 1-2 days | |
| OSG-30220660 | 6.60 | 53 | 91 | 8 | Coated | YES | £73.58 | 1-2 days | |
| OSG-30220670 | 6.70 | 53 | 91 | 8 | Coated | YES | £73.58 | 1-2 days | |
| OSG-30220675 | 6.75 (17/64) | 53 | 91 | 8 | Coated | YES | £73.58 | 1-2 days | |
| OSG-30220680 | 6.80 | 53 | 91 | 8 | Coated | YES | £73.58 | 1-2 days | |
| OSG-30220690 | 6.90 | 53 | 91 | 8 | Coated | YES | £73.58 | 1-2 days | |
| OSG-30220700 | 7.00 | 53 | 91 | 8 | Coated | YES | £73.58 | 1-2 days | |
| OSG-30220710 | 7.10 | 53 | 91 | 8 | Coated | YES | £73.58 | 1-2 days | |
| OSG-30220714 | 7.14 (9/32) | 53 | 91 | 8 | Coated | YES | £73.58 | 1-2 days | |
| OSG-30220720 | 7.20 | 53 | 91 | 8 | Coated | YES | £73.58 | 1-2 days | |
| OSG-30220730 | 7.30 | 53 | 91 | 8 | Coated | YES | £73.58 | 1-2 days | |
| OSG-30220740 | 7.40 | 53 | 91 | 8 | Coated | YES | £73.58 | 1-2 days | |
| OSG-30220750 | 7.50 | 53 | 91 | 8 | Coated | YES | £73.58 | 1-2 days | |
| OSG-30220754 | 7.54 (19/64) | 53 | 91 | 8 | Coated | YES | £73.58 | 1-2 days | |
| OSG-30220760 | 7.60 | 53 | 91 | 8 | Coated | YES | £73.58 | 1-2 days | |
| OSG-30220770 | 7.70 | 53 | 91 | 8 | Coated | YES | £73.58 | 1-2 days | |
| OSG-30220780 | 7.80 | 53 | 91 | 8 | Coated | YES | £73.58 | 1-2 days | |
| OSG-30220790 | 7.90 | 53 | 91 | 8 | Coated | YES | £73.58 | 1-2 days | |
| OSG-30220794 | 7.94 (5/16) | 61 | 103 | 8 | Coated | YES | £73.58 | 1-2 days | |
| OSG-30220800 | 8.00 | 61 | 103 | 10 | Coated | YES | £73.58 | 1-2 days | |
| OSG-30220810 | 8.10 | 61 | 103 | 10 | Coated | YES | £81.48 | 1-2 days | |
| OSG-30220820 | 8.20 | 61 | 103 | 10 | Coated | YES | £81.48 | 1-2 days | |
| OSG-30220830 | 8.30 | 61 | 103 | 10 | Coated | YES | £81.48 | 1-2 days | |
| OSG-30220833 | 8.33 (21/64) | 61 | 103 | 10 | Coated | YES | £81.48 | 1-2 days | |
| OSG-30220840 | 8.40 | 61 | 103 | 10 | Coated | YES | £81.48 | 1-2 days | |
| OSG-30220850 | 8.50 | 61 | 103 | 10 | Coated | YES | £81.48 | 1-2 days | |
| OSG-30220860 | 8.60 | 61 | 103 | 10 | Coated | YES | £81.48 | 1-2 days | |
| OSG-30220870 | 8.70 | 61 | 103 | 10 | Coated | YES | £81.48 | 1-2 days | |
| OSG-30220873 | 8.73 (11/32) | 61 | 103 | 10 | Coated | YES | £81.48 | 1-2 days | |
| OSG-30220880 | 8.80 | 61 | 103 | 10 | Coated | YES | £81.48 | 1-2 days | |
| OSG-30220890 | 8.90 | 61 | 103 | 10 | Coated | YES | £81.48 | 1-2 days | |
| OSG-30220900 | 9.00 | 61 | 103 | 10 | Coated | YES | £81.48 | 1-2 days | |
| OSG-30220910 | 9.10 | 61 | 103 | 10 | Coated | YES | £81.48 | 1-2 days | |
| OSG-30220913 | 9.13 (23/64) | 61 | 103 | 10 | Coated | YES | £81.48 | 1-2 days | |
| OSG-30220920 | 9.20 | 61 | 103 | 10 | Coated | YES | £81.48 | 1-2 days | |
| OSG-30220930 | 9.30 | 61 | 103 | 10 | Coated | YES | £81.48 | 1-2 days | |
| OSG-30220940 | 9.40 | 61 | 103 | 10 | Coated | YES | £81.48 | 1-2 days | |
| OSG-30220950 | 9.50 | 61 | 103 | 10 | Coated | YES | £81.48 | 1-2 days | |
| OSG-30220952 | 9.52 (3/8) | 61 | 103 | 10 | Coated | YES | £81.48 | 1-2 days | |
| OSG-30220960 | 9.60 | 61 | 103 | 10 | Coated | YES | £81.48 | 1-2 days | |
| OSG-30220970 | 9.70 | 61 | 103 | 10 | Coated | YES | £81.48 | 1-2 days | |
| OSG-30220980 | 9.80 | 61 | 103 | 10 | Coated | YES | £81.48 | 1-2 days | |
| OSG-30220990 | 9.90 | 61 | 103 | 10 | Coated | YES | £81.48 | 1-2 days | |
| OSG-30220992 | 9.92 (25/64) | 71 | 118 | 12 | Coated | YES | £81.48 | 1-2 days | |
| OSG-30221000 | 10.00 | 71 | 118 | 12 | Coated | YES | £81.48 | 1-2 days | |
| OSG-30221010 | 10.10 | 71 | 118 | 12 | Coated | YES | £117.55 | 1-2 days | |
| OSG-30221020 | 10.20 | 71 | 118 | 12 | Coated | YES | £117.55 | 1-2 days | |
| OSG-30221030 | 10.30 | 71 | 118 | 12 | Coated | YES | £117.55 | 1-2 days | |
| OSG-30221032 | 10.32 (13/32) | 71 | 118 | 12 | Coated | YES | £117.55 | 1-2 days | |
| OSG-30221040 | 10.40 | 71 | 118 | 12 | Coated | YES | £117.55 | 1-2 days | |
| OSG-30221050 | 10.50 | 71 | 118 | 12 | Coated | YES | £117.55 | 1-2 days | |
| OSG-30221060 | 10.60 | 71 | 118 | 12 | Coated | YES | £117.55 | 1-2 days | |
| OSG-30221070 | 10.70 | 71 | 118 | 12 | Coated | YES | £117.55 | 1-2 days | |
| OSG-30221072 | 10.72 (27/64) | 71 | 118 | 12 | Coated | YES | £117.55 | 1-2 days | |
| OSG-30221080 | 10.80 | 71 | 118 | 12 | Coated | YES | £117.55 | 1-2 days | |
| OSG-30221090 | 10.90 | 71 | 118 | 12 | Coated | YES | £117.55 | 1-2 days | |
| OSG-30221100 | 11.00 | 71 | 118 | 12 | Coated | YES | £117.55 | 1-2 days | |
| OSG-30221110 | 11.10 | 71 | 118 | 12 | Coated | YES | £117.55 | 1-2 days | |
| OSG-30221111 | 11.11 (7/16) | 71 | 118 | 12 | Coated | YES | £117.55 | 1-2 days | |
| OSG-30221120 | 11.20 | 71 | 118 | 12 | Coated | YES | £117.55 | 1-2 days | |
| OSG-30221130 | 11.30 | 71 | 118 | 12 | Coated | YES | £117.55 | 1-2 days | |
| OSG-30221140 | 11.40 | 71 | 118 | 12 | Coated | YES | £117.55 | 1-2 days | |
| OSG-30221150 | 11.50 | 71 | 118 | 12 | Coated | YES | £117.55 | 1-2 days | |
| OSG-30221151 | 11.51 (29/64) | 71 | 118 | 12 | Coated | YES | £117.55 | 1-2 days | |
| OSG-30221160 | 11.60 | 71 | 118 | 12 | Coated | YES | £117.55 | 1-2 days | |
| OSG-30221170 | 11.70 | 71 | 118 | 12 | Coated | YES | £117.55 | 1-2 days | |
| OSG-30221180 | 11.80 | 71 | 118 | 12 | Coated | YES | £117.55 | 1-2 days | |
| OSG-30221190 | 11.90 | 71 | 118 | 12 | Coated | YES | £117.55 | 1-2 days | |
| OSG-30221191 | 11.91 (15/32) | 77 | 124 | 14 | Coated | YES | £117.55 | 1-2 days | |
| OSG-30221200 | 12.00 | 77 | 124 | 14 | Coated | YES | £117.55 | 1-2 days | |
| OSG-30221230 | 12.3 (31/64) | 77 | 124 | 14 | Coated | YES | £159.16 | 1-2 days | |
| OSG-30221250 | 12.50 | 77 | 124 | 14 | Coated | YES | £159.16 | 1-2 days | |
| OSG-30221270 | 12.7 (1/2) | 77 | 124 | 14 | Coated | YES | £159.16 | 1-2 days | |
| OSG-30221300 | 13.00 | 77 | 124 | 14 | Coated | YES | £159.16 | 1-2 days | |
| OSG-30221350 | 13.50 | 77 | 124 | 14 | Coated | YES | £159.16 | 1-2 days | |
| OSG-30221400 | 14.00 | 83 | 133 | 16 | Coated | YES | £159.16 | 1-2 days | |
| OSG-30221429 | 14.29 (9/16) | 83 | 133 | 16 | Coated | YES | £227.17 | 1-2 days | |
| OSG-30221450 | 14.50 | 83 | 133 | 16 | Coated | YES | £227.17 | 1-2 days | |
| OSG-30221500 | 15.00 | 83 | 133 | 16 | Coated | YES | £227.17 | 1-2 days | |
| OSG-30221550 | 15.50 | 93 | 133 | 18 | Coated | YES | £227.17 | 1-2 days | |
| OSG-30221587 | 15.87 (/8) | 93 | 133 | 18 | Coated | YES | £227.17 | 1-2 days | |
| OSG-30221600 | 16.00 | 93 | 133 | 18 | Coated | YES | £227.17 | 1-2 days | |
| OSG-30221650 | 16.50 | 93 | 143 | 18 | Coated | YES | £332.82 | 1-2 days | |
| OSG-30221700 | 17.00 | 93 | 143 | 18 | Coated | YES | £332.82 | 1-2 days | |
| OSG-30221750 | 17.50 | 93 | 143 | 18 | Coated | YES | £332.82 | 1-2 days | |
| OSG-30221800 | 18.00 | 101 | 143 | 18 | Coated | YES | £332.82 | 1-2 days | |
| OSG-30221850 | 18.50 | 101 | 153 | 20 | Coated | YES | £410.23 | 1-2 days | |
| OSG-30221900 | 19.00 | 101 | 153 | 20 | Coated | YES | £410.23 | 1-2 days | |
| OSG-30221950 | 19.50 | 101 | 153 | 20 | Coated | YES | £410.23 | 1-2 days | |
| OSG-30222000 Viewing | 20.00 | 101 | 153 | 20 | Coated | YES | £410.23 | 1-2 days |
No products match your filters.
