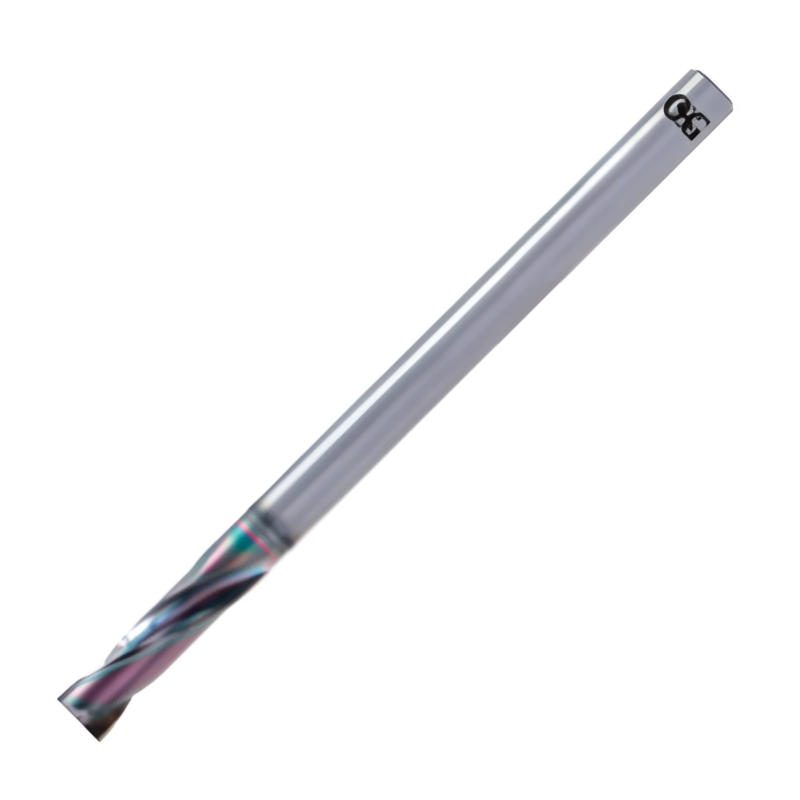

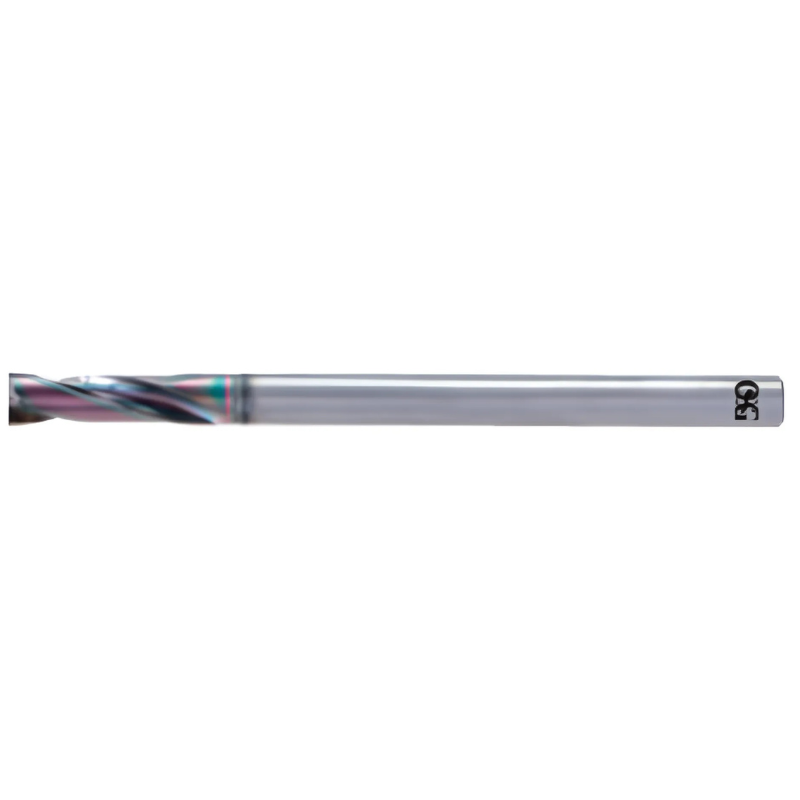

OSG Flat Bottom Carbide Drill - Solid 2xD Long Length - EGIAS Coated - 3.60mm
SKU:OSG-3332360
The OSG Flat Bottom Carbide Drill is built for engineers and machinists who need deep, precise flat-bottom holes with reliable performance. With a solid carbide core, a 2xD long length, and an EGI...
Read more ↓
Material Compatibility
P
M
K
N
H
Specification
| Drill Diameter | 3.60 |
| Flute Length | 16 |
| Overall Length | 100 |
| Shank Diameter | 6 |
£86.40
Prices shown ex. VAT
In Stock— only 1 left
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna

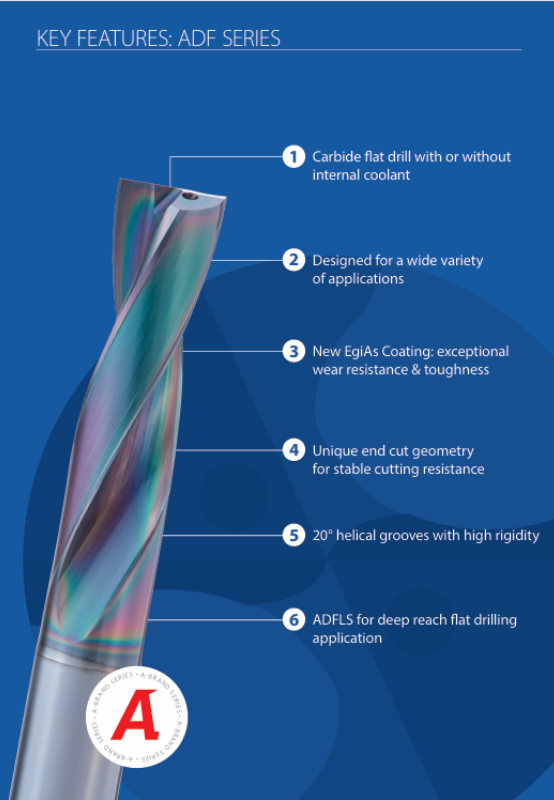

The OSG Flat Bottom Carbide Drill is built for engineers and machinists who need deep, precise flat-bottom holes with reliable performance. With a solid carbide core, a 2xD long length, and an EGIAS coating, this drill delivers extended reach and consistent accuracy in demanding applications.
- Diameter: 3.60 mm
- Length: Solid 2xD long length for extended reach while preserving rigidity
- Material: Solid carbide construction for strength and reliability
- Coating: EGIAS coating for wear resistance and high-speed performance
- Geometry: Flat bottom design for precise flat-bottom holes and minimal burr at depth
- Applications: Effective on steels, alloys, and hardened metals
With its extended reach and robust carbide core, this drill maintains accuracy and stability when drilling deeper holes. The EGIAS coating reduces wear and heat, enhancing tool life for high-speed drilling while delivering clean, burr-minimized flat-bottom holes at greater depths.
| Drill Diameter | 3.60 |
| Flute Length | 16 |
| Overall Length | 100 |
| Shank Diameter | 6 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: OSG Flat Bottom Carbide Drills - Solid 2xD Long Length - EGIAS Coated
View full collection →You are viewing OSG-3332360. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Flute Length | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|
| OSG-3332300 | 3.00 | 15 | 100 | 6 | £77.23 | In Stock | |
| OSG-3332310 | 3.10 | 15 | 100 | 6 | £82.45 | In Stock | |
| OSG-3332320 | 3.20 | 15 | 100 | 6 | £82.45 | In Stock | |
| OSG-3332330 | 3.30 | 15 | 100 | 6 | £82.45 | In Stock | |
| OSG-3332340 | 3.40 | 16 | 100 | 6 | £82.45 | In Stock | |
| OSG-3332350 | 3.50 | 16 | 100 | 6 | £82.45 | In Stock | |
| OSG-3332360 Viewing | 3.60 | 16 | 100 | 6 | £86.40 | In Stock | |
| OSG-3332370 | 3.70 | 16 | 100 | 6 | £86.40 | In Stock | |
| OSG-3332380 | 3.80 | 19 | 100 | 6 | £86.40 | In Stock | |
| OSG-3332390 | 3.90 | 19 | 100 | 6 | £86.40 | In Stock | |
| OSG-3332400 | 4.00 | 19 | 100 | 6 | £86.40 | In Stock | |
| OSG-3332410 | 4.10 | 19 | 100 | 6 | £89.49 | In Stock | |
| OSG-3332420 | 4.20 | 21 | 100 | 6 | £89.49 | In Stock | |
| OSG-3332430 | 4.30 | 21 | 100 | 6 | £89.49 | In Stock | |
| OSG-3332440 | 4.40 | 21 | 100 | 6 | £89.49 | In Stock | |
| OSG-3332450 | 4.50 | 21 | 100 | 6 | £89.49 | In Stock | |
| OSG-3332460 | 4.60 | 21 | 100 | 6 | £95.09 | In Stock | |
| OSG-3332470 | 4.70 | 21 | 100 | 6 | £95.09 | In Stock | |
| OSG-3332480 | 4.80 | 24 | 100 | 6 | £95.09 | In Stock | |
| OSG-3332490 | 4.90 | 24 | 100 | 6 | £95.09 | In Stock | |
| OSG-3332500 | 5.00 | 24 | 110 | 6 | £97.17 | In Stock | |
| OSG-3332510 | 5.10 | 24 | 110 | 6 | £102.16 | In Stock | |
| OSG-3332520 | 5.20 | 24 | 110 | 6 | £102.16 | In Stock | |
| OSG-3332530 | 5.30 | 24 | 110 | 6 | £102.16 | In Stock | |
| OSG-3332540 | 5.40 | 27 | 110 | 6 | £102.16 | In Stock | |
| OSG-3332550 | 5.50 | 27 | 110 | 6 | £102.16 | In Stock | |
| OSG-3332560 | 5.60 | 27 | 110 | 6 | £106.71 | In Stock | |
| OSG-3332570 | 5.70 | 27 | 110 | 6 | £106.71 | In Stock | |
| OSG-3332580 | 5.80 | 27 | 110 | 6 | £106.71 | In Stock | |
| OSG-3332590 | 5.90 | 27 | 110 | 6 | £106.71 | In Stock | |
| OSG-3332600 | 6.00 | 27 | 110 | 6 | £108.60 | In Stock | |
| OSG-3332650 | 6.50 | 30 | 120 | 6 | £110.33 | In Stock | |
| OSG-3332680 | 6.80 | 30 | 120 | 6 | £116.79 | In Stock | |
| OSG-3332690 | 6.90 | 30 | 120 | 6 | £116.79 | In Stock | |
| OSG-3332700 | 7.00 | 30 | 120 | 6 | £116.79 | In Stock | |
| OSG-3332740 | 7.40 | 34 | 130 | 6 | £127.63 | In Stock | |
| OSG-3332750 | 7.50 | 34 | 130 | 6 | £127.54 | In Stock | |
| OSG-3332780 | 7.80 | 34 | 130 | 6 | £133.21 | In Stock | |
| OSG-3332800 | 8.00 | 34 | 130 | 8 | £136.51 | In Stock | |
| OSG-3332850 | 8.50 | 38 | 140 | 8 | £144.15 | In Stock | |
| OSG-3332860 | 8.60 | 38 | 140 | 8 | £149.86 | In Stock | |
| OSG-3332880 | 8.80 | 38 | 140 | 8 | £149.86 | In Stock | |
| OSG-3332900 | 9.00 | 38 | 140 | 8 | £149.86 | In Stock | |
| OSG-3332920 | 9.20 | 42 | 150 | 8 | £160.69 | In Stock | |
| OSG-3332950 | 9.50 | 42 | 150 | 8 | £160.69 | In Stock | |
| OSG-3332980 | 9.80 | 42 | 150 | 8 | £168.38 | In Stock | |
| OSG-3333000 | 10.00 | 42 | 150 | 10 | £179.41 | In Stock | |
| OSG-3333030 | 10.30 | 46 | 160 | 10 | £185.97 | In Stock | |
| OSG-3333040 | 10.40 | 46 | 160 | 10 | £186.12 | In Stock | |
| OSG-3333050 | 10.50 | 46 | 160 | 10 | £185.97 | In Stock | |
| OSG-3333080 | 10.80 | 46 | 160 | 10 | £193.76 | In Stock | |
| OSG-3333100 | 11.00 | 46 | 160 | 10 | £193.76 | In Stock | |
| OSG-3333110 | 11.10 | 50 | 170 | 10 | £205.41 | In Stock | |
| OSG-3333150 | 11.50 | 50 | 170 | 10 | £205.41 | In Stock | |
| OSG-3333180 | 11.80 | 50 | 170 | 10 | £210.20 | In Stock | |
| OSG-3333200 | 12.00 | 50 | 170 | 12 | £228.93 | In Stock | |
| OSG-3333250 | 12.50 | 56 | 180 | 12 | £255.91 | In Stock | |
| OSG-3333300 | 13.00 | 56 | 180 | 12 | £266.37 | In Stock | |
| OSG-3333350 | 13.50 | 60 | 190 | 12 | £355.37 | In Stock | |
| OSG-3333400 | 14.00 | 60 | 190 | 12 | £357.62 | In Stock | |
| OSG-3333450 | 14.50 | 64 | 200 | 12 | £418.09 | In Stock | |
| OSG-3333500 | 15.00 | 64 | 200 | 12 | £418.09 | In Stock | |
| OSG-3333550 | 15.50 | 68 | 210 | 12 | £559.65 | In Stock | |
| OSG-3333600 | 16.00 | 68 | 210 | 16 | £559.65 | In Stock | |
| OSG-3333650 | 16.50 | 74 | 220 | 16 | £617.79 | In Stock | |
| OSG-3333700 | 17.00 | 74 | 220 | 16 | £617.79 | In Stock | |
| OSG-3333750 | 17.50 | 78 | 230 | 16 | £805.83 | In Stock | |
| OSG-3333800 | 18.00 | 78 | 230 | 16 | £845.28 | In Stock | |
| OSG-3333850 | 18.50 | 84 | 240 | 16 | £877.38 | In Stock | |
| OSG-3333900 | 19.00 | 84 | 240 | 16 | £877.38 | In Stock | |
| OSG-3333950 | 19.50 | 88 | 250 | 16 | £926.63 | In Stock | |
| OSG-3334000 | 20.00 | 88 | 250 | 20 | £926.63 | In Stock |
No products match your filters.
