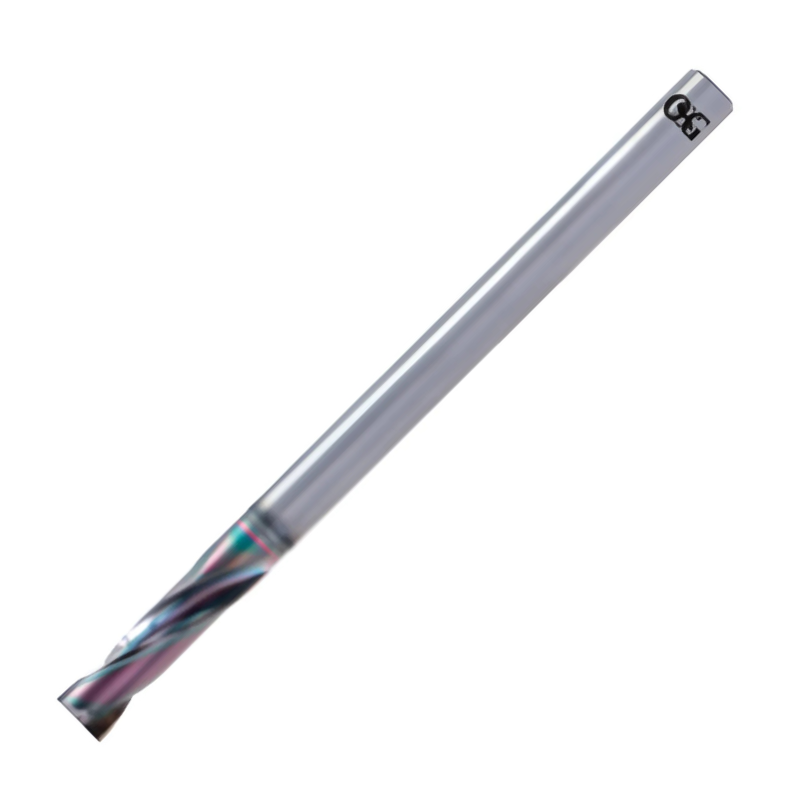

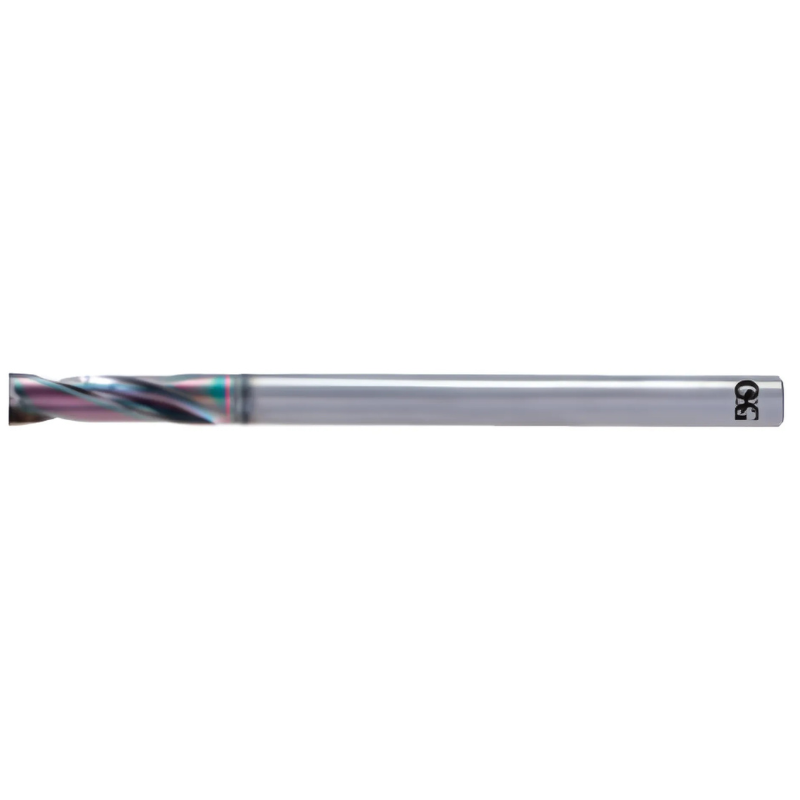

OSG Flat Bottom Carbide Drill - Solid 2xD Long Length - EGIAS Coated - 5.90mm

OSG Flat Bottom Carbide Drill - Solid 2xD Long Length - EGIAS Coated - 5.90mm

SKU:OSG-3332590
The OSG Flat Bottom Carbide Drill - Solid 2xD Long Length - EGIAS Coated is engineered for deep and precise flat-bottom hole drilling. Its extended 2xD reach ensures accurate, stable performance e... Read more ↓
Material Compatibility
P
M
K
N
H
Specification
Drill Diameter5.90
Flute Length27
Overall Length110
Shank Diameter6
£106.71
Prices shown ex. VAT
In Stock— only 1 left
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

The OSG Flat Bottom Carbide Drill - Solid 2xD Long Length - EGIAS Coated is engineered for deep and precise flat-bottom hole drilling. Its extended 2xD reach ensures accurate, stable performance even at greater depths.

  • Diameter: 5.90 mm
  • Length: Solid 2xD Long Length for deep-hole drilling
  • Material: Solid carbide construction for strength and rigidity
  • Coating: EGIAS coating for wear resistance and high-speed performance
  • Geometry: Flat-bottom design for precise flat-bottom holes
  • Applications: Suitable for steels, alloys, and hardened metals
  • Performance: Enhanced wear resistance and extended tool life
  • burr control: Designed to minimize burr formation at greater depths

Benefits: Achieve deep, precise flat-bottom holes with consistent diameters and clean finishes. The solid carbide core provides rigidity for stable drilling, while the EGIAS coating supports high-speed cutting and longer tool life. The 2xD reach enables deeper features in challenging materials like steels, alloys, and hardened metals, delivering reliable results with minimal burr and reduced tool changes in your workflow.

Drill Diameter 5.90
Flute Length 27
Overall Length 110
Shank Diameter 6

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: OSG Flat Bottom Carbide Drills - Solid 2xD Long Length - EGIAS Coated

View full collection →

You are viewing OSG-3332590. Click any other SKU to view its full details.

Product SKUDrill DiameterFlute LengthOverall LengthShank DiameterPriceStock Order
OSG-3332300 3.00151006£77.23 In Stock
OSG-3332310 3.10151006£82.45 In Stock
OSG-3332320 3.20151006£82.45 In Stock
OSG-3332330 3.30151006£82.45 In Stock
OSG-3332340 3.40161006£82.45 In Stock
OSG-3332350 3.50161006£82.45 In Stock
OSG-3332360 3.60161006£86.40 In Stock
OSG-3332370 3.70161006£86.40 In Stock
OSG-3332380 3.80191006£86.40 In Stock
OSG-3332390 3.90191006£86.40 In Stock
OSG-3332400 4.00191006£86.40 In Stock
OSG-3332410 4.10191006£89.49 In Stock
OSG-3332420 4.20211006£89.49 In Stock
OSG-3332430 4.30211006£89.49 In Stock
OSG-3332440 4.40211006£89.49 In Stock
OSG-3332450 4.50211006£89.49 In Stock
OSG-3332460 4.60211006£95.09 In Stock
OSG-3332470 4.70211006£95.09 In Stock
OSG-3332480 4.80241006£95.09 In Stock
OSG-3332490 4.90241006£95.09 In Stock
OSG-3332500 5.00241106£97.17 In Stock
OSG-3332510 5.10241106£102.16 In Stock
OSG-3332520 5.20241106£102.16 In Stock
OSG-3332530 5.30241106£102.16 In Stock
OSG-3332540 5.40271106£102.16 In Stock
OSG-3332550 5.50271106£102.16 In Stock
OSG-3332560 5.60271106£106.71 In Stock
OSG-3332570 5.70271106£106.71 In Stock
OSG-3332580 5.80271106£106.71 In Stock
OSG-3332590 Viewing5.90271106£106.71 In Stock
OSG-3332600 6.00271106£108.60 In Stock
OSG-3332650 6.50301206£110.33 In Stock
OSG-3332680 6.80301206£116.79 In Stock
OSG-3332690 6.90301206£116.79 In Stock
OSG-3332700 7.00301206£116.79 In Stock
OSG-3332740 7.40341306£127.63 In Stock
OSG-3332750 7.50341306£127.54 In Stock
OSG-3332780 7.80341306£133.21 In Stock
OSG-3332800 8.00341308£136.51 In Stock
OSG-3332850 8.50381408£144.15 In Stock
OSG-3332860 8.60381408£149.86 In Stock
OSG-3332880 8.80381408£149.86 In Stock
OSG-3332900 9.00381408£149.86 In Stock
OSG-3332920 9.20421508£160.69 In Stock
OSG-3332950 9.50421508£160.69 In Stock
OSG-3332980 9.80421508£168.38 In Stock
OSG-3333000 10.004215010£179.41 In Stock
OSG-3333030 10.304616010£185.97 In Stock
OSG-3333040 10.404616010£186.12 In Stock
OSG-3333050 10.504616010£185.97 In Stock
OSG-3333080 10.804616010£193.76 In Stock
OSG-3333100 11.004616010£193.76 In Stock
OSG-3333110 11.105017010£205.41 In Stock
OSG-3333150 11.505017010£205.41 In Stock
OSG-3333180 11.805017010£210.20 In Stock
OSG-3333200 12.005017012£228.93 In Stock
OSG-3333250 12.505618012£255.91 In Stock
OSG-3333300 13.005618012£266.37 In Stock
OSG-3333350 13.506019012£355.37 In Stock
OSG-3333400 14.006019012£357.62 In Stock
OSG-3333450 14.506420012£418.09 In Stock
OSG-3333500 15.006420012£418.09 In Stock
OSG-3333550 15.506821012£559.65 In Stock
OSG-3333600 16.006821016£559.65 In Stock
OSG-3333650 16.507422016£617.79 In Stock
OSG-3333700 17.007422016£617.79 In Stock
OSG-3333750 17.507823016£805.83 In Stock
OSG-3333800 18.007823016£845.28 In Stock
OSG-3333850 18.508424016£877.38 In Stock
OSG-3333900 19.008424016£877.38 In Stock
OSG-3333950 19.508825016£926.63 In Stock
OSG-3334000 20.008825020£926.63 In Stock
