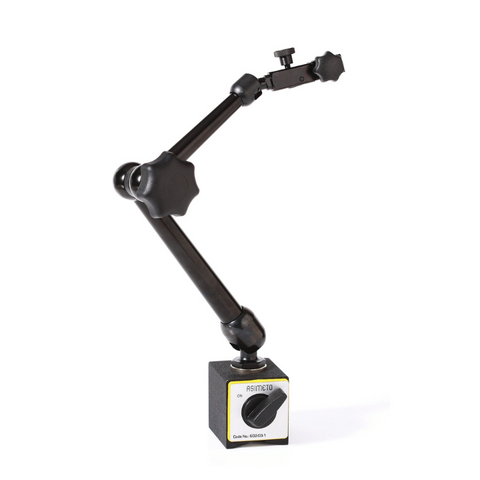

Asimeto Articulating Arm Magnetic Bases 602 Series - 60x50x55mm - 440mm Height
Learn more about Klarna
Description
The Asimeto 602 Series Articulating Arm with Magnetic Bases is a compact, versatile mounting solution for precision measurement tasks. Designed for machinists, inspectors, and technicians, it securely holds test indicators and dial gauges with quick, repeatable positioning.
- Base footprint: 60 x 50 x 55 mm base with a robust magnetic foundation for stable attachment to ferrous surfaces.
- Reach / height: 440 mm maximum height for flexible positioning over fixtures and tooling.
- Three articulating joints: Independent joints lock with a single-hand knob, enabling precise angular adjustments.
- On/off magnetic base: Rotatory knob toggles the magnetic hold on or off for fast attachment or removal.
- Indicator compatibility: Accepts test indicators with dovetail clamping mechanism for secure coupling.
- Dial gauge mounting options: Holds dial gauges via 3/8" or 8 mm stems or the lug backing plate for versatile mounting.
- Secure seating: Precision surfaces and bottom V groove clinch to ferrous workpieces or machine tables when the magnet is engaged.
This setup delivers repeatable, accurate measurements with minimal setup time. The one-hand lock enables rapid repositioning during inspection cycles, while the magnet-on state provides stable anchoring for delicate indicators without drift. The dovetail clamp compatibility and multiple gauge mounting options accommodate a wide range of tools, making it ideal for metrology tasks on machines, fixtures, or inspection benches. Whether you’re performing alignment checks, runout assessments, or routine gauging, this arm helps keep your reference plane true and your workflow efficient.
Part Numbers
- Protool Part Number
- 602-03-1
- Brand
- Asimeto
- Category
- Measuring Tool
