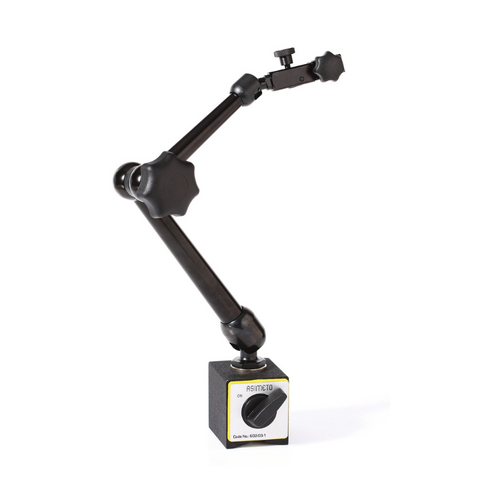

Asimeto Articulating Arm Magnetic Bases 602 Series - 117x50x55mm - 690mm Height

The Asimeto 602 Series Articulating Arm with Magnetic Base is a precise, hands-free positioning solution for machinists, metrology technicians, and inspection setups. Its robust design and versatile clamp options make it easy to position test indicators and dial gauges exactly where you need them.

• Three‑joint articulating arm: Flexible, multi‑axis positioning with a single‑hand lock for fast, stable adjustments.
• On/off magnetic base: Rotary control engages or disengages the magnet, enabling secure mounting to ferrous surfaces when on and quick repositioning when off.
• Indicator compatibility: Accepts test indicators with a dovetail clamping mechanism; dial gauges can be held by a 3/8" or 8 mm diameter stem or by the lug backing plate.
• Compact base with ample reach: Base footprint 117 × 50 × 55 mm with a height of 690 mm, giving you extended reach without crowding the work area.
• Secure execution surface: When the magnet is on, precision surfaces and the bottom V are firmly fastened to the ferrous workpiece or machine table for accurate measurements.
• Robust construction: Designed for repeated use in workshop environments, combining stability with smooth, precise movement.

This setup is ideal for serial inspection, setup work in milling or turning operations, and any task that requires repeatable, accurate indicator positioning. Use the magnetic base to quickly attach the arm to a steel table, align your indicator precisely, and lock the joints with one hand as you transfer to a different feature or part. Its dovetail compatibility and versatile mounting options reduce setup time and help maintain measurement consistency across sessions.
