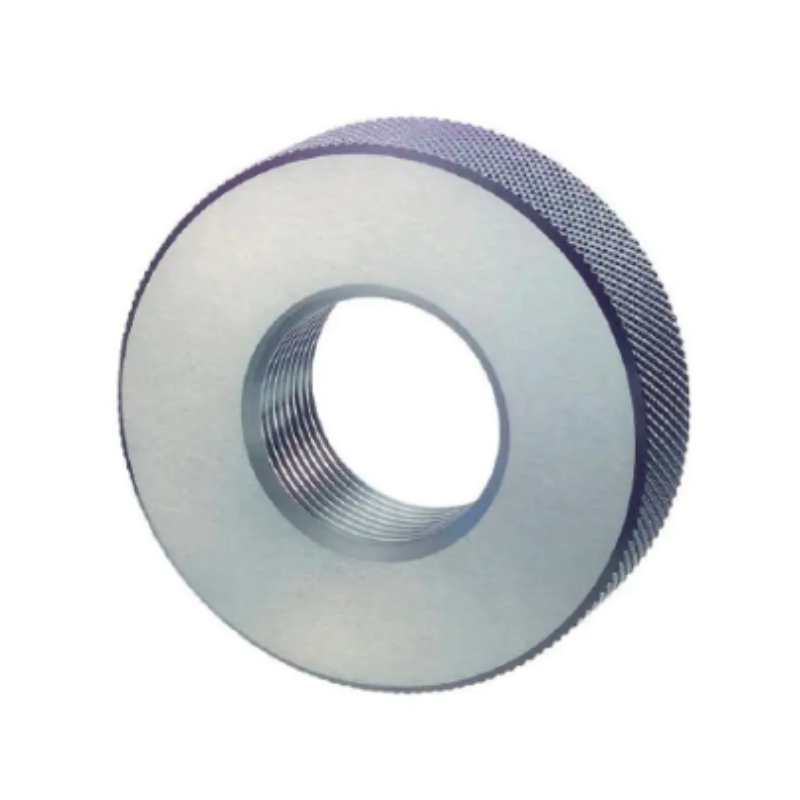

Asimeto Ring Thread Gauge (GO) - Metric - Right Hand - 6g - M5 x 0.8
| Thread Form | Metric |
| Size | M5 |
| Pitch | 0.8 |
| Gauge Type | Ring Gauge (GO) |
Learn more about Klarna
Compatible certification
The ones our customers buy most.
Description
The Asimeto Ring Thread Gauge (GO) is a precision metric GO gauge engineered for quality control and manufacturing teams that require fast, reliable verification of coarse metric threads. Calibrated for metric coarse 6g threads, it specifically checks M5 x 0.8 right-hand threads to ensure parts meet the upper size limit.
- Series: 683 Series GO gauge designed for metric coarse 6g threads.
- Thread Size: M5 x 0.8, right-hand threads to match common fasteners.
- GO Function: Checks the maximum material condition, verifying the part is within the upper size limit.
- Calibration: Precisely machined and calibrated to ensure readings reflect tolerance boundaries.
- Construction: Robust ring gauge design built for repeated use in QC, inspection, and manufacturing environments.
With the GO gauge, inspectors can quickly determine if a part exceeds the maximum material condition or remains within spec, reducing rework and scrap. Its precise calibration delivers consistent, repeatable results across batches, supporting tighter quality control and reliable assembly with M5 x 0.8 threads.
Part Numbers
- Protool Part Number
- 683-05-1
- Brand
- Asimeto
- Category
- Gauge
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Asimeto Ring Gauges - GO - Metric Coarse 6g - 683 Series
View full collection →You are viewing 683-05-1. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Price | Stock | Order |
|---|---|---|---|---|---|
| 683-02-1 | M2 | 0.4 | £46.58 | 4 weeks | |
| 683-02-6 | M2.5 | 0.45 | £47.75 | 4 weeks | |
| 683-03-1 | M3 | 0.5 | £42.26 | In Stock | |
| 683-03-6 | M3.5 | 0.6 | £47.75 | In Stock | |
| 683-04-1 | M4 | 0.7 | £42.26 | 4 weeks | |
| 683-05-1 Viewing | M5 | 0.8 | £42.26 | In Stock | |
| 683-06-1 | M6 | 1 | £42.26 | In Stock | |
| 683-08-1 | M8 | 1.25 | £45.00 | In Stock | |
| 683-09-1 | M9 | 1.25 | £51.26 | In Stock | |
| 683-10-1 | M10 | 1.5 | £46.17 | 4 weeks | |
| 683-12-1 | M12 | 1.75 | £46.17 | 4 weeks | |
| 683-14-1 | M14 | 2 | £60.66 | In Stock | |
| 683-16-1 | M16 | 2 | £54.77 | 4 weeks | |
| 683-18-1 | M18 | 2.5 | £71.24 | 4 weeks | |
| 683-20-1 | M20 | 2.5 | £64.17 | 4 weeks | |
| 683-22-1 | M22 | 2.5 | £67.68 | 4 weeks | |
| 683-24-1 | M24 | 3 | £80.60 | 4 weeks | |
| 683-27-1 | M27 | 3 | £80.60 | 4 weeks | |
| 683-30-1 | M30 | 3.5 | £98.60 | In Stock | |
| 683-33-1 | M33 | 3.5 | £100.17 | In Stock | |
| 683-36-1 | M36 | 4 | £114.66 | In Stock | |
| 683-39-1 | M39 | 4 | £114.66 | In Stock | |
| 683-42-1 | M42 | 4.5 | £163.17 | 4 weeks | |
| 683-45-1 | M45 | 4.5 | £163.17 | In Stock | |
| 683-48-1 | M48 | 5 | £184.32 | 4 weeks | |
| 683-52-1 | M52 | 5 | £181.17 | In Stock | |
| 683-56-1 | M56 | 5.5 | £241.43 | 4 weeks | |
| 683-60-1 | M60 | 5.5 | £239.49 | 4 weeks |
