Asimeto Ring Thread Gauge (GO) - Metric - Right Hand - 6g - M22 x 2.5
| Thread Form | Metric |
| Size | M22 |
| Pitch | 2.5 |
| Gauge Type | Ring Gauge (GO) |
| Thread Direction | Right Hand |
| Tolerance | 6g |
Learn more about Klarna

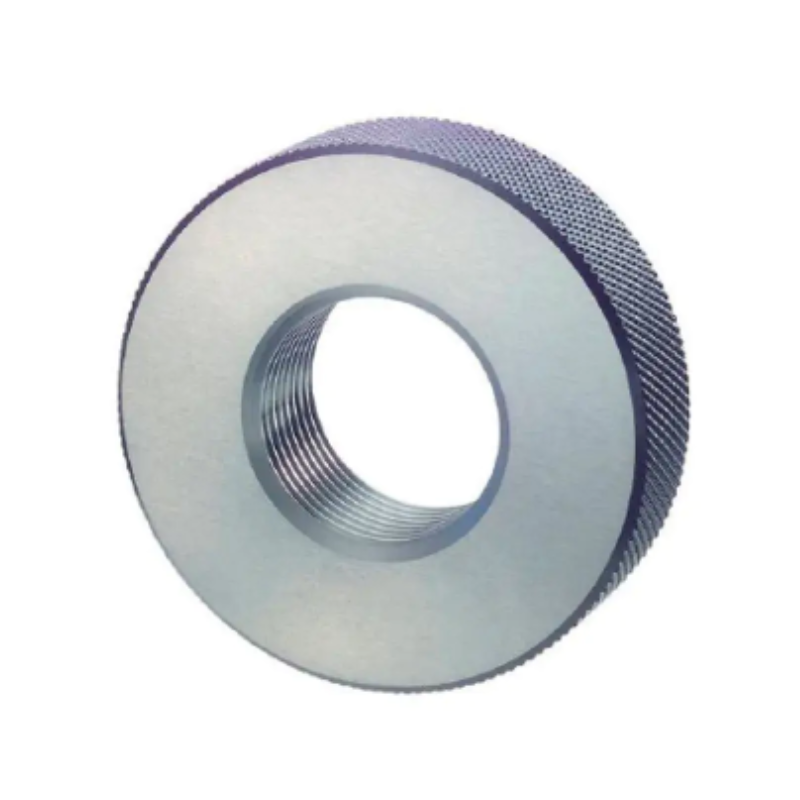

The Asimeto Ring Thread Gauge (GO) is a metric inspection tool crafted for precision in quality control and manufacturing. Designed for right-hand metric coarse 6g threads, it verifies that M22 x 2.5 fasteners stay within the upper size limit.
- Series: 683 Series, engineered for metric coarse 6g threads
- Thread specification: Right-hand external threads, M22 x 2.5
- Calibration: Precisely calibrated to ensure the thread is within tolerance
- GO gauge type: Checks the maximum material condition to confirm parts meet the upper limit
- Design detail: Knurled outer edge for secure handling during measurement
- Application: Ideal for quality control, inspection, and manufacturing environments requiring consistent, fast checks
This gauge enables quick, reliable go/no-go verification on threaded components, helping teams reduce rework and maintain consistent tolerances across production runs. Its alignment with metric coarse 6g standards makes it a focused tool for parts that demand tight control of the upper size limit, providing clear pass/fail results to support traceable QA processes.
| Thread Form | Metric |
| Size | M22 |
| Pitch | 2.5 |
| Gauge Type | Ring Gauge (GO) |
| Thread Direction | Right Hand |
| Tolerance | 6g |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Asimeto Ring Gauges - GO - Metric Coarse 6g - 683 Series
View full collection →You are viewing 683-22-1. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Price | Stock | Order |
|---|---|---|---|---|---|
| 683-02-1 | M2 | 0.4 | £43.87 | 4 weeks | |
| 683-02-6 | M2.5 | 0.45 | £44.98 | 4 weeks | |
| 683-03-1 | M3 | 0.5 | £43.87 | In Stock | |
| 683-03-6 | M3.5 | 0.6 | £44.98 | In Stock | |
| 683-04-1 | M4 | 0.7 | £43.87 | 4 weeks | |
| 683-05-1 | M5 | 0.8 | £43.87 | 4 weeks | |
| 683-06-1 | M6 | 1 | £43.87 | 4 weeks | |
| 683-08-1 | M8 | 1.25 | £46.82 | In Stock | |
| 683-09-1 | M9 | 1.25 | £48.30 | In Stock | |
| 683-10-1 | M10 | 1.5 | £48.30 | 4 weeks | |
| 683-12-1 | M12 | 1.75 | £48.30 | 4 weeks | |
| 683-14-1 | M14 | 2 | £57.14 | In Stock | |
| 683-16-1 | M16 | 2 | £57.14 | 4 weeks | |
| 683-18-1 | M18 | 2.5 | £67.10 | 4 weeks | |
| 683-20-1 | M20 | 2.5 | £67.10 | 4 weeks | |
| 683-22-1 Viewing | M22 | 2.5 | £70.79 | 4 weeks | |
| 683-24-1 | M24 | 3 | £84.06 | 4 weeks | |
| 683-27-1 | M27 | 3 | £84.06 | 4 weeks | |
| 683-30-1 | M30 | 3.5 | £102.86 | In Stock | |
| 683-33-1 | M33 | 3.5 | £104.71 | In Stock | |
| 683-36-1 | M36 | 4 | £119.82 | In Stock | |
| 683-39-1 | M39 | 4 | £119.82 | In Stock | |
| 683-42-1 | M42 | 4.5 | £153.74 | 4 weeks | |
| 683-45-1 | M45 | 4.5 | £153.74 | In Stock | |
| 683-48-1 | M48 | 5 | £173.66 | 4 weeks | |
| 683-52-1 | M52 | 5 | £170.70 | In Stock | |
| 683-56-1 | M56 | 5.5 | £227.49 | 4 weeks | |
| 683-60-1 | M60 | 5.5 | £225.64 | 4 weeks |
