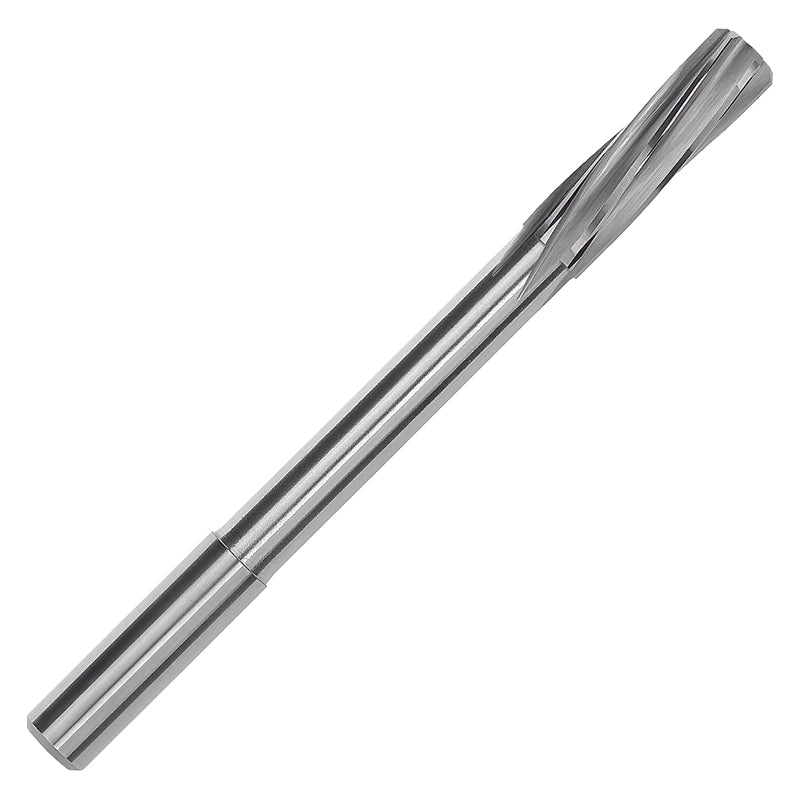

Toolex Reamer - Straight Shank - Spiral Flute - Carbide - H5 - 8.14mm

The Toolex Reamer - Straight Shank - Spiral Flute - Carbide - H5 - 8.14mm is a precision straight-shank reamer designed to finish holes to tight tolerances with carbide durability. It’s ideal for engineers, machinists, and workshop users who need reliable bore sizing across steel, stainless steel, cast iron, and non-ferrous materials. The 8.14mm nominal diameter is paired with H5 tolerance to deliver consistent results in demanding setups.

Manufactured to order, please allow 24–48 hours for despatch. This reamer features a left-hand spiral flute and right-hand cutting, with a 10° helix angle to promote efficient chip flow and smooth cutting. Supplied by Magafor, it’s built to perform in busy shops and production environments.

• Carbide grade K10 with straight shank: Intermediate precision carbide provides rigidity and wear resistance to help maintain precise hole size over multiple uses.
• Left-hand spiral flute with right-hand cutting and 10° helix angle: Improves chip evacuation and delivers a smoother cut across steel, stainless steel, cast iron, and non-ferrous materials.

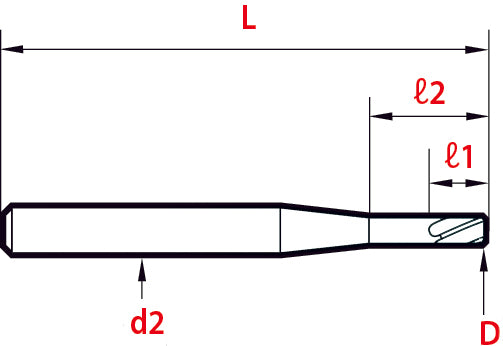

• DIN 212-B style geometry, H5 tolerance, 8.14 mm diameter: Delivers tight tolerances and compatibility with standard tooling for reliable, repeatable bore finishing.

This reamer helps you achieve consistent bore finishes with minimal rework, improving throughput and overall machining reliability. Its carbide construction and DIN 212-B geometry are purpose-built for demanding applications, making it a dependable choice for professional shops and serious hobbyists alike.
