Baer Heli Coil Tap - Wire Thread Insert - Bottoming Tap (STI) - Metric - M10 x 1
| Thread Form | Metric |
| Size | M10 |
| Pitch | 1 |
| Lead | Bottoming Tap (STI) |
Learn more about Klarna
Description
The Baer Heli Coil Tap is the precision tool you need for impeccable thread repairs and reinforcements using wire thread inserts. Designed for metric applications, this Bottoming Tap (STI) in M10 x 1 delivers clean, true-threaded holes that accept HeliCoil inserts with unwavering reliability. Built to endure daily workshop use, it’s the workhorse tap you reach for when every bolt must seat squarely and stay secure.
Why this bottoming tap stands out
- Dedicated bottoming profile taps to full thread depth, ensuring inserts seat perfectly and bolts engage with maximum thread engagement.
- Metric precision for M10 x 1 holes, a common standard in automotive, machinery, and manufacturing assemblies.
- Rugged construction crafted from durable tool steel with careful grinding to resist wear and maintain accuracy over countless taps.
- Compatibility with wire thread inserts—optimized to pair with HeliCoil and similar inserts for reinforced, vibration-resistant threads.
- User-friendly geometry with efficient chip evacuation and a secure drive end for steady torque transfer in handheld or machine-driven setups.
Ideal use cases
- Repair stripped or damaged internal threads in aluminum blocks, castings, engine housings, and other soft metals where raised torque demands cannot be met by original threads.
- Reinforce mounting holes that experience repeated bolt cycles, reducing the need for expensive repairs or material replacement.
- Restore critical threads in vintage or worn equipment where standard taps fall short of depth or alignment requirements.
Practical tips for best results
- Pair this bottoming tap with a compatible HeliCoil installation kit and the correct drill size for accurate hole formation.
- Apply light cutting oil or a proper tapping lubricant to reduce friction, heat, and wear during tapping.
- Keep the workpiece square and apply a steady, straight feed to prevent cross‑threading and ensure flush seating of the coil insert.
- Clean the hole thoroughly after tapping to remove metal chips before installing the wire thread insert.
Why technicians choose Baer
- Trusted performance for consistent results across a range of metals and applications.
- Designed to work in tandem with Baer’s (and similar) wire thread inserts to deliver durable, repair‑ready threads that behave like original hardware under load.
Product at a glance
- Type: Bottoming tap (STI) for wire thread inserts
- Thread: Metric M10 x 1
- Application: Internal thread repair and reinforcement with HeliCoil inserts
- Material: High‑quality tool steel, precision ground
Part Numbers
- Protool Part Number
- BAER-B3017-1
- Brand
- BAER
- Category
- Heli Coil Tap
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Baer Heli Coil Taps - Wire Thread Insert - Bottoming Tap (STI) - Metric
View full collection →You are viewing BAER-B3017-1. Click any other SKU to view its full details.

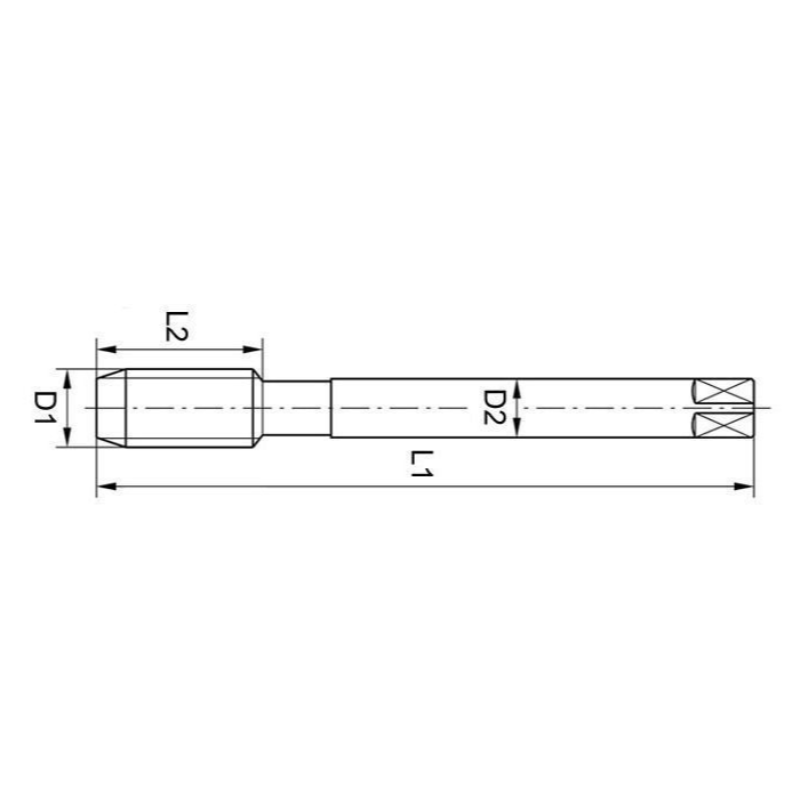

| Product SKU | Size | Pitch | Tap Diameter (D1) | Flute Length (L2) | Overall Length (L1) | Shank Diameter (D2) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| BAER-B3001-1 | M2 | 0.4 | 2.5 | 9.5 | 44.5 | 2.8 | £11.28 | 5 days | |
| BAER-B3003-1 | M2.5 | 0.45 | 3.1 | 11 | 48 | 3.15 | £11.28 | 5 days | |
| BAER-B3005-1 | M3 | 0.5 | 3.6 | 13 | 53 | 4 | £9.92 | 5 days | |
| BAER-B3006-1 | M3.5 | 0.6 | 4.3 | 13 | 53 | 4.5 | £10.84 | 5 days | |
| BAER-B3007-1 | M4 | 0.7 | 4.9 | 16 | 58 | 5 | £9.92 | 5 days | |
| BAER-B3008-1 | M5 | 0.8 | 6 | 19 | 66 | 6.3 | £9.92 | 5 days | |
| BAER-B3009-1 | M6 | 1 | 7.3 | 22 | 72 | 8 | £9.92 | 5 days | |
| BAER-B3010-1 | M7 | 1 | 8.3 | 22 | 72 | 9 | £12.27 | In Stock | |
| BAER-B3011-1 | M8 | 1.25 | 9.6 | 24 | 80 | 10 | £12.27 | 5 days | |
| BAER-B3012-1 | M8 | 1 | 9.3 | 24 | 80 | 10 | £12.27 | 5 days | |
| BAER-B3013-1 | M9 | 1.25 | 10.6 | 25 | 85 | 8 | £15.19 | 5 days | |
| BAER-B3015-1 | M10 | 1.5 | 11.9 | 29 | 89 | 9 | £15.19 | 5 days | |
| BAER-B3016-1 | M10 | 1.25 | 11.6 | 25 | 85 | 8 | £15.19 | 5 days | |
| BAER-B3017-1 Viewing | M10 | 1 | 11.3 | 25 | 85 | 8 | £15.19 | 5 days | |
| BAER-B3018-1 | M11 | 1.5 | 12.9 | 29 | 89 | 9 | £17.07 | 5 days | |
| BAER-B3020-1 | M12 | 1.75 | 14.3 | 30 | 95 | 11.2 | £17.07 | 5 days | |
| BAER-B3021-1 | M12 | 1.5 | 14 | 30 | 95 | 11.2 | £20.83 | 5 days | |
| BAER-B3022-1 | M12 | 1.25 | 13.6 | 30 | 95 | 11.2 | £20.83 | 5 days | |
| BAER-B3023-1 | M12 | 1 | 13.3 | 30 | 95 | 11.2 | £21.97 | 5 days | |
| BAER-B3027-1 | M14 | 2 | 16.6 | 32 | 102 | 12.5 | £23.74 | 5 days | |
| BAER-B3028-1 | M14 | 1.5 | 16 | 32 | 102 | 12.5 | £23.74 | 5 days | |
| BAER-B3029-1 | M14 | 1.25 | 15.6 | 32 | 102 | 12.5 | £23.74 | 5 days | |
| BAER-B3030-1 | M14 | 1 | 15.3 | 32 | 102 | 12.5 | £23.74 | 5 days | |
| BAER-B3033-1 | M16 | 2 | 18.6 | 37 | 112 | 14 | £29.01 | 5 days | |
| BAER-B3034-1 | M16 | 1.5 | 18 | 29 | 104 | 14 | £29.01 | 5 days | |
| BAER-B3035-1 | M18 | 2.5 | 21.3 | 38 | 118 | 16 | £41.30 | 5 days | |
| BAER-B3036-1 | M18 | 2 | 20.6 | 29 | 104 | 14 | £41.30 | 5 days | |
| BAER-B3037-1 | M18 | 1.5 | 20 | 29 | 104 | 14 | £41.30 | 5 days | |
| BAER-B3038-1 | M20 | 2.5 | 23.3 | 38 | 118 | 16 | £45.87 | 5 days | |
| BAER-B3039-1 | M20 | 2 | 22.6 | 33 | 113 | 16 | £45.87 | 5 days | |
| BAER-B3040-1 | M20 | 1.5 | 22 | 33 | 113 | 16 | £45.87 | 5 days | |
| BAER-B3041-1 | M22 | 2.5 | 25.3 | 45 | 130 | 18 | £52.83 | 5 days | |
| BAER-B3042-1 | M22 | 2 | 24.6 | 35 | 120 | 18 | £52.83 | 5 days | |
| BAER-B3043-1 | M22 | 1.5 | 24 | 35 | 120 | 18 | £52.83 | 5 days | |
| BAER-B3044-1 | M24 | 3 | 27.9 | 48 | 138 | 20 | £62.57 | 5 days | |
| BAER-B3045-1 | M24 | 2 | 26.6 | 37 | 127 | 20 | £62.57 | 5 days | |
| BAER-B3046-1 | M24 | 1.5 | 26 | 35 | 120 | 18 | £62.57 | 5 days | |
| BAER-B3049 | M26 | 1.5 | 28 | 37 | 127 | 20 | £115.83 | 5 days | |
| BAER-B3050 | M27 | 3 | 30.9 | 51 | 151 | 22.4 | £115.83 | 5 days | |
| BAER-B3051 | M27 | 2 | 29.6 | 37 | 127 | 20 | £115.83 | 5 days | |
| BAER-B3052 | M27 | 1.5 | 29 | 37 | 127 | 20 | £115.83 | 5 days | |
| BAER-B3053 | M28 | 1.5 | 30 | 37 | 127 | 20 | £115.83 | 5 days | |
| BAER-B3054-1 | M30 | 3.5 | 34.6 | 57 | 162 | 25 | £151.96 | 5 days | |
| BAER-B3055 | M30 | 2 | 32.6 | 37 | 137 | 22.4 | £151.96 | 5 days | |
| BAER-B3056 | M30 | 1.5 | 32 | 37 | 137 | 22.4 | £151.96 | 5 days | |
| BAER-B3057 | M33 | 3.5 | 37.6 | 57 | 162 | 25 | £157.63 | 5 days | |
| BAER-B3058 | M33 | 2 | 35.6 | 37 | 144 | 25 | £157.63 | 5 days | |
| BAER-B3060 | M36 | 4 | 41.2 | 60 | 170 | 28 | £175.72 | 5 days | |
| BAER-B3061 | M36 | 3 | 39.9 | 60 | 170 | 28 | £175.72 | 5 days | |
| BAER-B3062 | M36 | 2 | 38.6 | 39 | 150 | 28 | £175.72 | 5 days | |
| BAER-B3063 | M36 | 1.5 | 38 | 39 | 150 | 28 | £175.72 | 5 days | |
| BAER-B3064-1 | M39 | 4 | 44.2 | 67 | 187 | 31.5 | £269.70 | 5 days | |
| BAER-B3065-1 | M39 | 3 | 42.9 | 39 | 149 | 28 | £229.77 | 5 days |
