Baer Heli Coil Tap - Wire Thread Insert - Bottoming Tap (STI) - Metric - M20 x 1.5
| Thread Form | Metric |
| Size | M20 |
| Pitch | 1.5 |
| Lead | Bottoming Tap (STI) |
| Thread Direction | Right Hand |
| Tolerance | 4H |
Learn more about Klarna
Baer Heli Coil Tap is the precision tool you need for impeccable thread repairs and reinforcements with wire thread inserts. Designed for metric M20 x 1.5 applications, this bottoming tap (STI) delivers true, full-depth threads that helicoil inserts can bite into with confidence, even in challenging materials and hard-to-reach blind holes.
Why this bottoming tap matters
The bottoming geometry reaches the entire thread length, ensuring clean, square threads from top to bottom. This creates a reliable seat for helicoil inserts, reducing the chances of partial engagement and improving the insert’s pull-out resistance under load. Crafted for durability and consistency, it’s the tool shop owners, machinists, and automotive technicians reach for when reliability isn’t optional.
Key benefits
- Deep, full-depth threads for maximum insert engagement and lasting performance.
- Metric M20 x 1.5 compatibility aligns with common helicoil insert standards for larger, fine-pitched repairs.
- Precise, burr-free thread formation helps inserts seat smoothly and stay secured over time.
- Durable, professional-grade construction built to withstand repeated use in demanding environments.
Ideal use cases
Perfect for repairing damaged or stripped threads in metal housings, engine components, and various machinery where a helicoil insert is the chosen solution for restoring strength and service life. Use this tap to create the ideal foundation for a durable insert, delivering reliable engagement and long-term torque resistance.
Practical guidance
- Prepare the hole to the correct pilot size for M20 x 1.5 helicoil inserts.
- Apply appropriate cutting lubricant and maintain steady, even pressure to achieve clean threads.
- Clean chips regularly to prevent binding and ensure a smooth tapping action.
- Install the helicoil insert per manufacturer instructions to maximize performance.
Choose the Baer Heli Coil Tap for precise, repeatable thread repairs that restore strength and extend the life of your assemblies.
| Thread Form | Metric |
| Size | M20 |
| Pitch | 1.5 |
| Lead | Bottoming Tap (STI) |
| Thread Direction | Right Hand |
| Tolerance | 4H |

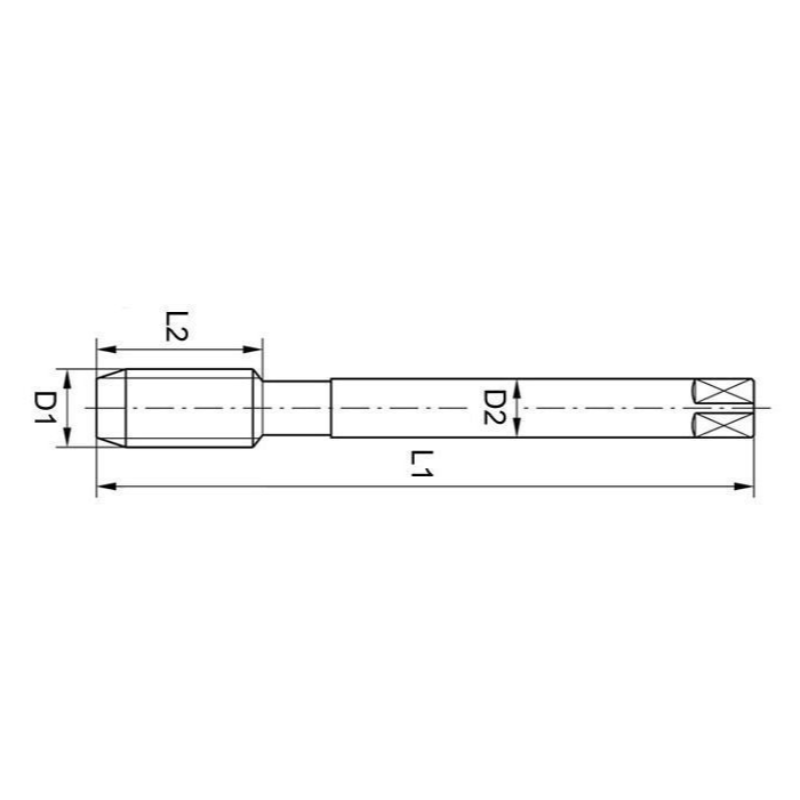

| Tap Diameter (D1) | 22 |
| Flute Length (L2) | 33 |
| Overall Length (L1) | 113 |
| Shank Diameter (D2) | 16 |
| Square Drive | 12.5 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Baer Heli Coil Taps - Wire Thread Insert - Bottoming Tap (STI) - Metric
View full collection →You are viewing BAER-B3040-1. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Tap Diameter (D1) | Flute Length (L2) | Overall Length (L1) | Shank Diameter (D2) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| BAER-B3001-1 | M2 | 0.4 | 2.5 | 9.5 | 44.5 | 2.8 | £11.28 | 5 days | |
| BAER-B3003-1 | M2.5 | 0.45 | 3.1 | 11 | 48 | 3.15 | £11.28 | 5 days | |
| BAER-B3005-1 | M3 | 0.5 | 3.6 | 13 | 53 | 4 | £9.92 | 5 days | |
| BAER-B3006-1 | M3.5 | 0.6 | 4.3 | 13 | 53 | 4.5 | £10.84 | 5 days | |
| BAER-B3007-1 | M4 | 0.7 | 4.9 | 16 | 58 | 5 | £9.92 | 5 days | |
| BAER-B3008-1 | M5 | 0.8 | 6 | 19 | 66 | 6.3 | £9.92 | 5 days | |
| BAER-B3009-1 | M6 | 1 | 7.3 | 22 | 72 | 8 | £9.92 | 5 days | |
| BAER-B3010-1 | M7 | 1 | 8.3 | 22 | 72 | 9 | £12.27 | In Stock | |
| BAER-B3011-1 | M8 | 1.25 | 9.6 | 24 | 80 | 10 | £12.27 | 5 days | |
| BAER-B3012-1 | M8 | 1 | 9.3 | 24 | 80 | 10 | £12.27 | 5 days | |
| BAER-B3013-1 | M9 | 1.25 | 10.6 | 25 | 85 | 8 | £15.19 | 5 days | |
| BAER-B3015-1 | M10 | 1.5 | 11.9 | 29 | 89 | 9 | £15.19 | 5 days | |
| BAER-B3016-1 | M10 | 1.25 | 11.6 | 25 | 85 | 8 | £15.19 | 5 days | |
| BAER-B3017-1 | M10 | 1 | 11.3 | 25 | 85 | 8 | £15.19 | 5 days | |
| BAER-B3018-1 | M11 | 1.5 | 12.9 | 29 | 89 | 9 | £17.07 | 5 days | |
| BAER-B3020-1 | M12 | 1.75 | 14.3 | 30 | 95 | 11.2 | £17.07 | 5 days | |
| BAER-B3021-1 | M12 | 1.5 | 14 | 30 | 95 | 11.2 | £20.83 | 5 days | |
| BAER-B3022-1 | M12 | 1.25 | 13.6 | 30 | 95 | 11.2 | £20.83 | 5 days | |
| BAER-B3023-1 | M12 | 1 | 13.3 | 30 | 95 | 11.2 | £21.97 | 5 days | |
| BAER-B3027-1 | M14 | 2 | 16.6 | 32 | 102 | 12.5 | £23.74 | 5 days | |
| BAER-B3028-1 | M14 | 1.5 | 16 | 32 | 102 | 12.5 | £23.74 | 5 days | |
| BAER-B3029-1 | M14 | 1.25 | 15.6 | 32 | 102 | 12.5 | £23.74 | 5 days | |
| BAER-B3030-1 | M14 | 1 | 15.3 | 32 | 102 | 12.5 | £23.74 | 5 days | |
| BAER-B3033-1 | M16 | 2 | 18.6 | 37 | 112 | 14 | £29.01 | 5 days | |
| BAER-B3034-1 | M16 | 1.5 | 18 | 29 | 104 | 14 | £29.01 | 5 days | |
| BAER-B3035-1 | M18 | 2.5 | 21.3 | 38 | 118 | 16 | £41.30 | 5 days | |
| BAER-B3036-1 | M18 | 2 | 20.6 | 29 | 104 | 14 | £41.30 | 5 days | |
| BAER-B3037-1 | M18 | 1.5 | 20 | 29 | 104 | 14 | £41.30 | 5 days | |
| BAER-B3038-1 | M20 | 2.5 | 23.3 | 38 | 118 | 16 | £45.87 | 5 days | |
| BAER-B3039-1 | M20 | 2 | 22.6 | 33 | 113 | 16 | £45.87 | 5 days | |
| BAER-B3040-1 Viewing | M20 | 1.5 | 22 | 33 | 113 | 16 | £45.87 | 5 days | |
| BAER-B3041-1 | M22 | 2.5 | 25.3 | 45 | 130 | 18 | £52.83 | 5 days | |
| BAER-B3042-1 | M22 | 2 | 24.6 | 35 | 120 | 18 | £52.83 | 5 days | |
| BAER-B3043-1 | M22 | 1.5 | 24 | 35 | 120 | 18 | £52.83 | 5 days | |
| BAER-B3044-1 | M24 | 3 | 27.9 | 48 | 138 | 20 | £62.57 | 5 days | |
| BAER-B3045-1 | M24 | 2 | 26.6 | 37 | 127 | 20 | £62.57 | 5 days | |
| BAER-B3046-1 | M24 | 1.5 | 26 | 35 | 120 | 18 | £62.57 | 5 days | |
| BAER-B3049 | M26 | 1.5 | 28 | 37 | 127 | 20 | £113.67 | 5 days | |
| BAER-B3050 | M27 | 3 | 30.9 | 51 | 151 | 22.4 | £113.67 | 5 days | |
| BAER-B3051 | M27 | 2 | 29.6 | 37 | 127 | 20 | £113.67 | 5 days | |
| BAER-B3052 | M27 | 1.5 | 29 | 37 | 127 | 20 | £113.67 | 5 days | |
| BAER-B3053 | M28 | 1.5 | 30 | 37 | 127 | 20 | £113.67 | 5 days | |
| BAER-B3054-1 | M30 | 3.5 | 34.6 | 57 | 162 | 25 | £149.14 | 5 days | |
| BAER-B3055 | M30 | 2 | 32.6 | 37 | 137 | 22.4 | £149.14 | 5 days | |
| BAER-B3056 | M30 | 1.5 | 32 | 37 | 137 | 22.4 | £149.14 | 5 days | |
| BAER-B3057 | M33 | 3.5 | 37.6 | 57 | 162 | 25 | £154.72 | 5 days | |
| BAER-B3058 | M33 | 2 | 35.6 | 37 | 144 | 25 | £154.72 | 5 days | |
| BAER-B3060 | M36 | 4 | 41.2 | 60 | 170 | 28 | £172.46 | 5 days | |
| BAER-B3061 | M36 | 3 | 39.9 | 60 | 170 | 28 | £172.46 | 5 days | |
| BAER-B3062 | M36 | 2 | 38.6 | 39 | 150 | 28 | £172.46 | 5 days | |
| BAER-B3063 | M36 | 1.5 | 38 | 39 | 150 | 28 | £172.46 | 5 days | |
| BAER-B3064-1 | M39 | 4 | 44.2 | 67 | 187 | 31.5 | £264.70 | 5 days | |
| BAER-B3065-1 | M39 | 3 | 42.9 | 39 | 149 | 28 | £225.50 | 5 days |
