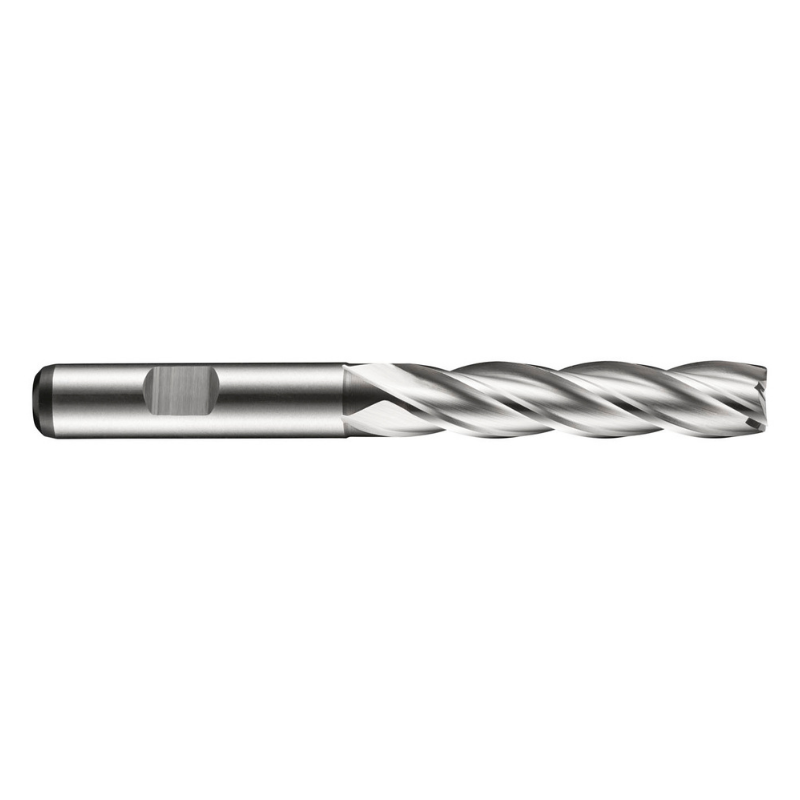

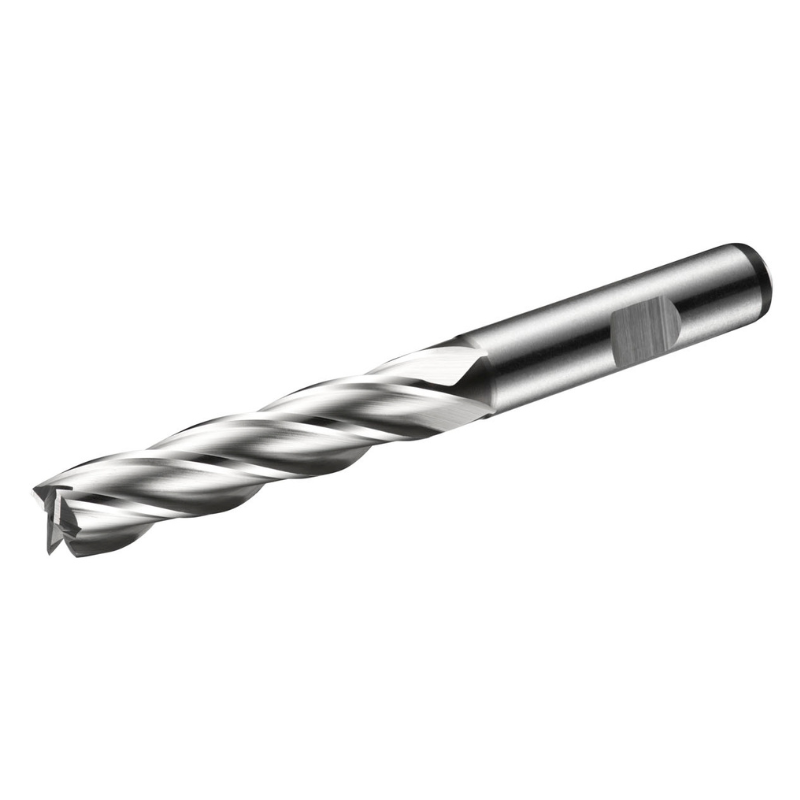

Dormer Pramet C273 16.0mm HSS-E-Powder Metal Flatted Shank Multi-Flute Long Series End Mill DIN 844 L

The Dormer Pramet C273 16.0mm HSS-E-Powder End Mill is a long-series milling tool engineered for shoulder and slot milling in steel and copper alloys. Crafted with powder-metallurgical HSS-E and a bright finish, it delivers consistent performance across deep pockets and demanding milling tasks.

• Diameter: 16 mm
• Length of Cut: 63 mm
• Overall Length: 123 mm
• Reach: 74.5 mm with neck relief, enabling deeper pocket work
• Shank: Weldon style, 16 mm
• Material: Powder-metallurgical HSS-E with bright finish for toughness and wear resistance
• Flutes: 4-flute design for efficient chip evacuation and smooth finishes
• Helix: 30° helix to balance cutting action and surface quality
• Rake Angle: 12° for effective shoulder milling and slotting
• DIN Standard: DIN 844 L compatibility for reliable seating in holders
• Applications: Shoulder milling and slot milling in free-machining and plain carbon steel and copper or copper alloys

With its generous reach and neck relief, this end mill maintains rigidity while accessing deep features, helping you achieve accurate shoulders and clean slots without frequent tool changes. The 4-flute configuration optimizes chip control and surface finish, particularly on tougher materials, while the HSS-E powder metallurgy core provides a balance of hardness, toughness, and wear resistance for longer tool life in industrial milling environments. The bright finish aids in chip flow and reduces built-up edge, contributing to steadier cuts and consistent results across multiple passes.
