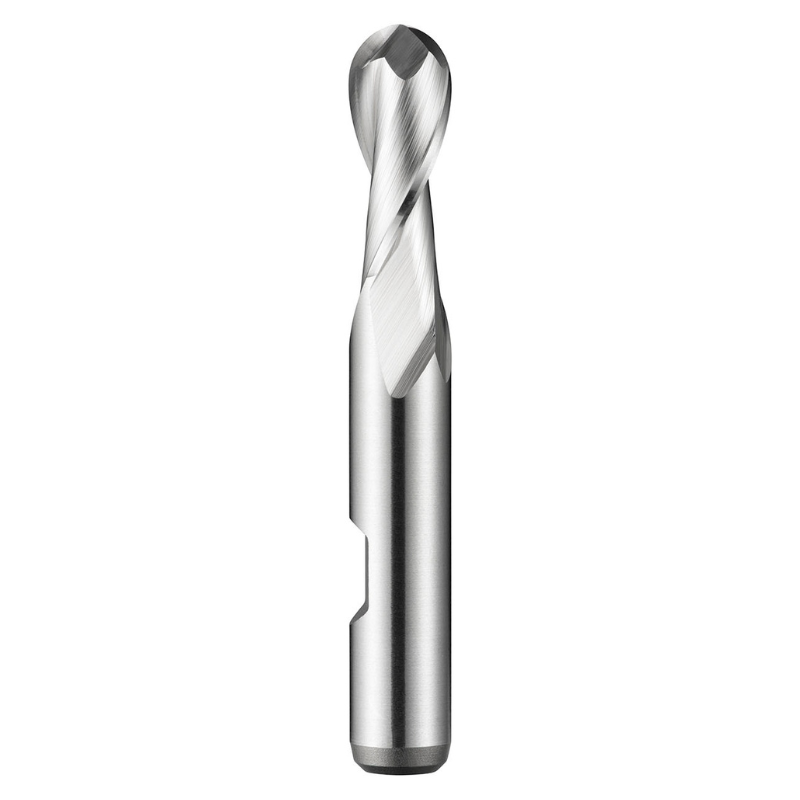

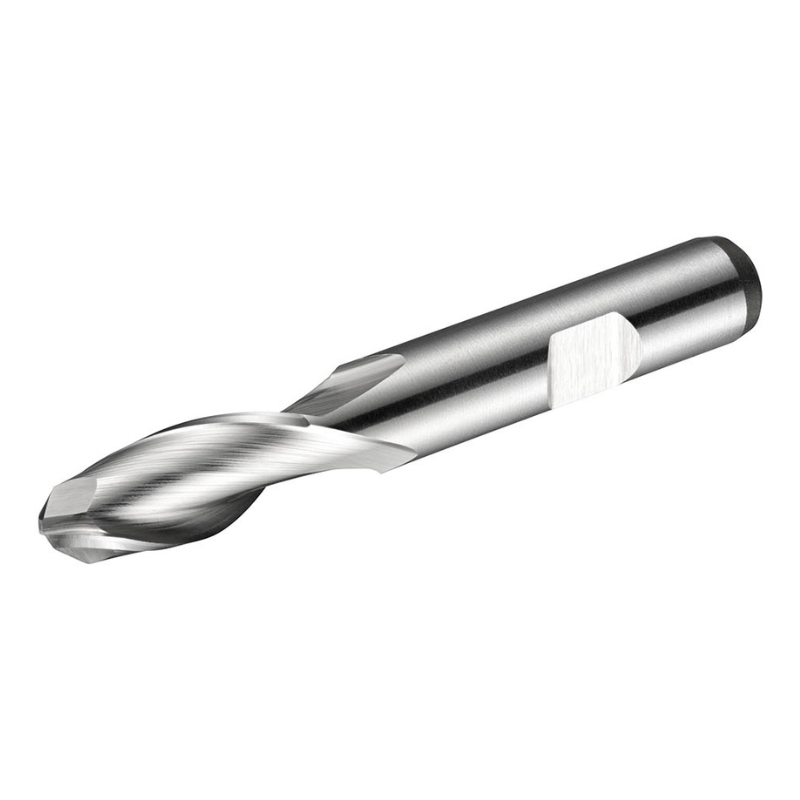

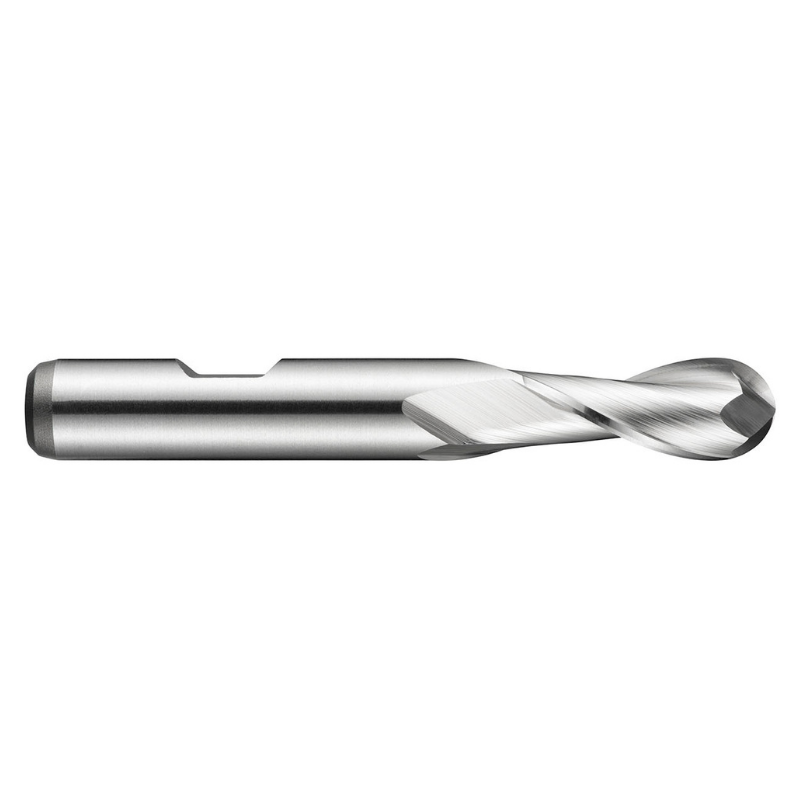

Dormer Pramet C505 14.0mm HSS-E Flatted Shank 2 Flute Ball Nosed Standard Length Slot Drill DIN 844 K

The Dormer Pramet C505 14.0mm HSS-E Flatted Shank 2 Flute Ball Nosed Standard Length Slot Drill (DIN 844 K) is a precision copy-milling end mill designed for deep, accurate contouring in free‑machining steel and copper alloys. With a 14 mm diameter and a robust HSS‑E cobalt composition, it delivers reliable performance in CNC slots and complex profiles.

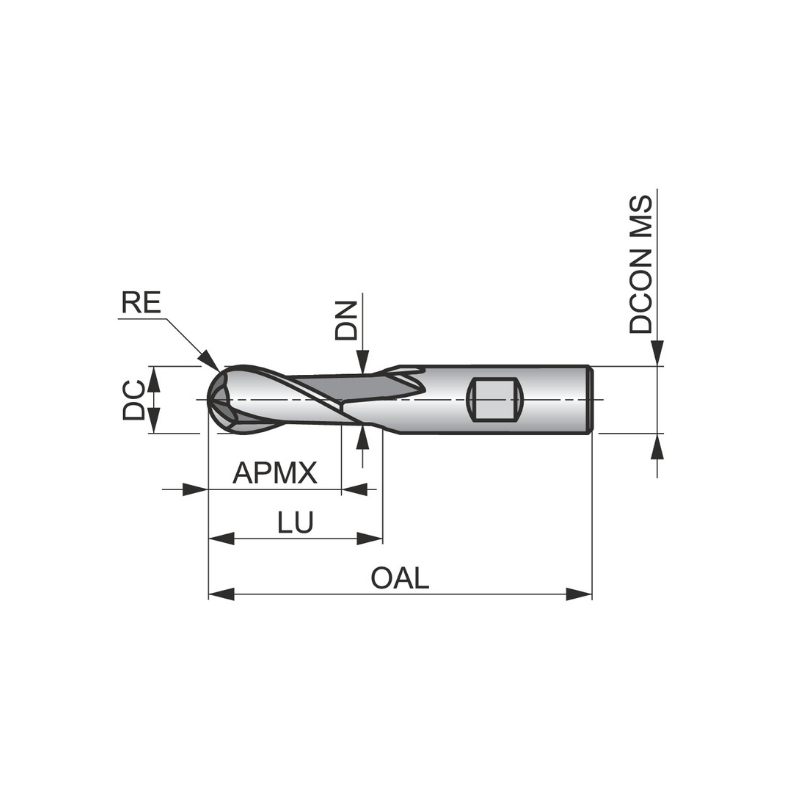

• Diameter: 14.0 mm
• Flutes: 2-flute ball-nose design for smooth curvature and efficient material removal
• Ball nose radius: 7.0 mm full profile radius for accurate curved paths
• Length of cut: 26 mm
• Overall length: 83 mm
• Reach with neck relief: 37.5 mm
• Shank: Weldon shank, 12 mm, with a flatted section for secure clamping
• Material and finish: HSS-E cobalt-based tool steel with bright finish
• Helix and rake: 30° helix; 12° rake angle optimized for copy milling
• Standard: DIN 844 K
• Applications: Copy milling in free-machining steel and copper or copper alloys

This tool excels in copy milling and finishing complex contours, delivering consistent wall geometry and smooth surface finishes in pockets and slots. The 7 mm radius supports gentle entry into curved paths, reducing chatter and improving dimensional accuracy. The cobalt-based HSS-E construction provides enhanced wear resistance and durability for longer tool life in challenging materials. The flatted Weldon shank and solid overall geometry promote reliable grip and rigidity, helping you maintain precision across deeper cavities and extended reach.
