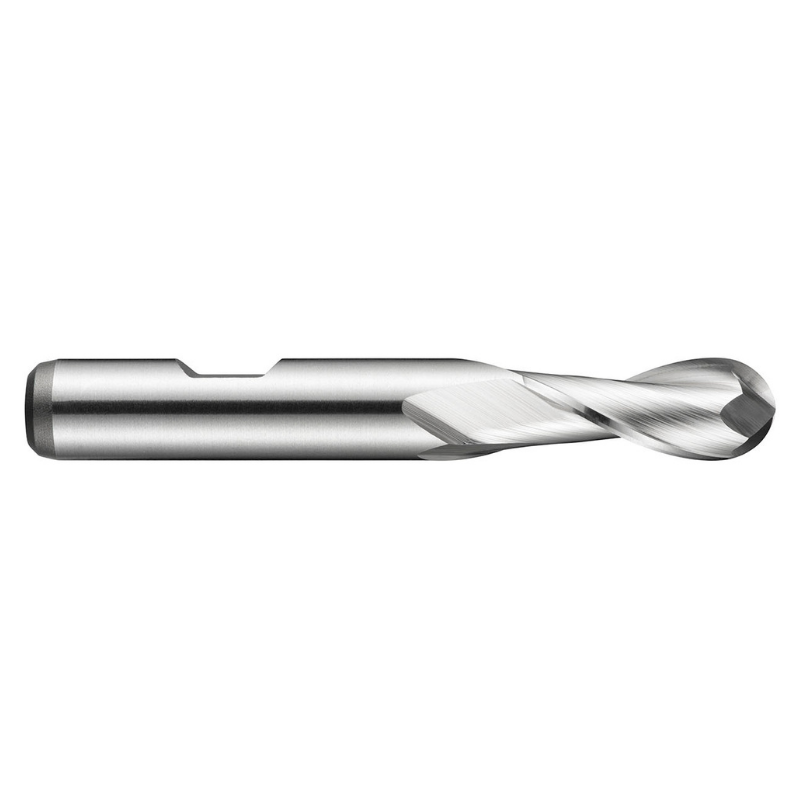

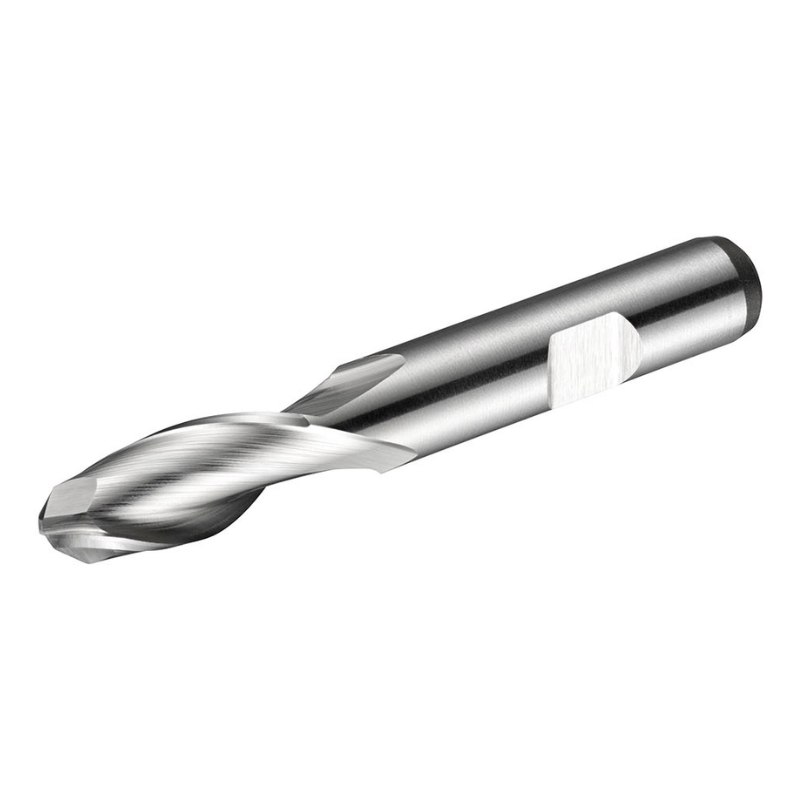

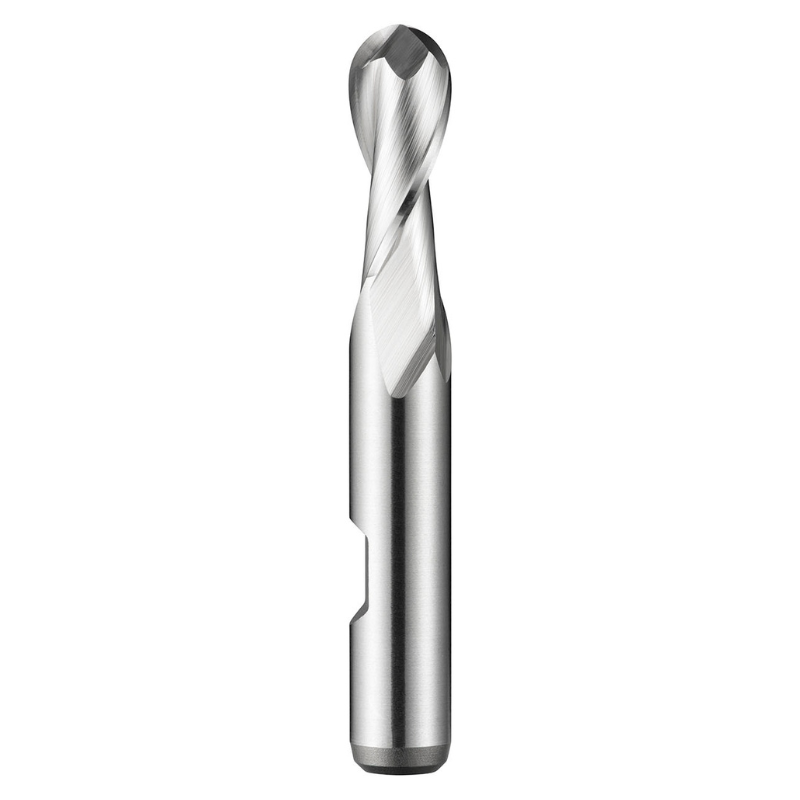

Dormer Pramet C505 16.0mm HSS-E Flatted Shank 2 Flute Ball Nosed Standard Length Slot Drill DIN 844 K

Engineered for precision contouring, the Dormer Pramet C505 16.0 mm ball-nose end mill is a two-flute HSS-E tool designed for copy milling in free‑machining steel and copper alloys. Its cobalt‑based composition and robust geometry deliver accurate radii and smooth finishes in tight pockets and complex profiles.

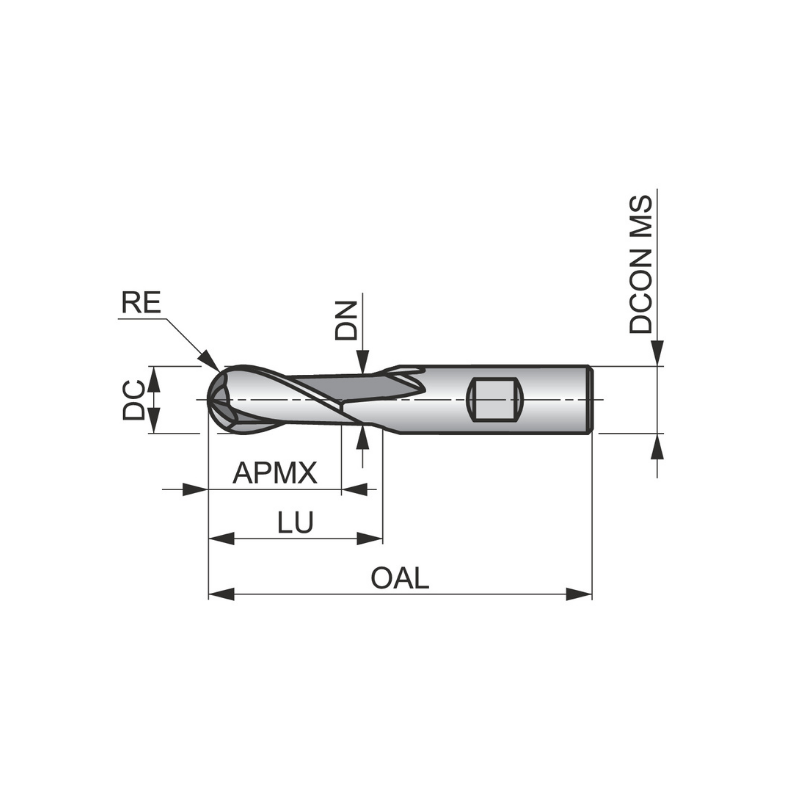

• Diameter: 16.0 mm
• Flutes: 2
• Length of Cut: 32.0 mm
• Overall Length: 92.0 mm
• Reach with Neck Relief: 43.5 mm
• Radius: 8.0 mm full profile radius
• Shank: Weldon, 16 mm
• Material: HSS‑E cobalt‑based with bright finish
• Helix Angle: 30°
• Rake Angle: 12°
• Standard: DIN 844 K
• Application: Copy milling in free‑machining steel and copper or copper alloys

This tool excels at creating precise contour details and smooth transitions with reliable rigidity in shallow to deep pockets. The 2‑flute design facilitates efficient chip evacuation in softer metals, helping maintain a clean cut and steady finishes. The Weldon 16 mm shank provides secure seating in collets and holders, while the long reach and neck relief enable access to features deep within parts without sacrificing rigidity. With a 30° helix and a 12° rake, it delivers consistent cutting action, good surface finish, and predictable performance during copy milling tasks.
