Dormer Pramet C60 3/16 Inch HSS Double Ended Flatted Shank 2 Flute Slot Drill Regular Length

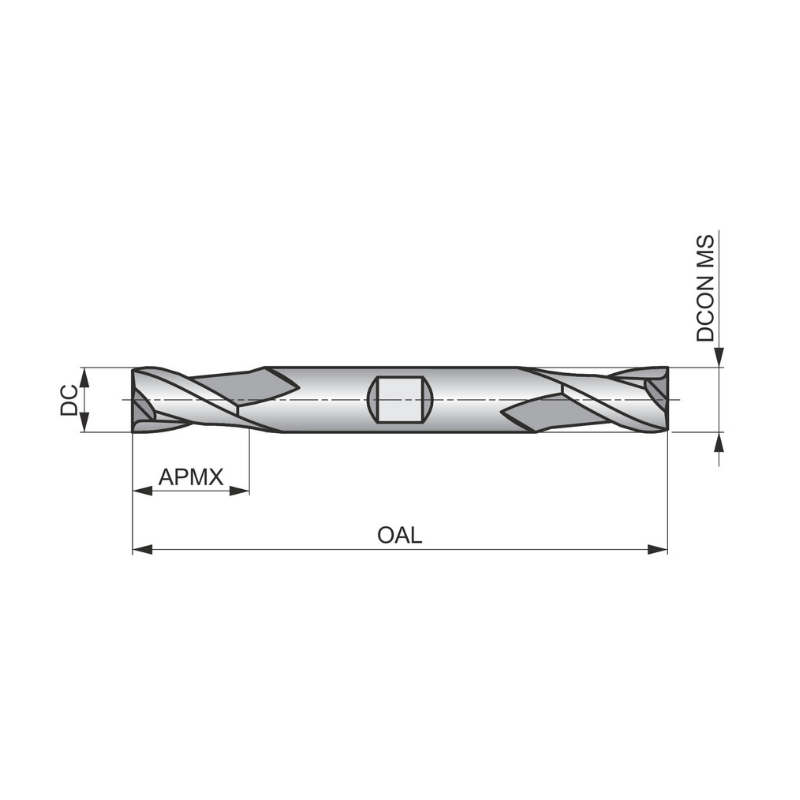

| Cutter Diameter | 3/16 |
| Flute Length | 82.55 |
| Number of Flutes | 2 |
| Overall Length | 82.55 |
| Shank Diameter | 9.53 |
Learn more about Klarna

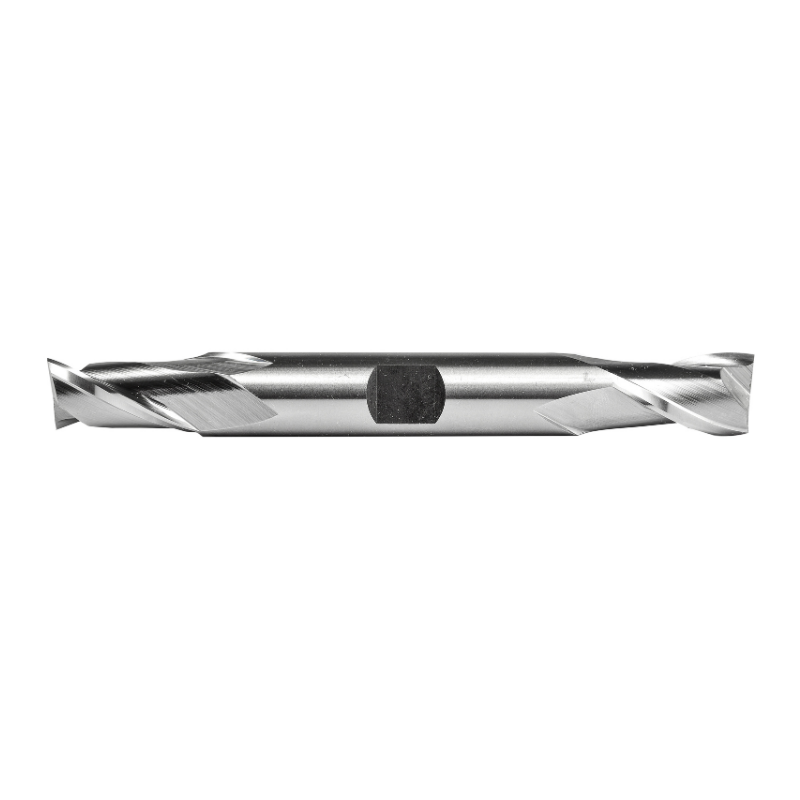

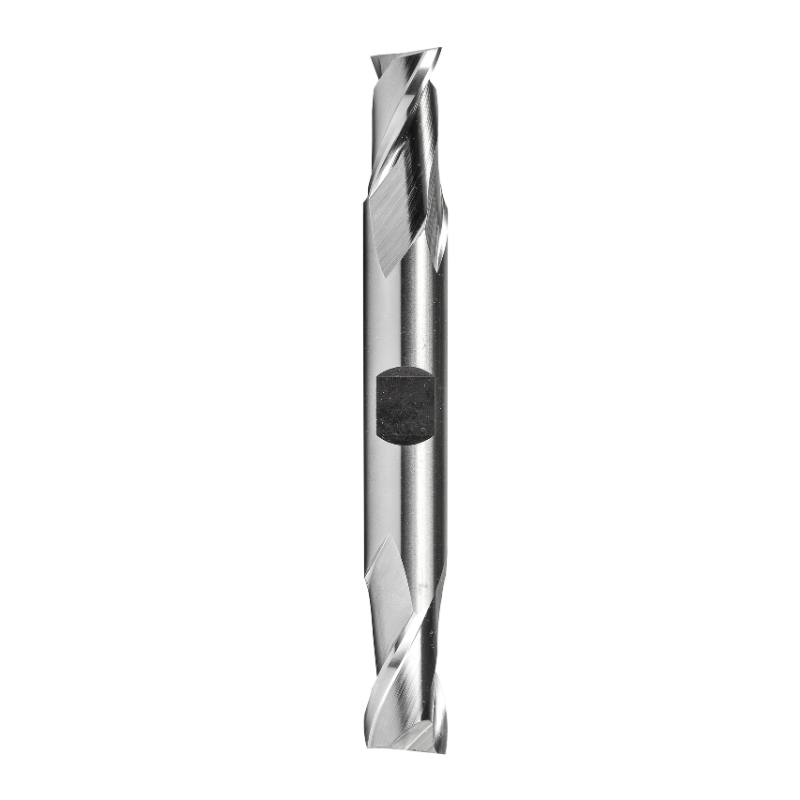

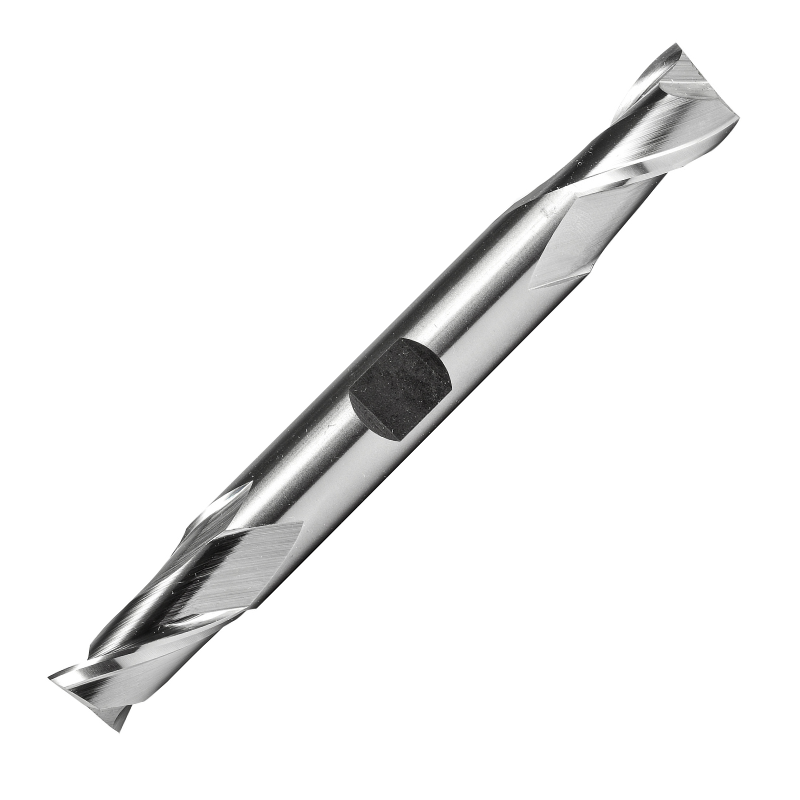

The Dormer Pramet C60 3/16 Inch HSS Double Ended Flatted Shank 2 Flute Slot Drill is a versatile regular-length end mill designed for shoulder milling, slot milling and ramping in free-machining steel. With two usable ends and a robust HSS body, it delivers dependable cutting performance across a range of machining tasks.
- Diameter: 3/16" (0.1875")
- Flutes: 2 flutes
- Length of cut: 7/16" (0.4375")
- Overall length: 3-1/4" (3.25")
- Shank: 3/8" Weldon shank
- Material / finish: High-speed steel (HSS) with bright finish
- Helix angle: 30° for efficient chip evacuation
- End configuration: Double-ended with flatted shank for secure clamping
- Standards: ANSI standard
- Primary applications: Shoulder milling, slot milling, and ramping in free machining steel
This drill-style end mill is built for reliability in everyday machining work. The 30° helix helps produce smooth cuts and effective chip removal, while the two cutting edges on a single tool maximize productive life by allowing a second cutting end to be used once the first is worn. The 3/8" Weldon shank provides solid engagement in collets or chucks, reducing runout and improving finish consistency. Ideal for shops seeking a durable, repeatable solution for precision milling in soft to moderately hard steels.
| Cutter Diameter | 3/16 |
| Flute Length | 82.55 |
| Number of Flutes | 2 |
| Overall Length | 82.55 |
| Shank Diameter | 9.53 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Dormer Pramet C60 HSS Double Ended Flatted Shank 2 Flute Slot Drills Regular Length
View full collection →You are viewing DOR-C6003/16. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Flute Length | Number of Flutes | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| DOR-C6001/8 | 1/8 | 77.79 | 2 | 77.79 | 9.53 | £27.03 | 2 days | |
| DOR-C6005/32 | 5/32 | 79.38 | 2 | 79.38 | 9.53 | £27.48 | 2 days | |
| DOR-C6003/16 Viewing | 3/16 | 82.55 | 2 | 82.55 | 9.53 | £26.37 | 2 days | |
| DOR-C6001/4 | 1/4 | 85.73 | 2 | 85.73 | 9.53 | £26.37 | 2 days | |
| DOR-C6009/32 | 9/32 | 85.73 | 2 | 85.73 | 9.53 | £27.48 | 2 days | |
| DOR-C6005/16 | 5/16 | 88.9 | 2 | 88.9 | 9.53 | £26.37 | 2 days | |
| DOR-C6003/8 | 3/8 | 88.9 | 2 | 88.9 | 9.53 | £26.37 | 2 days | |
| DOR-C60013/32 | 13/32 | 104.78 | 2 | 104.78 | 12.7 | £41.63 | 2 days | |
| DOR-C6007/16 | 7/16 | 104.78 | 2 | 104.78 | 12.7 | £38.90 | 2 days | |
| DOR-C6001/2 | 1/2 | 104.78 | 2 | 104.78 | 12.7 | £41.63 | 2 days | |
| DOR-C6005/8 | 5/8 | 127 | 2 | 127 | 15.88 | £54.96 | 2 days | |
| DOR-C6003/4 | 3/4 | 142.88 | 2 | 142.88 | 19.05 | £67.97 | 2 days |
