Dormer Pramet C60 5/16 Inch HSS Double Ended Flatted Shank 2 Flute Slot Drill Regular Length

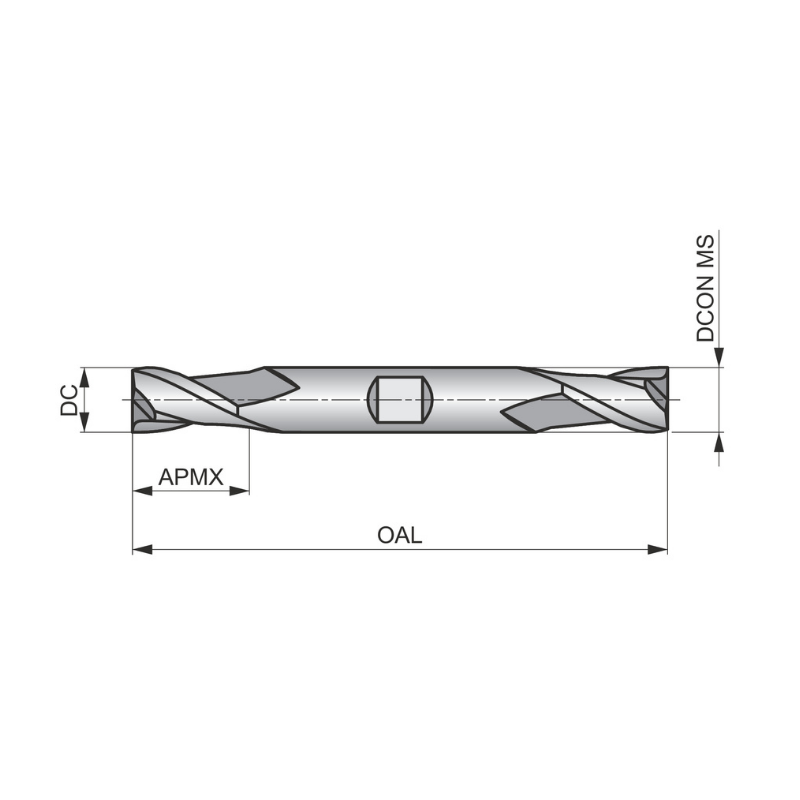

| Cutter Diameter | 5/16 |
| Flute Length | 88.9 |
| Number of Flutes | 2 |
| Overall Length | 88.9 |
| Shank Diameter | 9.53 |
Learn more about Klarna

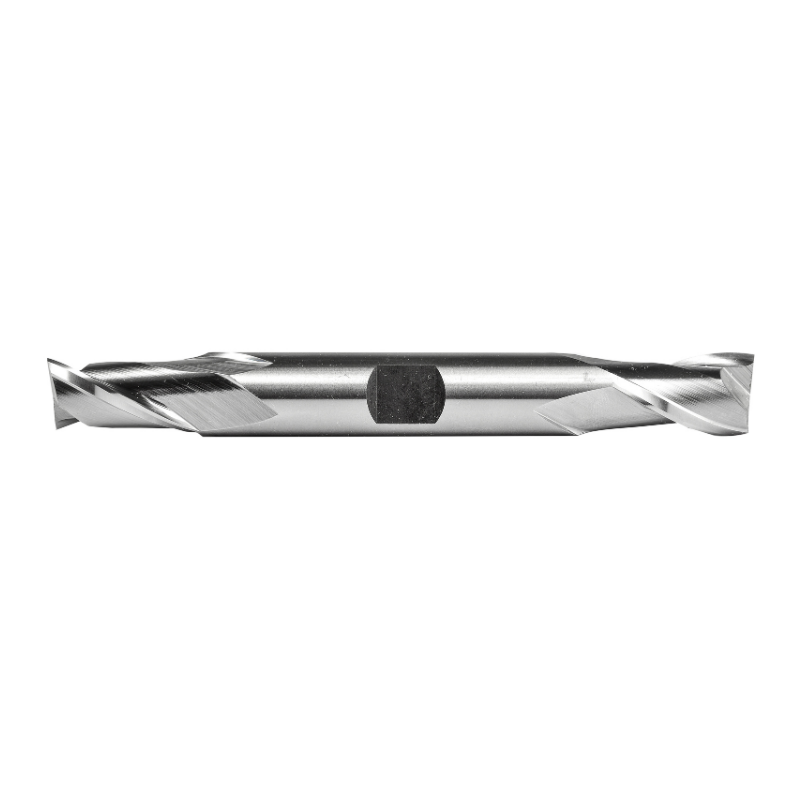

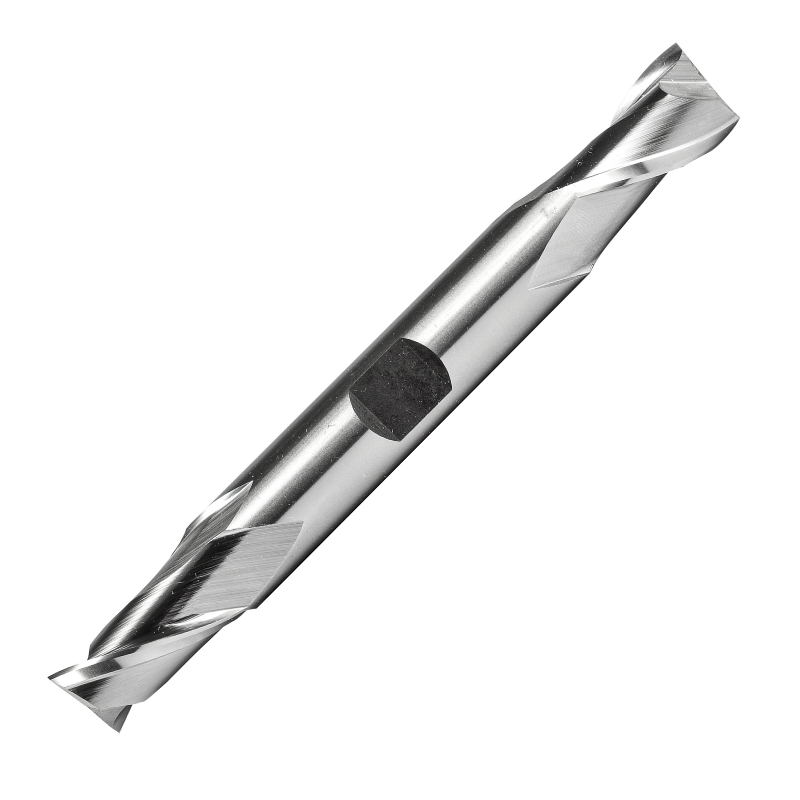

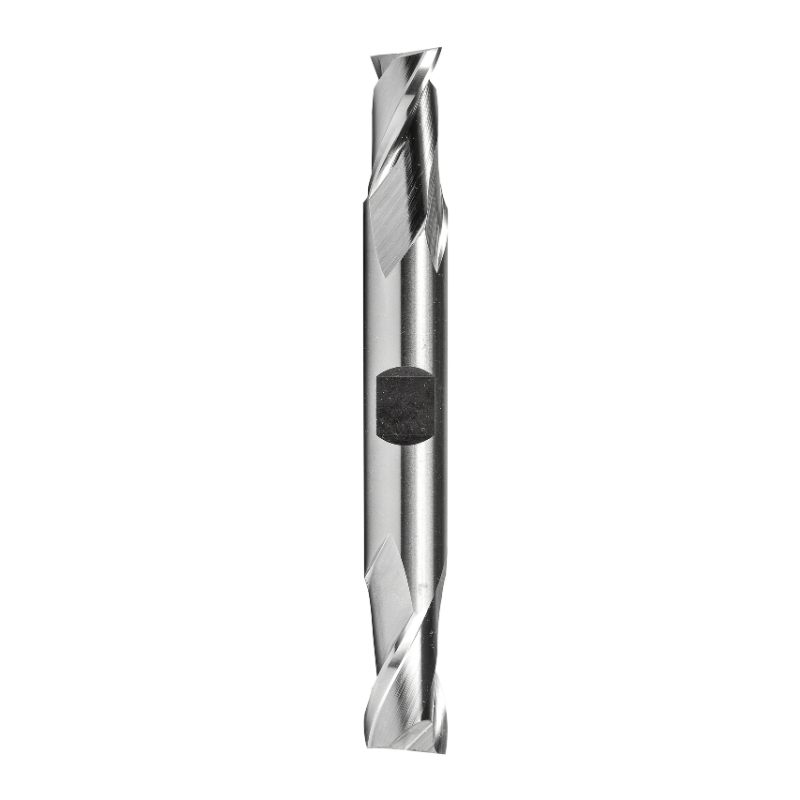

The Dormer Pramet C60 5/16 Inch HSS Double Ended Slot Drill is a versatile two-flute end mill designed for shoulder milling, slot milling, and ramping in free-machining steel. With two cutting ends and a robust 3/8" Weldon shank, it delivers reliable performance in standard milling setups.
- Diameter: 5/16" (0.3125")
- Number of Flutes: 2
- Length of Cut: 9/16" (14.3 mm)
- Overall Length: 3.5" (89 mm)
- Shank: 3/8" Weldon shank
- Material: High-speed steel (HSS) with bright finish
- Helix Angle: 30°
- End Type: Double-ended slot drill
- Applications: Shoulder milling, slot milling, and ramping in free-machining steel
- Standard: ANSI standard dimensions
Two cutting ends maximize tool life and reduce downtime by providing double the usable cutting surfaces. The 30° helix supports efficient chip evacuation and smooth cutting, helping maintain accuracy and surface finish in solid steel workpieces. The HSS bright finish offers solid wear resistance for repeated milling cycles, while the Weldon shank ensures a secure, stable grip in collets and holders. This end mill is well-suited for shop environments performing routine slotting and shoulder work on automotive components, hardware, and fabrication projects where dependable, repeatable results matter.
| Cutter Diameter | 5/16 |
| Flute Length | 88.9 |
| Number of Flutes | 2 |
| Overall Length | 88.9 |
| Shank Diameter | 9.53 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Dormer Pramet C60 HSS Double Ended Flatted Shank 2 Flute Slot Drills Regular Length
View full collection →You are viewing DOR-C6005/16. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Flute Length | Number of Flutes | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| DOR-C6001/8 | 1/8 | 77.79 | 2 | 77.79 | 9.53 | £27.03 | 2 days | |
| DOR-C6005/32 | 5/32 | 79.38 | 2 | 79.38 | 9.53 | £27.48 | 2 days | |
| DOR-C6003/16 | 3/16 | 82.55 | 2 | 82.55 | 9.53 | £26.37 | 2 days | |
| DOR-C6001/4 | 1/4 | 85.73 | 2 | 85.73 | 9.53 | £26.37 | 2 days | |
| DOR-C6009/32 | 9/32 | 85.73 | 2 | 85.73 | 9.53 | £27.48 | 2 days | |
| DOR-C6005/16 Viewing | 5/16 | 88.9 | 2 | 88.9 | 9.53 | £26.37 | 2 days | |
| DOR-C6003/8 | 3/8 | 88.9 | 2 | 88.9 | 9.53 | £26.37 | 2 days | |
| DOR-C60013/32 | 13/32 | 104.78 | 2 | 104.78 | 12.7 | £41.63 | 2 days | |
| DOR-C6007/16 | 7/16 | 104.78 | 2 | 104.78 | 12.7 | £38.90 | 2 days | |
| DOR-C6001/2 | 1/2 | 104.78 | 2 | 104.78 | 12.7 | £41.63 | 2 days | |
| DOR-C6005/8 | 5/8 | 127 | 2 | 127 | 15.88 | £54.96 | 2 days | |
| DOR-C6003/4 | 3/4 | 142.88 | 2 | 142.88 | 19.05 | £67.97 | 2 days |
