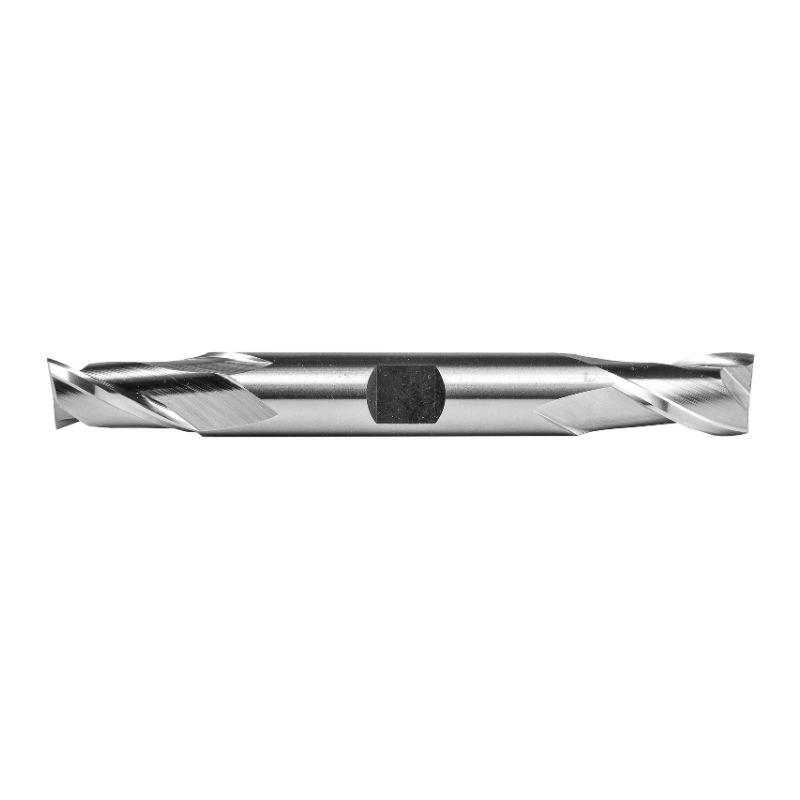

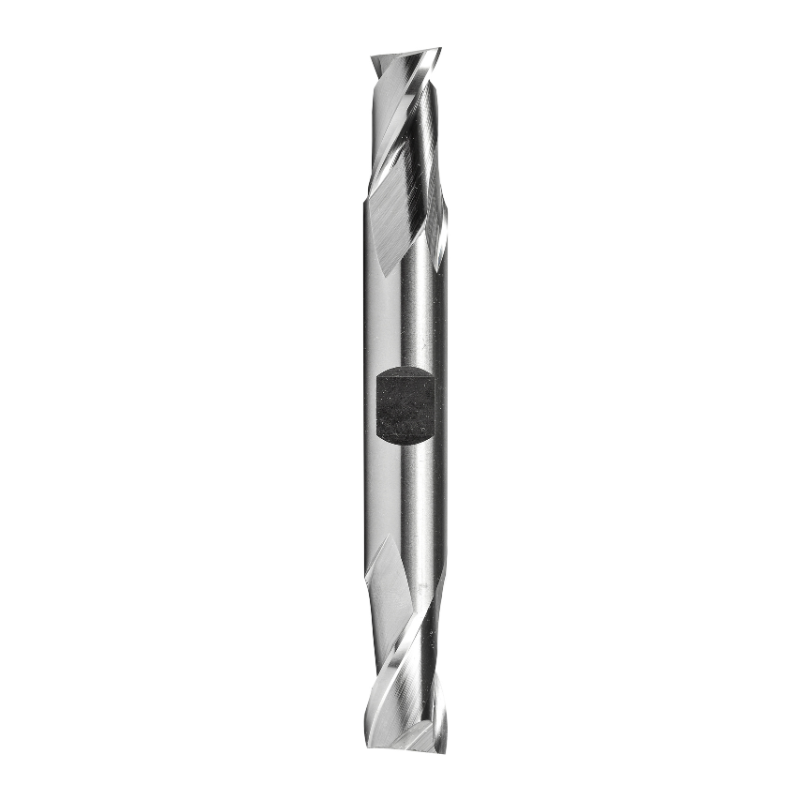

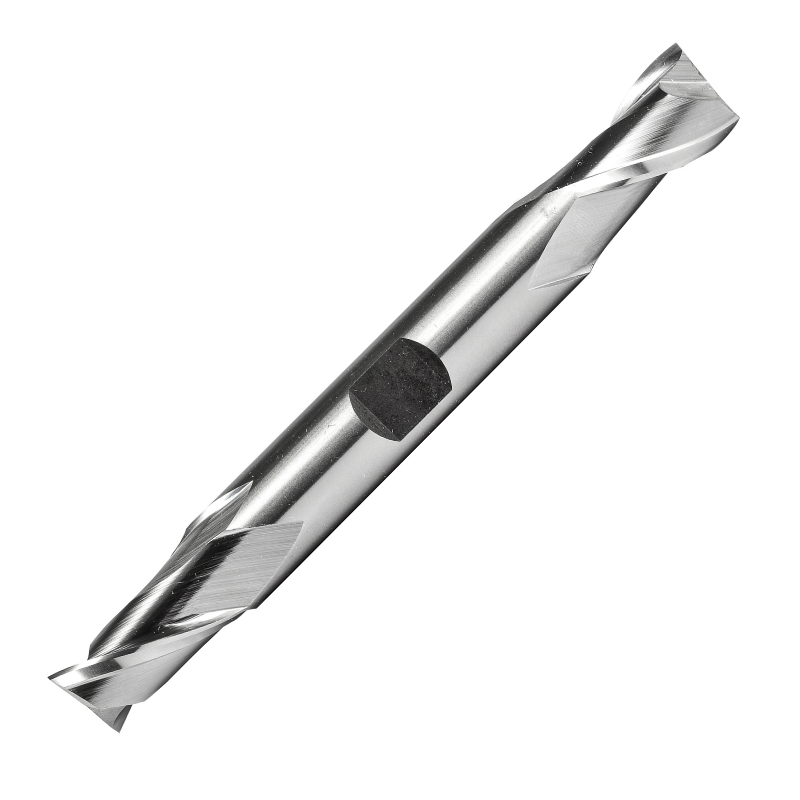

Dormer Pramet C60 1/2 Inch HSS Double Ended Flatted Shank 2 Flute Slot Drill Regular Length

Engineered for precision in slot and shoulder milling, the Dormer Pramet C60 1/2 Inch HSS Double Ended Flatted Shank 2 Flute Slot Drill is built to deliver reliable cuts in free-machining steel. With two usable ends and a robust HSS bright finish, this regular-length drill ensures consistent performance across multiple jobs.

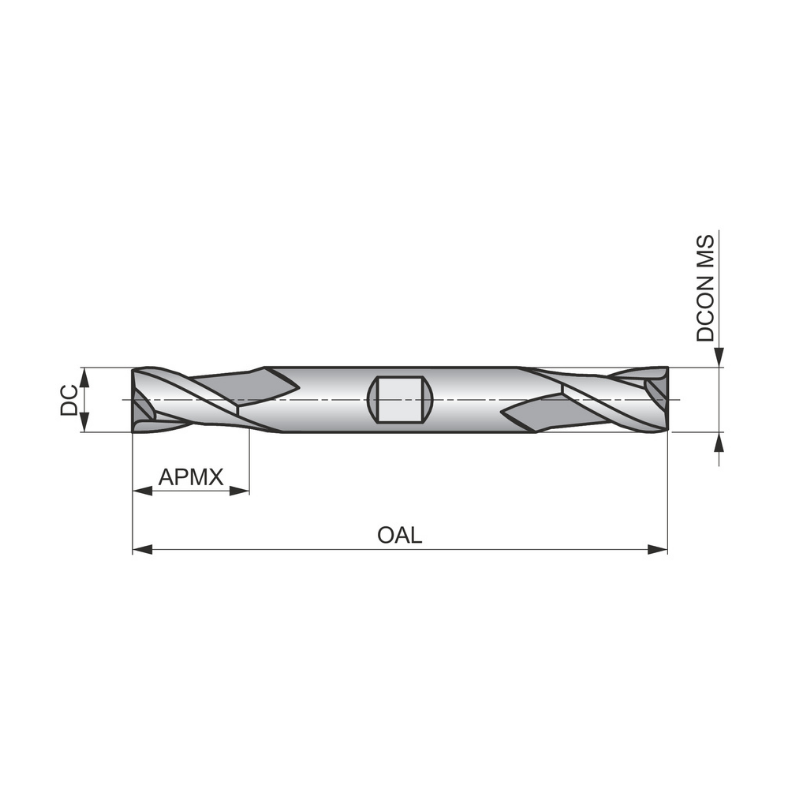

• Diameter: 1/2" (12.7 mm)
• Length of Cut: 13/16" (0.8125")
• Overall Length: 4-1/8" (4.125")
• Shank: 1/2" Weldon shank for secure, repeatable clamping
• Material & Finish: HSS with bright finish for durability and smooth cutting
• Flutes: 2-flute design optimized for slot and shoulder milling
• Helix Angle: 30° to promote efficient chip evacuation and smooth ramping
• End Mill Type: Double-ended slot drill with two cutting ends
• Standards: ANSI standard dimensions for compatibility with common tooling
• Typical Applications: Shoulder milling, slot milling, and ramping in free-machining steel

This tool is designed to maximize uptime in production and job-shop environments. The two cutting ends give you extended life between indexings, while the 30° helix and two-flute geometry support clean, consistent slots and shoulders. The Weldon shank ensures a secure grip in standard chucks or collets, and the bright finish helps resist wear during routine cutting speeds. With precise ANSI dimensions, it integrates smoothly into existing setups, making it a dependable choice for detailed slotting and shoulder work in C60-free machining steel.
