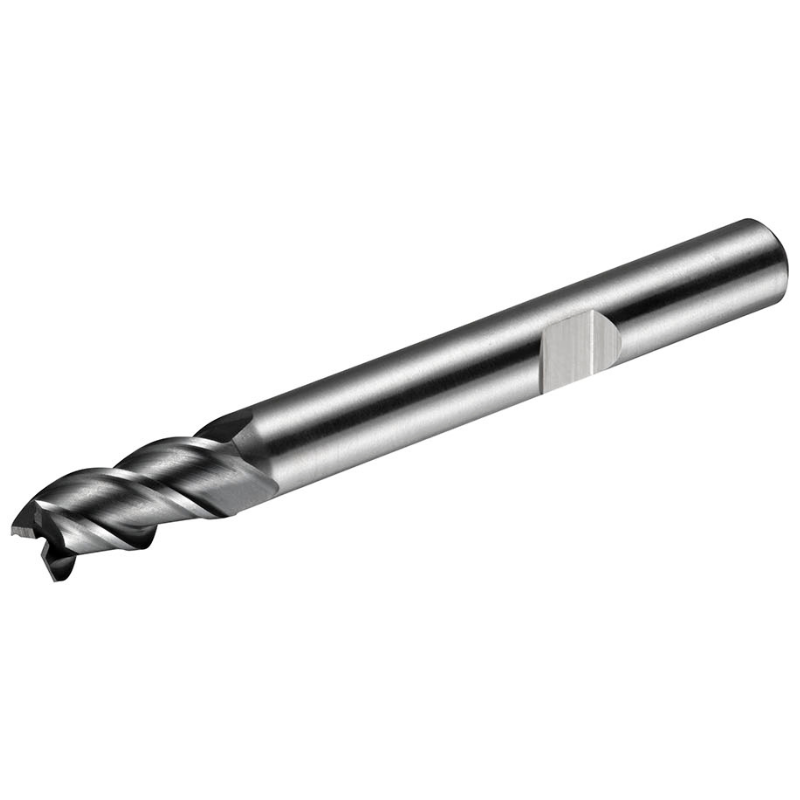

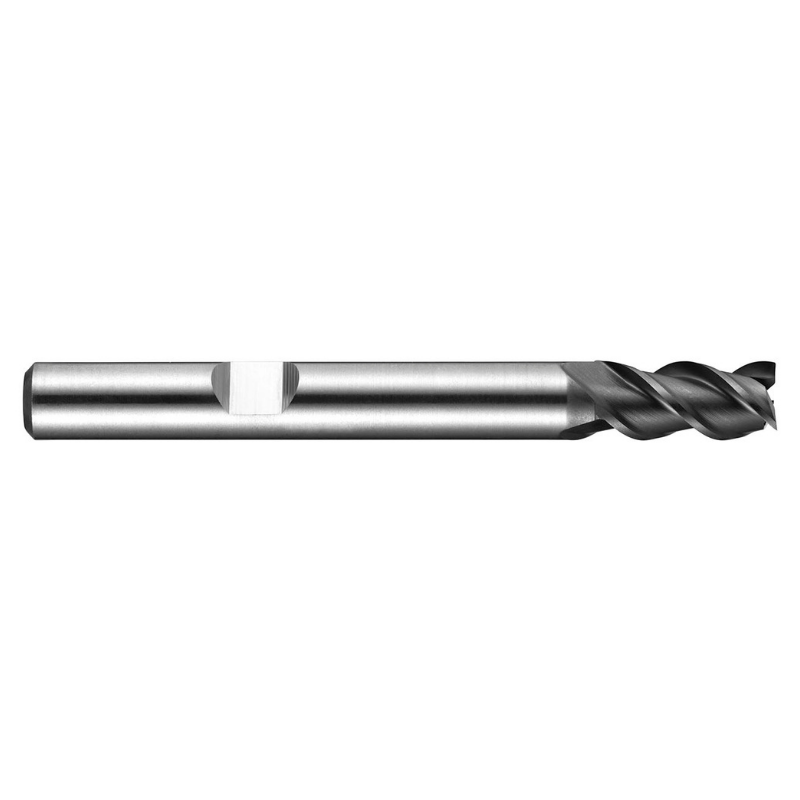

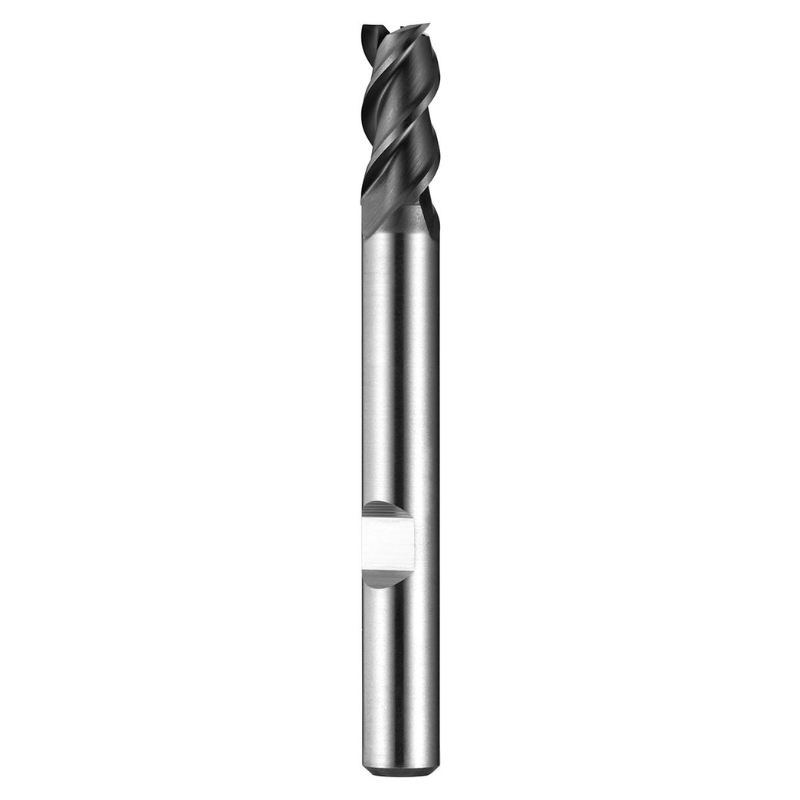

Dormer Pramet C907 10.0mm HSS-E-Powder Metal Alcrona Primax Flatted Shank Multi-Flute Standard Length End Mill DIN 844 K

The Dormer Pramet C907 10.0 mm HSS-E-Powder End Mill is a robust four-flute cutter designed for shoulder milling, slot milling, and ramping in steel and alloy materials. With a DIN 844 K Weldon shank and an Alcrona Primax coating, it delivers reliable performance in demanding CNC operations.

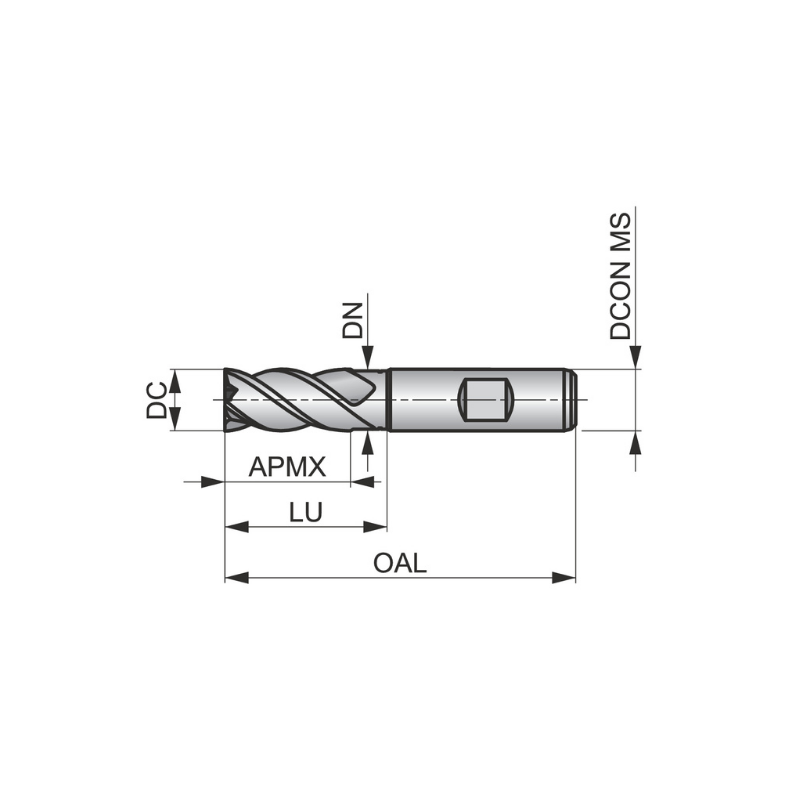

• Diameter: 10.0 mm
• Number of Flutes: 4
• Length of Cut: 22 mm
• Overall Length: 72 mm
• Reach (Neck Relief): 31.5 mm
• Shank: Weldon 10 mm
• Material: Powder metallurgical HSS-E
• Coating: Alcrona Primax
• Helix: 45°
• Rake Angle: 12°
• Standard: DIN 844 K
• Applications: Shoulder milling, slot milling, ramping
• Compatible Materials: Plain carbon steel, alloy steel, tool steel, stainless steel, cast iron, copper or copper alloys, and high-temperature alloys

Built for precision and longevity, this end mill pairs a tough HSS-E substrate with the Alcrona Primax coating to resist wear, heat, and built-up edge. The 4-flute geometry supports steady chip evacuation and a balanced blend of cutting speed and surface finish. The 45° helix and 12° rake angle optimize cutting forces for shoulder and ramp milling, helping you maintain accuracy in tight pockets and along shoulders. The DIN 844 K Weldon shank ensures secure clamping in standard 10 mm toolholders, making it a dependable choice for production runs in steel, stainless steel, cast iron, and copper alloys, as well as high-temperature alloys. In short, this end mill offers consistent performance, strong tool life, and versatility across common milling tasks in both industrial environments and precision shops.
