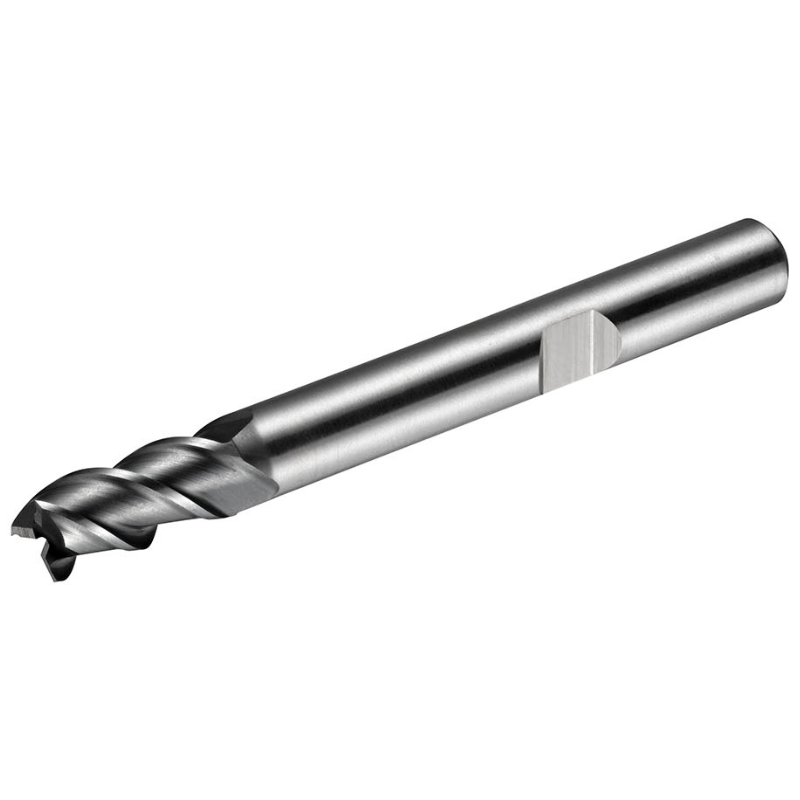

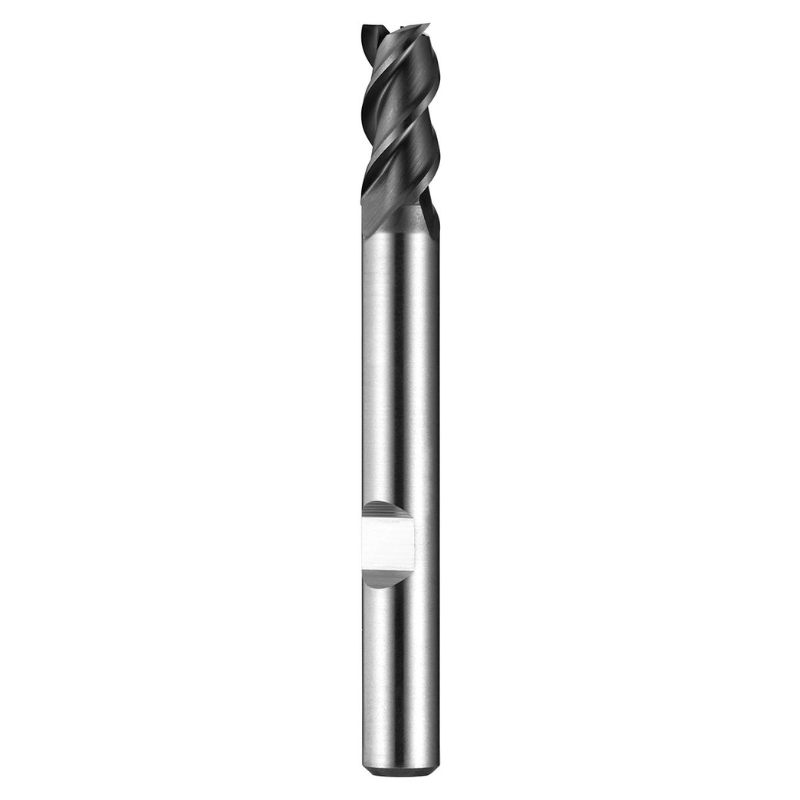

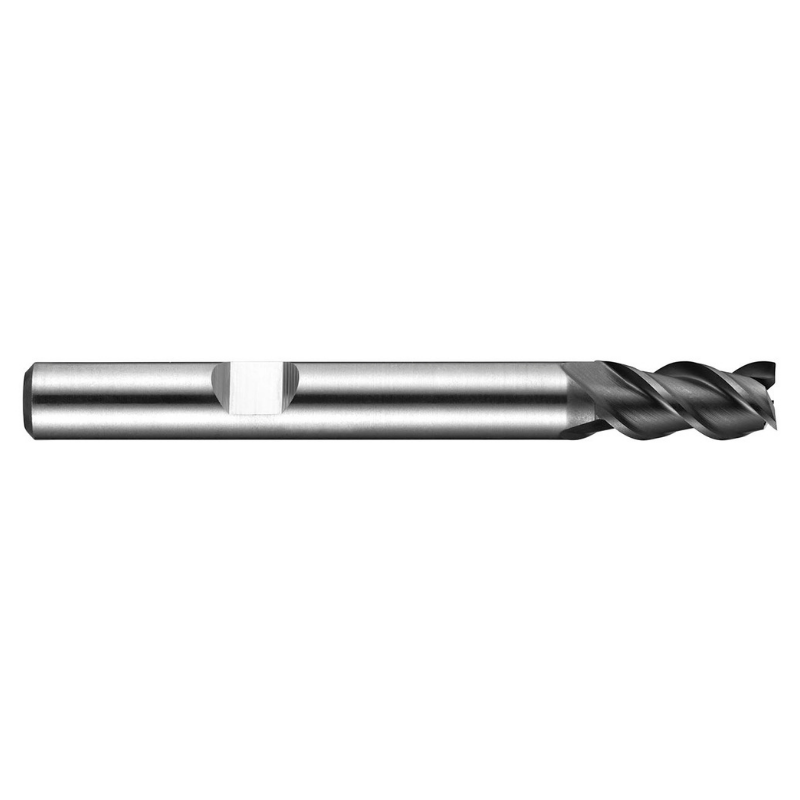

Dormer Pramet C907 8.0mm HSS-E-Powder Metal Alcrona Primax Flatted Shank Multi-Flute Standard Length End Mill DIN 844 K

Engineered for versatile metal removal, the Dormer Pramet C907 8.0 mm end mill delivers reliable performance for shoulder milling, slot milling, and ramping in a wide range of steels and non-ferrous materials. Built as a compact, short-series tool, it pairs a powder-metallurgical HSS-E core with an Alcrona Primax coating to maximise wear resistance and tool life.

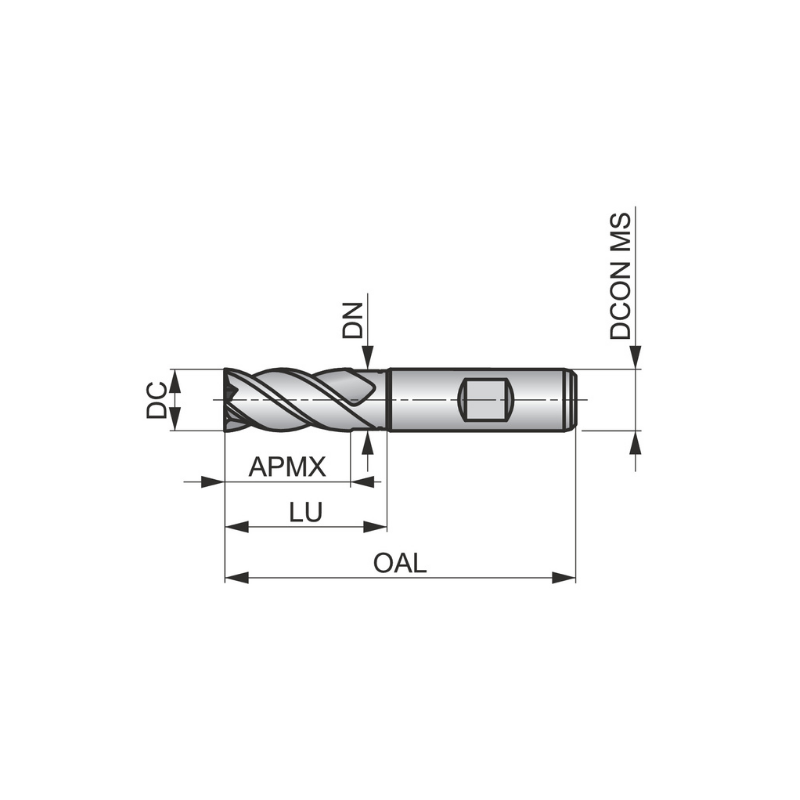

• Diameter: 8 mm
• Length of Cut: 19 mm
• Overall Length: 69 mm
• Shank: Weldon, 10 mm
• Material & Coating: Powder-metallurgical HSS-E with Alcrona Primax coating
• Flutes: 4-flute design
• Helix: 45° helix for efficient chip evacuation
• Rake Angle: 12° rake angle for shoulder milling
• Standards: DIN 844 K compliant
• Applications: Shoulder milling, slot milling, and ramping in plain carbon steel, alloy steel, tool steel, stainless steel, cast iron, copper/copper alloys, and high-temperature alloys

This end mill is designed to deliver consistent, precise results in challenging materials. The 4-flute geometry provides a balance between cutting efficiency and rigidity, helping to reduce deflection in medium-depth cuts. The Alcrona Primax coating enhances wear resistance under demanding conditions, while the powder-metallurgical HSS-E core combines toughness with hardness for longer tool life. With DIN 844 K compatibility and a robust Weldon shank, it integrates smoothly into standard milling setups and supports reliable performance across a variety of multi-material jobs.
