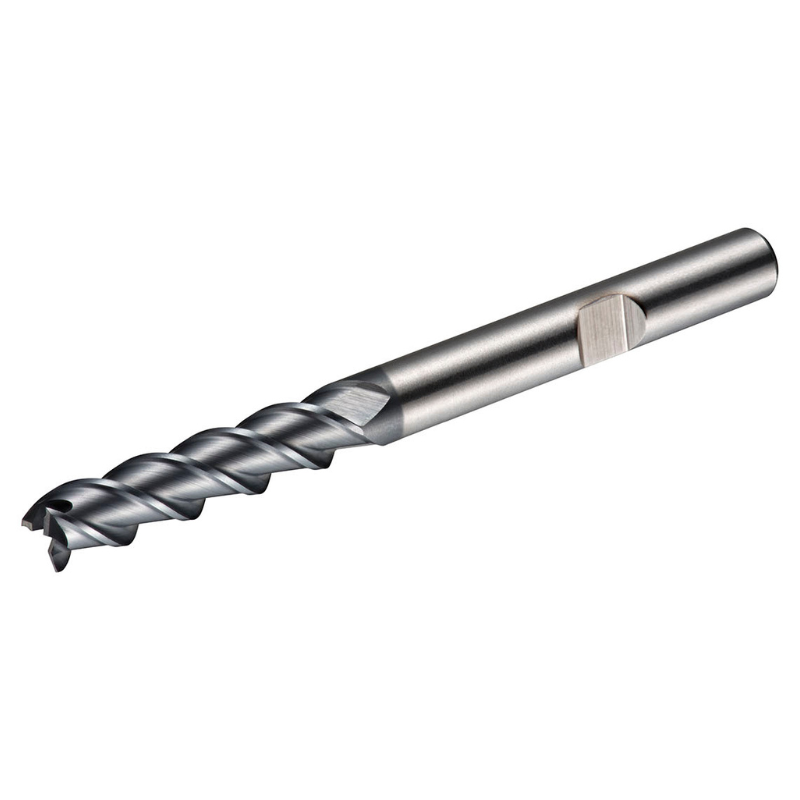

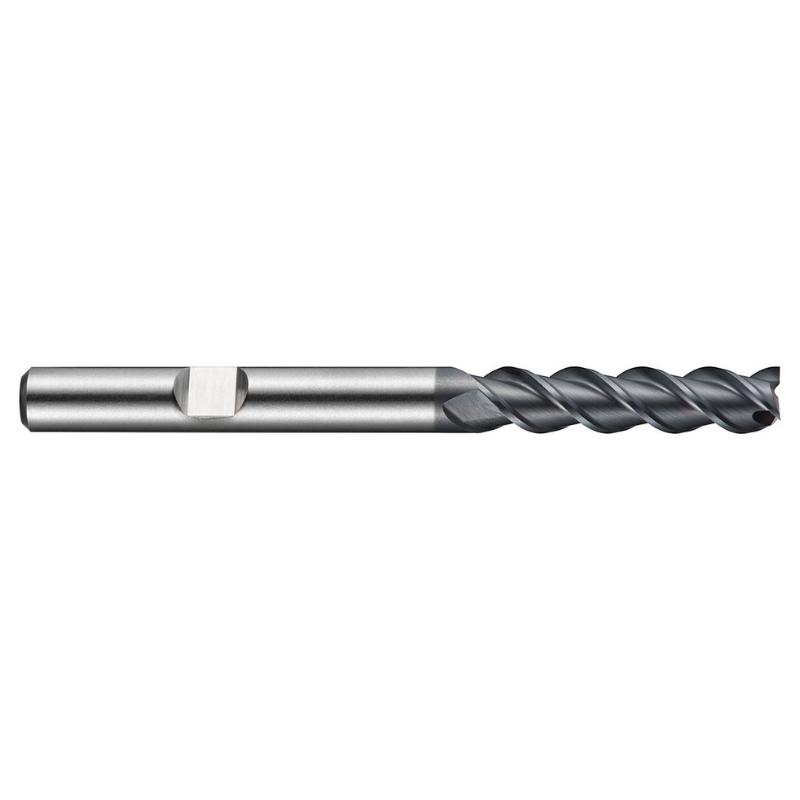

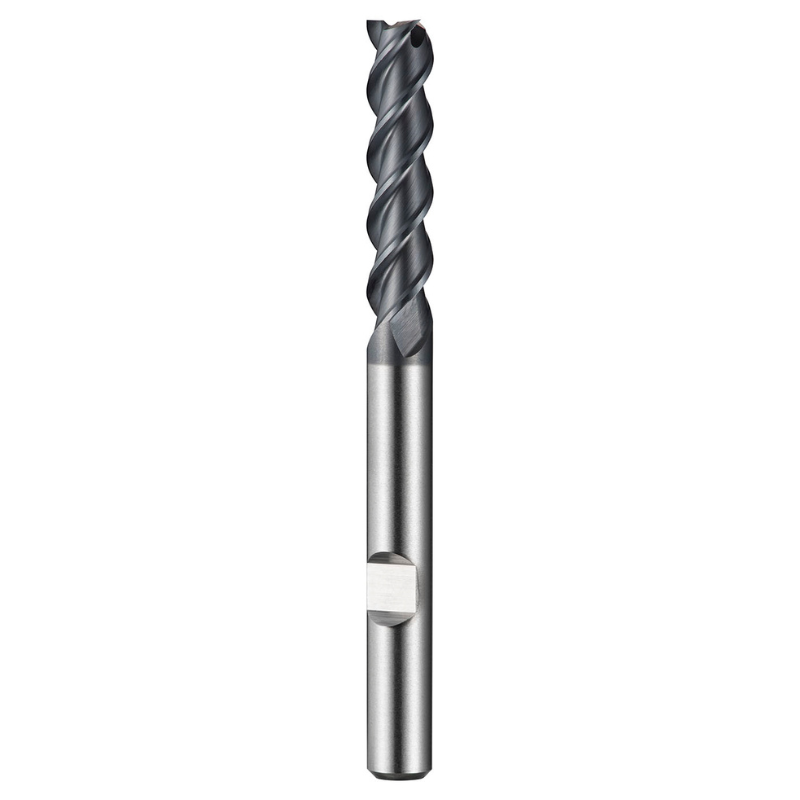

Dormer Pramet C9212.0mm HSS-E-Powder Metal Alcrona Primax Flatted Shank Multi-Flute Long Series End Mill DIN 844 L

The Dormer Pramet 12 mm HSS-E end mill with Alcrona Primax coating is a long-series cutting tool engineered for shoulder and slot milling in a broad range of steels and alloys. Its extended reach and sturdy Weldon shank are designed for deep pockets and precise contouring with dependable performance.

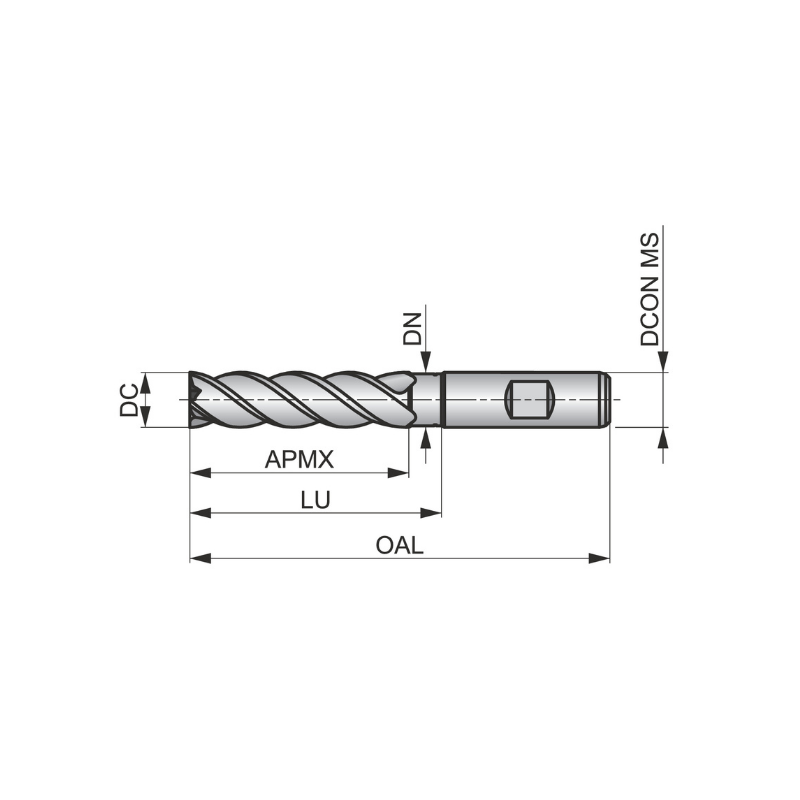

• Diameter: 12 mm
• Flutes: 4-flute design for efficient chip evacuation and stable cutting
• Length of Cut: 53 mm
• Overall Length: 110 mm
• Reach / Neck Relief: 64.5 mm reach with neck relief for deep pockets
• Shank: 12 mm Weldon shank for secure, repeatable clamping
• Material & Coating: Powder-metallurgical HSS-E with Alcrona Primax coating for enhanced wear resistance
• Geometry: 45° helix and 12° rake angle optimized for shoulder milling and slot milling
• Standard: DIN 844 L compatibility
• Applications: Shoulder milling and slot milling in plain carbon steel, alloy steel, tool steel, stainless steel, cast iron, copper or copper alloys, and high-temperature alloys

The tool’s 4-flute geometry promotes efficient chip flow and a smooth finish, even in deeper pockets where tool deflection can be a concern. The 45° helix and 12° rake are tuned to deliver predictable plunging and steady ramping, reducing tool wear and improving surface quality on both roughing and finishing passes. Alcrona Primax coating adds wear resistance and heat tolerance, extending tool life in challenging materials. With DIN 844 L designation, this end mill fits standard holders and collet systems, ensuring reliable performance in busy production environments. Its long-series design is ideal for operations that demand reach without compromising rigidity, making it a versatile choice for engineering shops handling mixed material batches.
