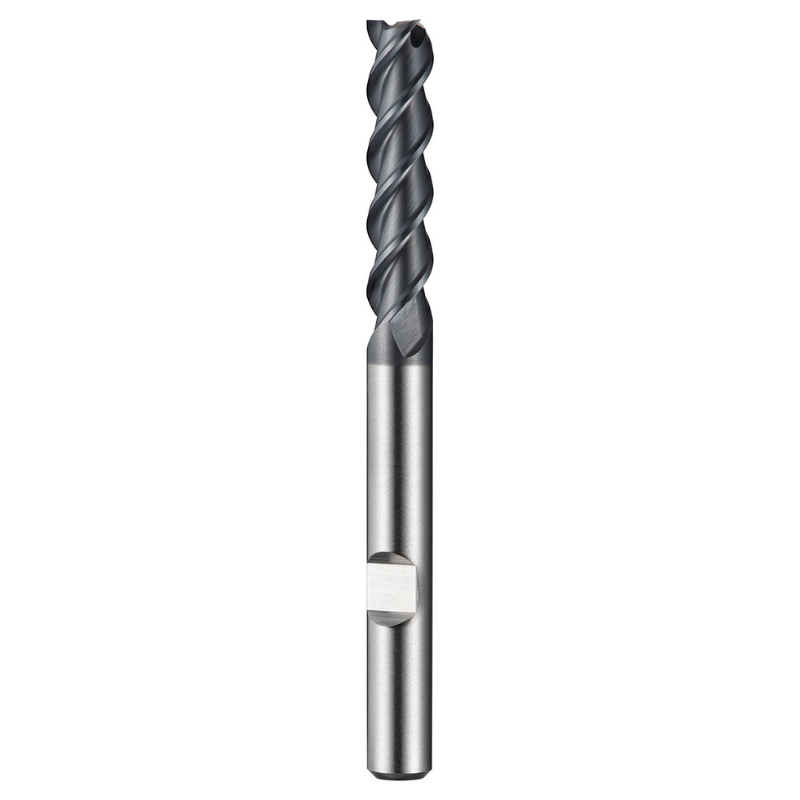

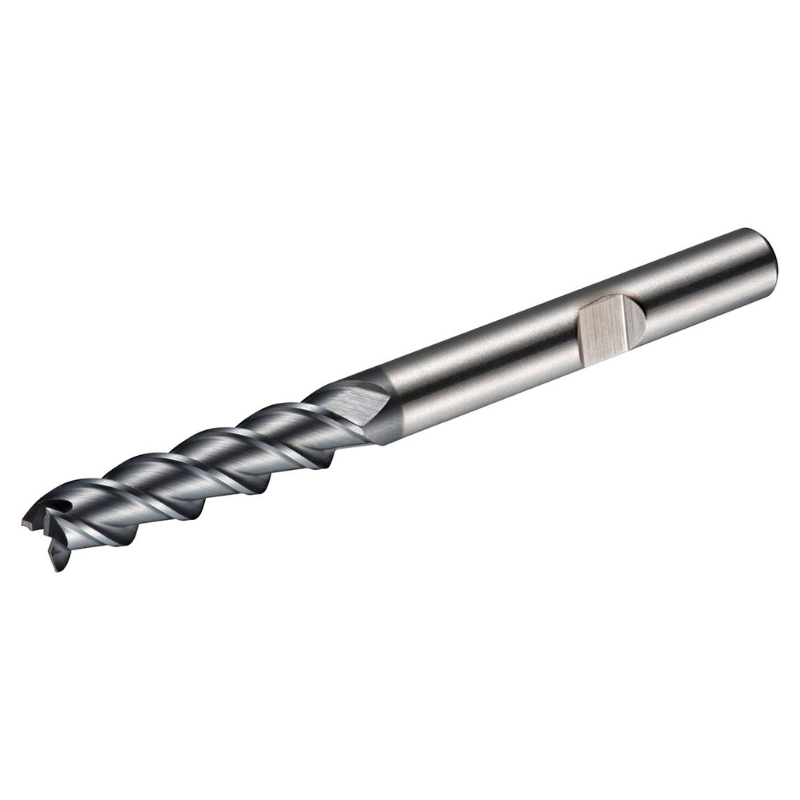

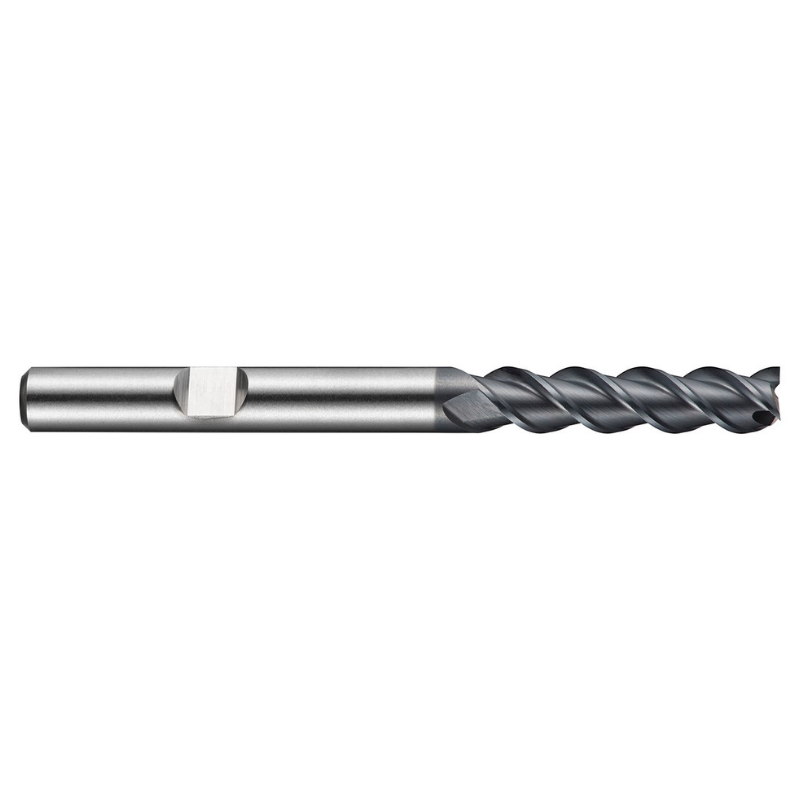

Dormer Pramet C9214.0mm HSS-E-Powder Metal Alcrona Primax Flatted Shank Multi-Flute Long Series End Mill DIN 844 L

Engineered for precision metalworking, the Dormer Pramet 14 mm HSS-E end mill with Alcrona Primax coating is a long-series cutter built for deep shoulder and slot milling. Featuring a 12 mm Weldon shank and a DIN 844 L specification, it delivers dependable performance across a wide range of metals.

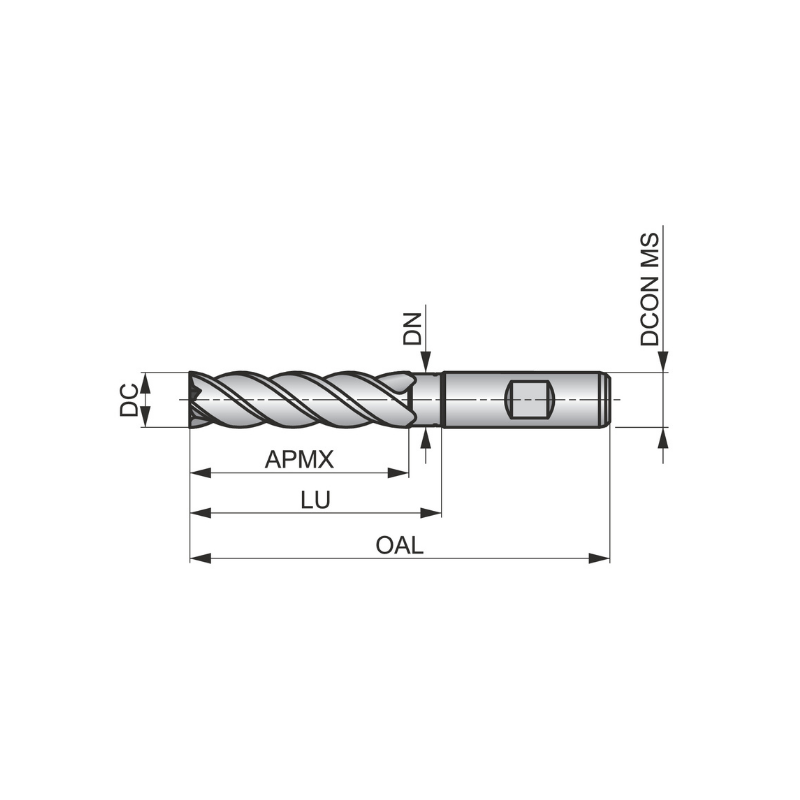

• Diameter: 14 mm
• Length of cut: 53 mm
• Overall length: 110 mm
• Reach with neck relief: 64.5 mm
• Shank: Weldon, 12 mm
• Standard: DIN 844 L
• Material and coating: Powder metallurgical HSS-E with Alcrona Primax coating
• Flutes: 4-flute design
• Helix angle: 45°
• Rake angle: 12°
• Applications: Shoulder milling and slot milling in carbon steel, alloy steel, tool steel, stainless steel, cast iron, copper and alloys, and high-temperature alloys

With its extended reach and neck relief, this end mill enables deeper pockets and longer shoulders without sacrificing rigidity. The Alcrona Primax coating reduces wear and heat buildup, helping to extend tool life and sustain productivity on tough materials. The 45° helix promotes efficient chip evacuation and smooth cutting, while the 12° rake angle enhances shoulder milling accuracy and minimizes rubbing on the workpiece. The Weldon 12 mm shank ensures a secure, repeatable grip in standard toolholding systems for reliable performance. Ideal for mixed-material shops, this cutter handles a broad spectrum of steels, cast iron, and copper alloys with confidence.
