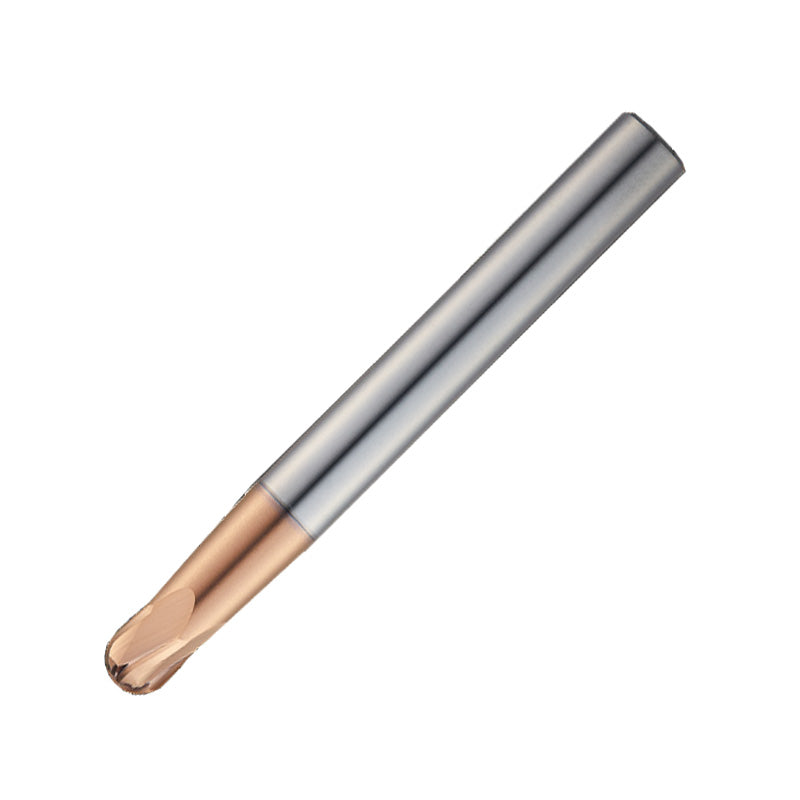

Widin Carbide End Mill - 4 Flute Tapered Neck For Finishing Mold & Die - 2.5mm x2.5

The Widin Carbide End Mill is a precision finishing tool designed for mold and die machining. With a four-flute configuration and a tapered neck, it delivers controlled material removal and consistent surface finishes in complex cavities and cores.

Engineered to machine materials as hard as HRc70, it stands up to demanding environments. The combination of a newly developed raw material and the ALTiN+HH coating provides heat resistance and durability for dry and high-speed cutting while maintaining precise geometry through long tool life.

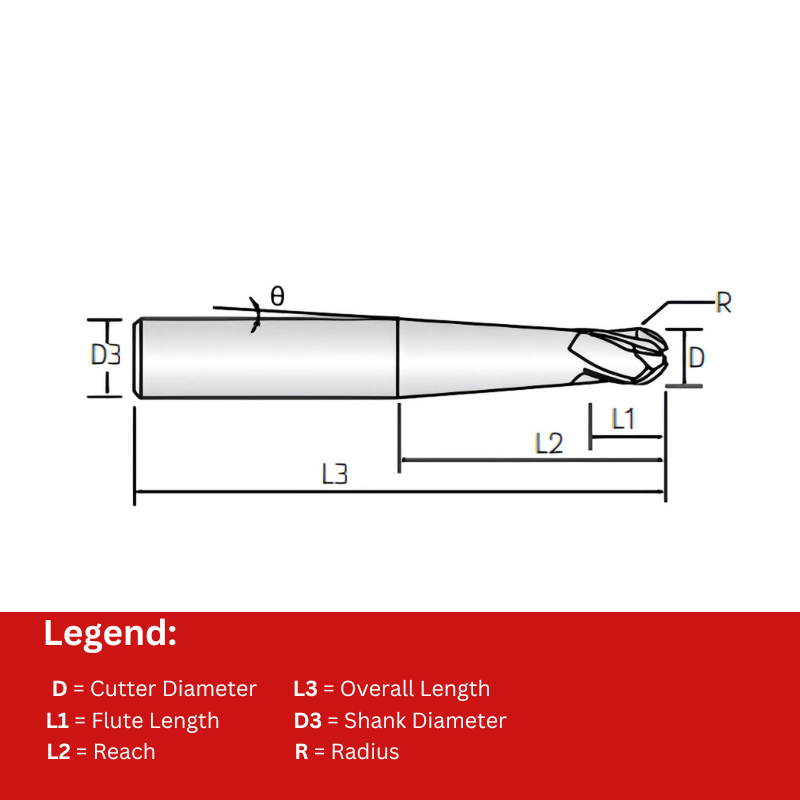

• Tapered Neck for Stability: The tapered neck reduces deflection and chatter during finishing passes, improving dimensional accuracy in tight pockets and deep cavities.
• 4-Flute Finishing Geometry: Four flutes deliver a smooth, refined cut with efficient chip evacuation for cleaner surfaces and tighter tolerances.
• ALTiN+HH Coated Carbide: Hardened carbide with advanced coating offers improved wear resistance and heat management, enabling dry and high-speed cutting with longer tool life.

From initial shaping to final finish, this end mill maintains consistent precision and surface quality while resisting wear. The combination of the tapered neck and robust construction minimizes downtime caused by deflection and vibration, keeping cuts on spec. With its heat-resistant coating and capability to handle hard materials, it supports reliable performance in dry and high-speed cutting, helping you complete molds and dies faster with fewer rework steps and more consistent results across production runs.
