Dormer Pramet A022 1.40 mm HSS TIN STRAIGHT SHANK STUB DRILL DIN/ANSI

Please log in here to access all benefits, including promotional discounts and faster checkouts.

Dormer Pramet A022 1.40 mm HSS TIN STRAIGHT SHANK STUB DRILL DIN/ANSI

Name: Dormer Pramet A022 1.40 mm HSS TIN STRAIGHT SHANK STUB DRILL DIN/ANSI
Brand: Dormer Pramet
SKU: DOR-A0221.4
Price: 2.63 GBP
Availability: InStock

SKU:DOR-A0221.4

Material Compatibility

Specification

Type	Short Series
Drill Diameter	1.40
Flute Length	9
Overall Length	32
Shank Diameter	1.4
Substrate	HSS

View all specifications ↓

£2.63

Prices shown ex. VAT

2 days estimated lead time — subject to availability

View Other Sizes →

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

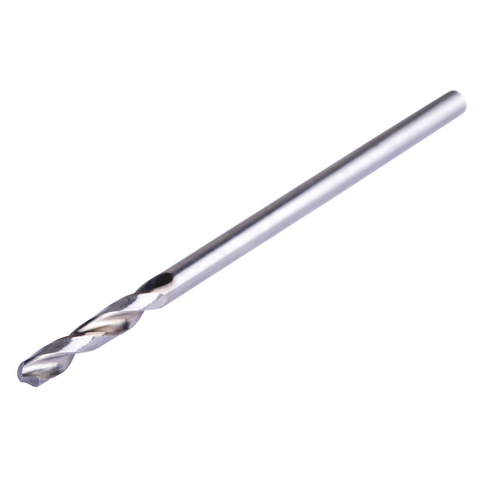

The Dormer Pramet A022 1.40 mm HSS Straight Shank Stub Drill is a compact drilling solution designed for precise, small-diameter holes in metalworking. With a straight shank and a stub length, it delivers steady cutting performance in both handheld drills and machine tools, helping you achieve consistent hole sizes and reliable finishes.

Improved accuracy and finish: Delivers more precise hole diameters and a cleaner surface, reducing the need for rework and post-process deburring.
Premium HSS material for versatility: Engineered to drill a range of metals—including steel, aluminium, and stainless steel—with durable performance and long tool life.
DIN/ANSI straight shank for broad compatibility: Straight shank design and standard DIN/ANSI sizing ensure secure grip and easy use across hand-held and machine tool chucks.

Whether you’re tackling small-diameter holes in a workshop, performing routine maintenance drilling, or supporting precise fabrication projects, this drill helps you work efficiently. The combination of accurate hole production, wide material compatibility, and dependable chuck compatibility supports faster setups, reduces downtime, and delivers consistent results across applications.

Type	Short Series
Drill Diameter	1.40
Flute Length	9
Overall Length	32
Shank Diameter	1.4
Substrate	HSS
Coated	TiN Tipped

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★

Nice experience staff are very helpful and interested...

Staff are very helpful and interested in providing a good service making us the customer feel valued.

Bill

★★★★★

first place we look

honest about stock and prices are competitive.

Phil

★★★★★

Polite and helpful

Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .

Graham

★★★★★

Buying experience

Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.

Jeremy

Full Range: Dormer Pramet A022 HSS TIN STRAIGHT SHANK STUB DRILLS DIN/ANSI

View full collection →

You are viewing DOR-A0221.4. Click any other SKU to view its full details.

Product SKU	Drill Diameter	Flute Length	Overall Length	Shank Diameter	Price	Stock

DOR-A022.5	0.50	3	20	0.5	£4.68	2 days
DOR-A022.6	0.60	3.5	21	0.6	£4.97	2 days
DOR-A022.7	0.70	4.5	23	0.7	£4.42	2 days
DOR-A0221/32	1/32	13	35	0.79	£2.78	2 days
DOR-A022.8	0.80	5	24	0.8	£3.59	2 days
DOR-A022.9	0.90	5.5	25	0.9	£3.77	2 days
DOR-A0221.0	1.00	6	26	1	£2.20	2 days
DOR-A0221.1	1.10	7	28	1.1	£2.64	2 days
DOR-A0223/64	3/64	13	35	1.19	£2.23	2 days
DOR-A0221.2	1.20	8	30	1.2	£2.54	2 days
DOR-A0221.3	1.30	8	30	1.3	£2.51	2 days
DOR-A0221.4 Viewing	1.40	9	32	1.4	£2.63	2 days
DOR-A0221.5	1.50	9	32	1.5	£1.78	2 days
DOR-A0221/16	1/16	16	41	1.59	£1.72	2 days
DOR-A0221.6	1.60	10	34	1.6	£2.31	2 days
DOR-A0221.7	1.70	10	34	1.7	£2.40	2 days
DOR-A0221.8	1.80	11	36	1.8	£2.48	2 days
DOR-A0221.9	1.90	11	36	1.9	£2.28	2 days
DOR-A0225/64	5/64	17	43	1.98	£1.78	2 days
DOR-A0222.0	2.00	12	38	2	£1.54	2 days
DOR-A0222.1	2.10	12	38	2.1	£2.31	2 days
DOR-A0222.2	2.20	13	40	2.2	£2.28	2 days
DOR-A0222.25	2.25	13	40	2.25	£3.33	2 days
DOR-A0222.3	2.30	13	40	2.3	£2.23	2 days
DOR-A0223/32	3/32	20	45	2.38	£1.57	2 days
DOR-A0222.4	2.40	14	43	2.4	£2.33	2 days
DOR-A0222.5	2.50	14	43	2.5	£1.67	2 days
DOR-A0222.6	2.60	14	43	2.6	£2.16	2 days
DOR-A0222.65	2.65	14	43	2.65	£2.45	2 days
DOR-A0222.7	2.70	16	46	2.7	£2.40	2 days
DOR-A0227/64	7/64	22	47	2.78	£1.57	2 days
DOR-A0222.8	2.80	16	46	2.8	£2.40	2 days
DOR-A0222.9	2.90	16	46	2.9	£2.51	2 days
DOR-A0223.0	3.00	16	46	3	£1.64	2 days
DOR-A0223.1	3.10	18	49	3.1	£2.33	2 days
DOR-A0221/8	1/8	23	49	3.18	£1.67	2 days
DOR-A0223.2	3.20	18	49	3.2	£2.33	2 days
DOR-A0223.25	3.25	18	49	3.25	£2.10	2 days
DOR-A0223.3	3.30	18	49	3.3	£1.60	2 days
DOR-A0223.4	3.40	20	52	3.4	£2.78	2 days
DOR-A0223.5	3.50	20	52	3.5	£1.87	2 days
DOR-A0229/64	9/64	25	50	3.57	£1.87	2 days
DOR-A0223.6	3.60	20	52	3.6	£2.64	2 days
DOR-A0223.7	3.70	20	52	3.7	£2.63	2 days
DOR-A0223.8	3.80	22	55	3.8	£2.74	2 days
DOR-A0223.9	3.90	22	55	3.9	£2.84	2 days
DOR-A0225/32	5/32	26	53	3.97	£2.13	2 days
DOR-A0224.0	4.00	22	55	4	£2.13	2 days
DOR-A0224.1	4.10	22	55	4.1	£2.10	2 days
DOR-A0224.2	4.20	22	55	4.2	£2.46	2 days
DOR-A0224.3	4.30	24	58	4.3	£3.33	2 days
DOR-A02211/64	11/64	28	55	4.37	£2.48	2 days
DOR-A0224.4	4.40	24	58	4.4	£3.36	2 days
DOR-A0224.5	4.50	24	58	4.5	£2.48	2 days
DOR-A0224.6	4.60	24	58	4.6	£3.16	2 days
DOR-A0224.7	4.70	24	58	4.7	£3.36	2 days
DOR-A0223/16	3/16	30	57	4.76	£2.48	2 days
DOR-A0224.8	4.80	26	62	4.8	£3.36	2 days
DOR-A0224.9	4.90	26	62	4.9	£2.64	2 days
DOR-A0225.0	5.00	26	62	5	£2.54	2 days
DOR-A0225.1	5.10	26	62	5.1	£4.04	2 days
DOR-A02213/64	13/64	31	58	5.16	£2.77	2 days
DOR-A0225.2	5.20	26	62	5.2	£3.92	2 days
DOR-A0225.3	5.30	26	62	5.3	£4.04	2 days
DOR-A0225.4	5.40	28	66	5.4	£4.30	2 days
DOR-A0225.5	5.50	28	66	5.5	£3.22	2 days
DOR-A0227/32	7/32	33	61	5.56	£3.34	2 days
DOR-A0225.6	5.60	28	66	5.6	£4.27	2 days
DOR-A0225.7	5.70	28	66	5.7	£4.30	2 days
DOR-A0225.8	5.80	28	66	5.8	£4.15	2 days
DOR-A0225.9	5.90	28	66	5.9	£5.24	2 days
DOR-A02215/64	15/64	34	63	5.95	£3.88	2 days
DOR-A0226.0	6.00	28	66	6	£3.16	2 days
DOR-A0226.1	6.10	31	70	6.1	£5.43	2 days
DOR-A0226.2	6.20	31	70	6.2	£5.47	2 days
DOR-A0226.3	6.30	31	70	6.3	£5.47	2 days
DOR-A0221/4	1/4	36	65	6.35	£4.09	2 days
DOR-A0226.4	6.40	31	70	6.4	£5.37	2 days
DOR-A0226.5	6.50	31	70	6.5	£4.15	2 days
DOR-A0226.6	6.60	31	70	6.6	£5.64	2 days
DOR-A0226.7	6.70	31	70	6.7	£5.59	2 days
DOR-A0226.8	6.80	34	74	6.8	£5.87	2 days
DOR-A0226.9	6.90	34	74	6.9	£6.87	2 days
DOR-A0227.0	7.00	34	74	7	£4.42	2 days
DOR-A0227.1	7.10	34	74	7.1	£7.43	2 days
DOR-A0229/32	9/32	40	70	7.14	£4.59	2 days
DOR-A0227.2	7.20	34	74	7.2	£7.37	2 days
DOR-A0227.3	7.30	34	74	7.3	£7.25	2 days
DOR-A0227.4	7.40	34	74	7.4	£7.37	2 days
DOR-A0227.5	7.50	34	74	7.5	£5.24	2 days
DOR-A0227.6	7.60	37	79	7.6	£7.93	2 days
DOR-A0227.7	7.70	37	79	7.7	£8.07	2 days
DOR-A0227.8	7.80	37	79	7.8	£7.78	2 days
DOR-A0227.9	7.90	37	79	7.9	£8.98	2 days
DOR-A0225/16	5/16	43	73	7.94	£5.47	2 days
DOR-A0228.0	8.00	37	79	8	£5.47	2 days
DOR-A0228.1	8.10	37	79	8.1	£9.07	2 days
DOR-A0228.2	8.20	37	79	8.2	£9.47	2 days
DOR-A0228.3	8.30	37	79	8.3	£9.47	2 days
DOR-A0228.4	8.40	37	79	8.4	£9.47	2 days
DOR-A0228.5	8.50	37	79	8.5	£7.19	2 days
DOR-A0228.6	8.60	40	84	8.6	£9.90	2 days
DOR-A0228.7	8.70	40	84	8.7	£9.70	2 days
DOR-A02211/32	11/32	45	78	8.73	£7.66	2 days
DOR-A0228.8	8.80	40	84	8.8	£9.48	2 days
DOR-A0228.9	8.90	40	84	8.9	£10.76	2 days
DOR-A0229.0	9.00	40	84	9	£7.07	2 days
DOR-A0229.1	9.10	40	84	9.1	£11.99	2 days
DOR-A0229.2	9.20	40	84	9.2	£12.63	2 days
DOR-A0229.3	9.30	40	84	9.3	£12.75	2 days
DOR-A0229.4	9.40	40	84	9.4	£11.99	2 days
DOR-A0229.5	9.50	40	84	9.5	£9.38	2 days
DOR-A0223/8	3/8	48	81	9.52	£9.38	2 days
DOR-A0229.6	9.60	43	89	9.6	£12.31	2 days
DOR-A0229.7	9.70	43	89	9.7	£11.99	2 days
DOR-A0229.8	9.80	43	89	9.8	£13.03	2 days
DOR-A0229.9	9.90	43	89	9.9	£13.35	2 days
DOR-A02210.0	10.00	43	89	10	£8.85	2 days
DOR-A02210.1	10.10	43	89	10.1	£13.13	2 days
DOR-A02210.2	10.20	43	89	10.2	£13.13	2 days
DOR-A02210.3	10.30	43	89	10.3	£14.30	2 days
DOR-A02213/32	13/32	51	86	10.32	£9.56	2 days
DOR-A02210.4	10.40	43	89	10.4	£15.58	2 days
DOR-A02210.5	10.50	43	89	10.5	£13.22	2 days
DOR-A02210.6	10.60	43	89	10.6	£15.82	2 days
DOR-A02210.8	10.80	47	95	10.8	£19.29	2 days
DOR-A02211.0	11.00	47	95	11	£12.90	2 days
DOR-A02211.1	11.10	47	95	11.1	£18.13	2 days
DOR-A0227/16	7/16	54	89	11.11	£13.21	2 days
DOR-A02211.2	11.20	47	95	11.2	£22.89	2 days
DOR-A02211.3	11.30	47	95	11.3	£20.37	2 days
DOR-A02211.5	11.50	47	95	11.5	£15.78	2 days
DOR-A02211.7	11.70	47	95	11.7	£21.14	2 days
DOR-A02211.8	11.80	47	95	11.8	£22.06	2 days
DOR-A02211.9	11.90	51	102	11.9	£21.71	2 days
DOR-A02212.0	12.00	51	102	12	£15.12	2 days
DOR-A02212.1	12.10	51	102	12.1	£23.76	2 days
DOR-A02212.2	12.20	51	102	12.2	£22.75	2 days
DOR-A02212.5	12.50	51	102	12.5	£19.70	2 days
DOR-A0221/2	1/2	60	98	12.7	£15.22	2 days
DOR-A02213.0	13.00	51	102	13	£17.42	2 days
DOR-A02213.5	13.50	54	107	13.5	£24.53	2 days
DOR-A02214.0	14.00	54	107	14	£24.26	2 days
DOR-A0229/16	9/16	67	105	14.29	£28.68	2 days
DOR-A02214.5	14.50	56	111	14.5	£27.13	2 days
DOR-A02215.0	15.00	56	111	15	£28.14	2 days
DOR-A02215.5	15.50	58	115	15.5	£32.79	2 days
DOR-A0225/8	5/8	73	111	15.88	£26.90	2 days
